Throttle Body (M/T): Components

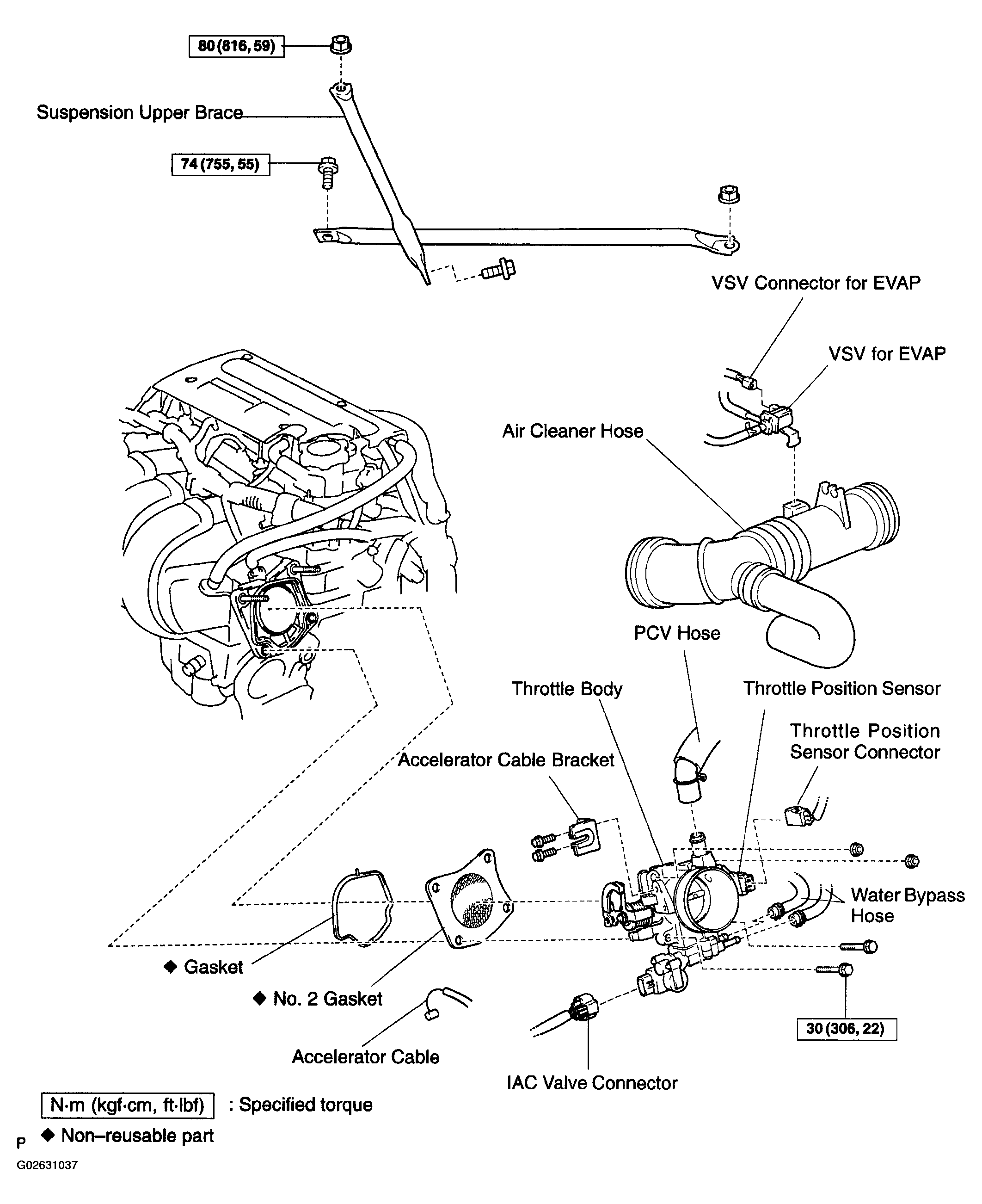

Fig 1: Identifying Throttle Body (M/T) Components
G02631037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
