Engine Control Part 7

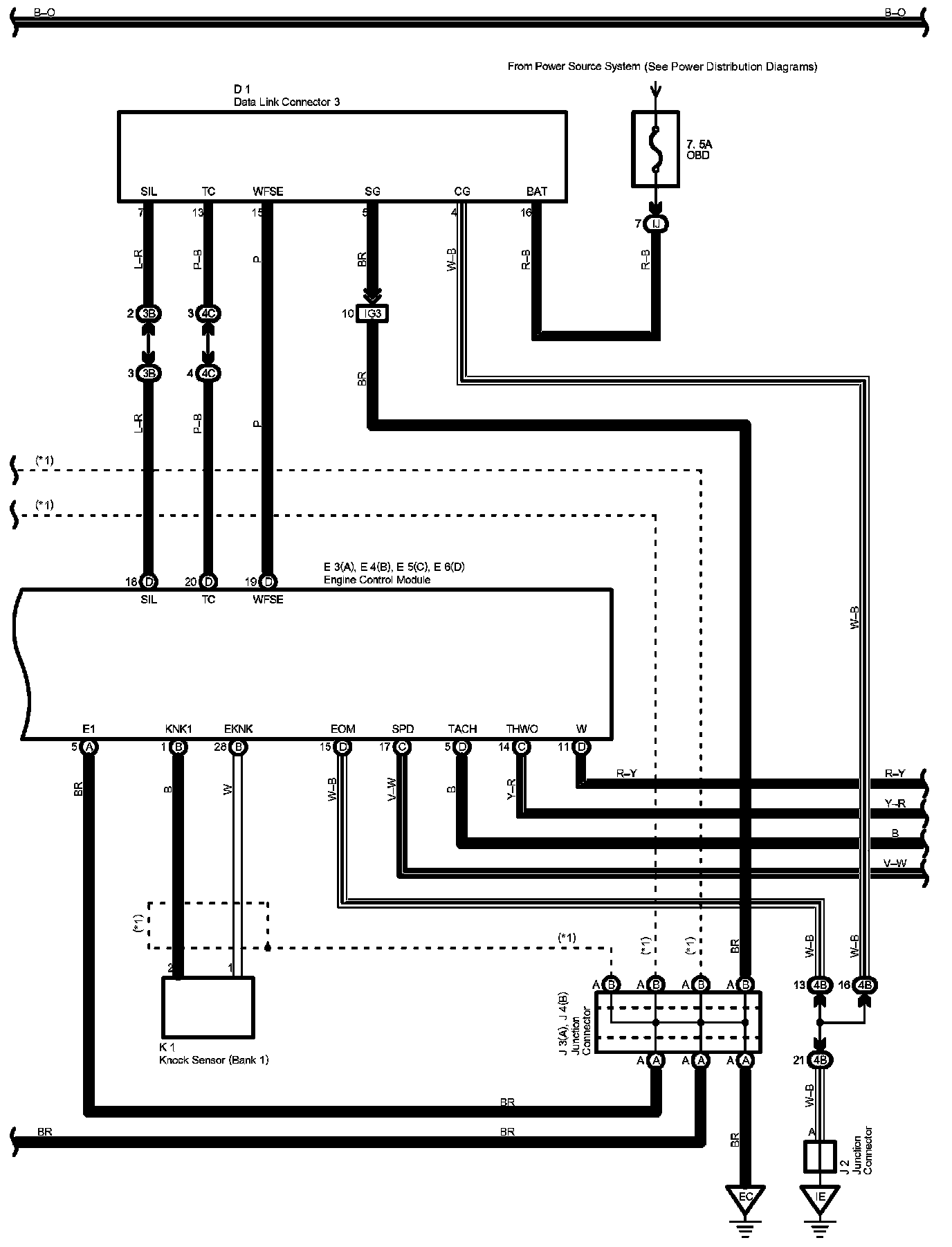

Engine Control For 1ZZ-FE (2WD) Part 7:

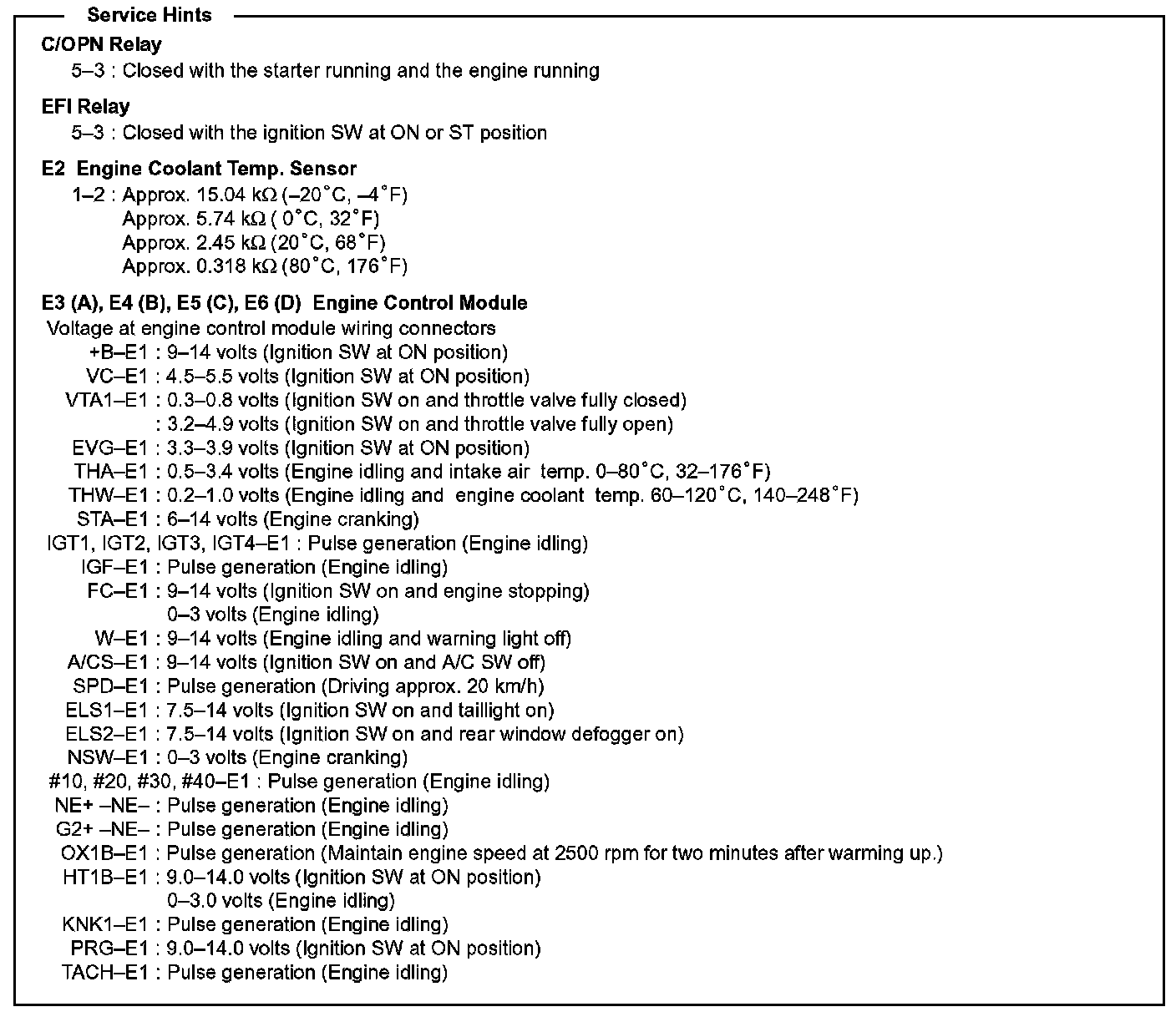

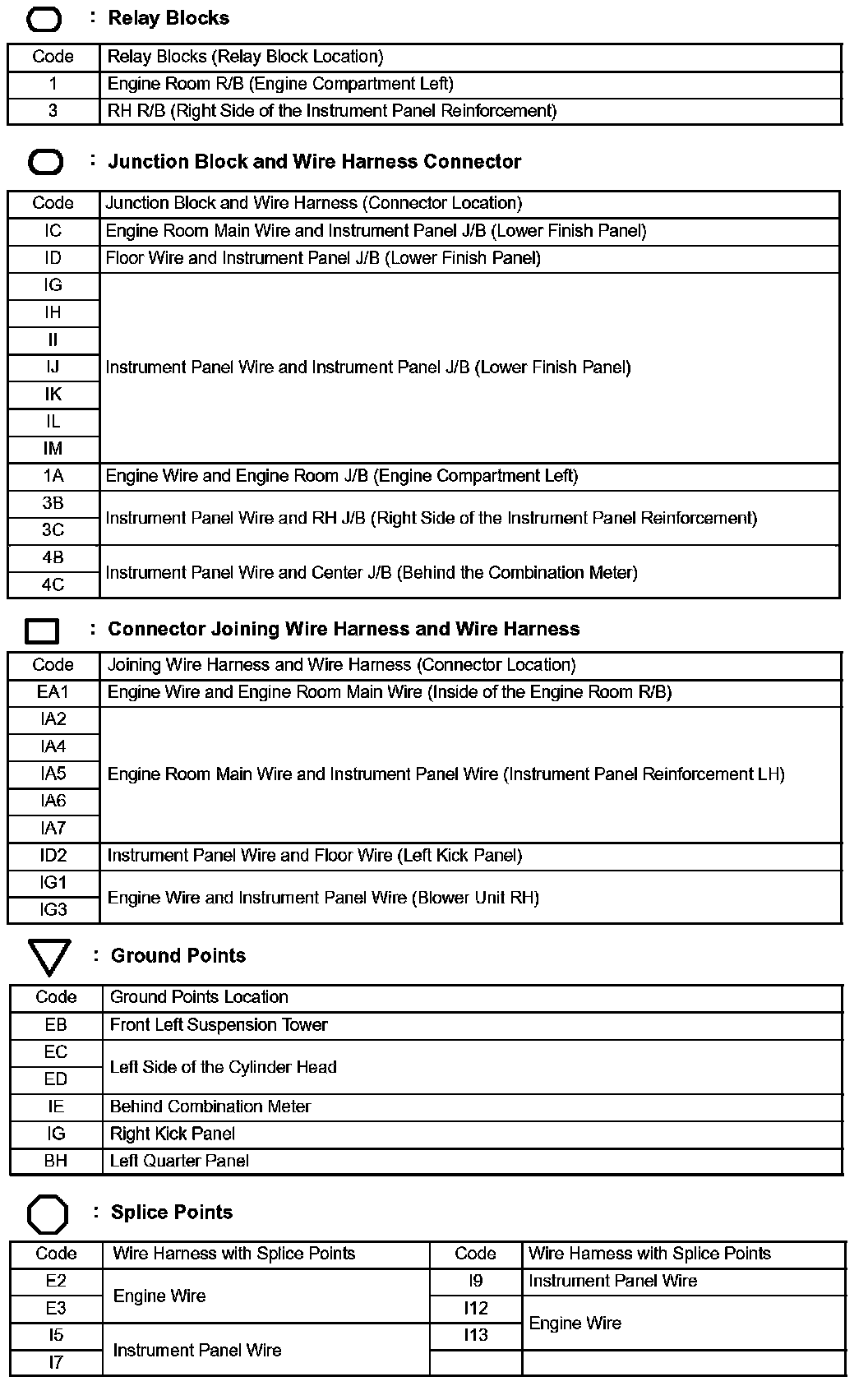

Diagram Legend Part 1:

Diagram Legend Part 2:

Next Diagram Engine Control Part 8

Previous Diagram Engine Control Part 6

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
