Data List/Active Test

HINT:

Using the hand-held tester's DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.

1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the power switch ON (IG).
3. Read the DATA LIST according to the display on the tester.

   Power source control ECU:

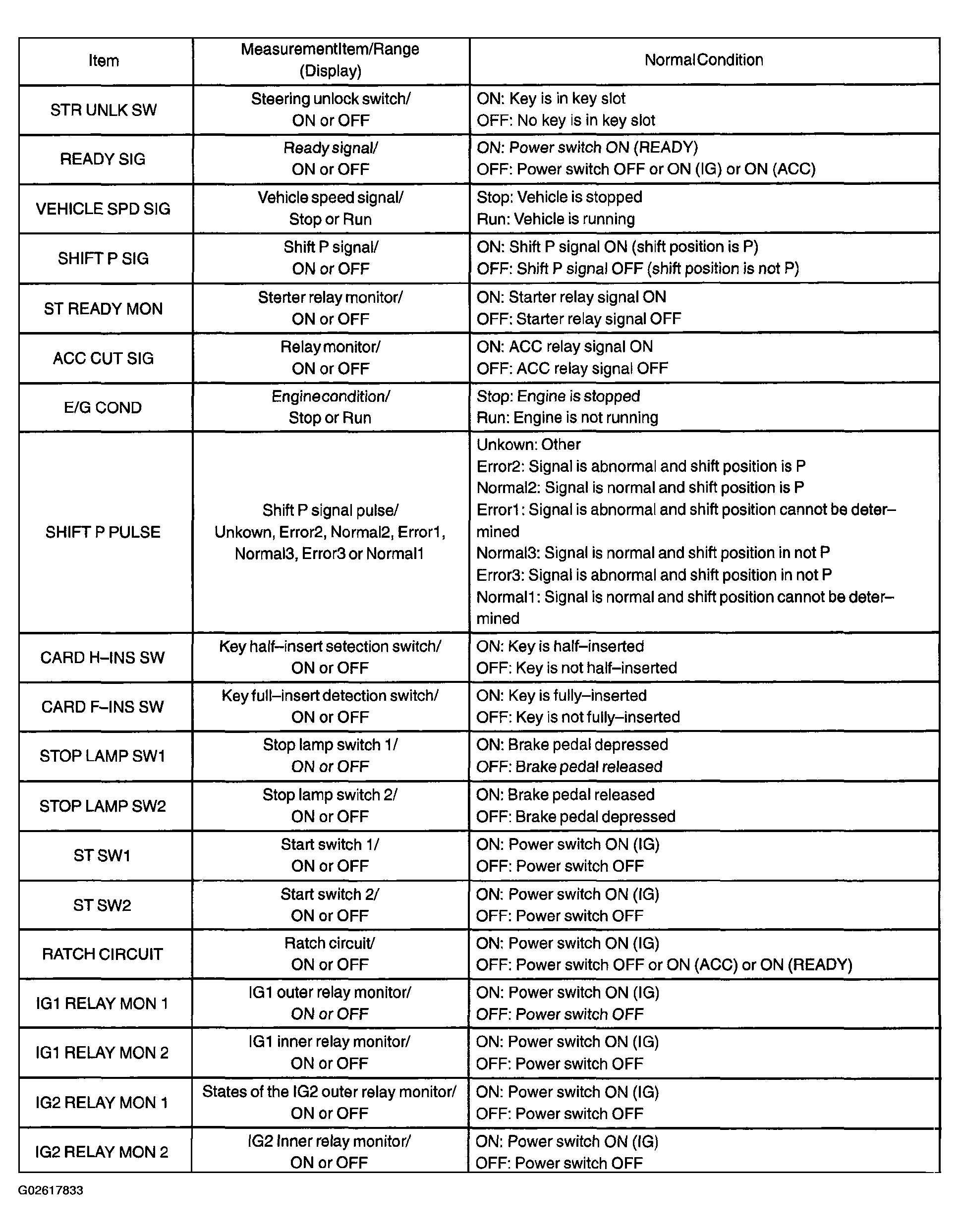

   Fig 1: Power Source Control ECU - Data List (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

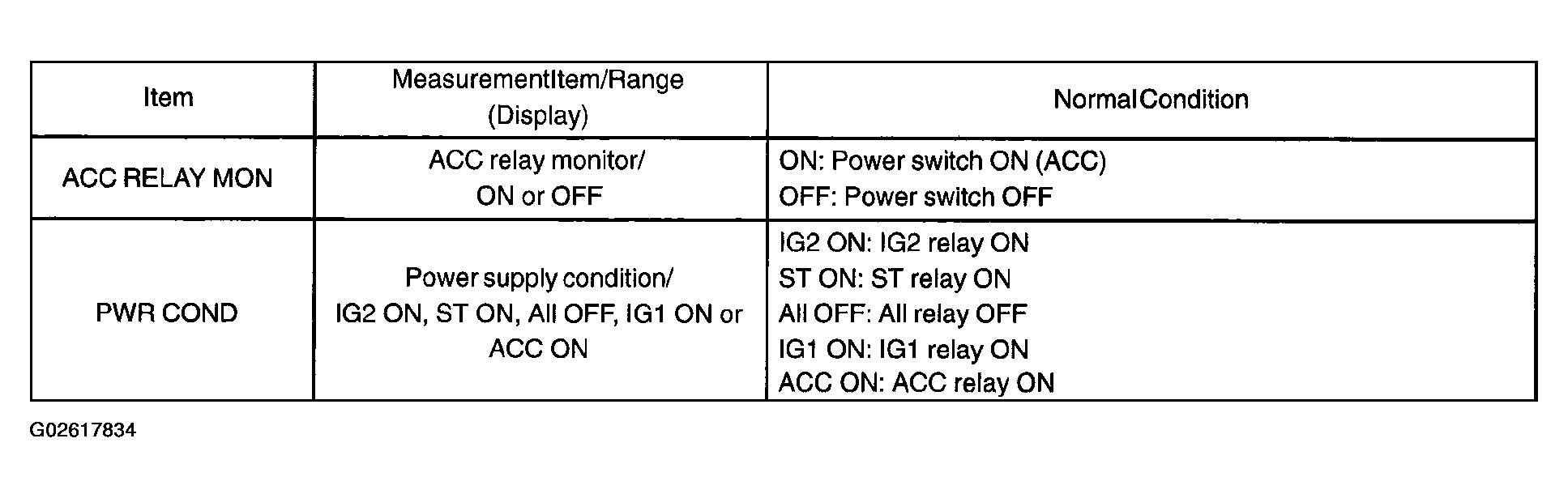

Fig 2: Power Source Control ECU - Data List (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Performing the hand-held tester's ACTIVE TEST allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the ACTIVE TEST early in troubleshooting is one way to save time. The DATA LIST can be displayed during the ACTIVE TEST.

1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the power switch ON (IG).
3. Perform the ACTIVE TEST according to the display on the tester.

   Power source control ECU:

   ACTIVE TEST LIST



   Item	Test Details
   KEY LOCK	Key lock (turn power switch OFF during test; turn power switch ON (IG);) ON/OFF
   LIGHTING IND	Indicator for lighting ON/OFF
   IND CONDITION	Indicator Green/Red/No Sig
