Push Button Start System - Diagnostics: Location

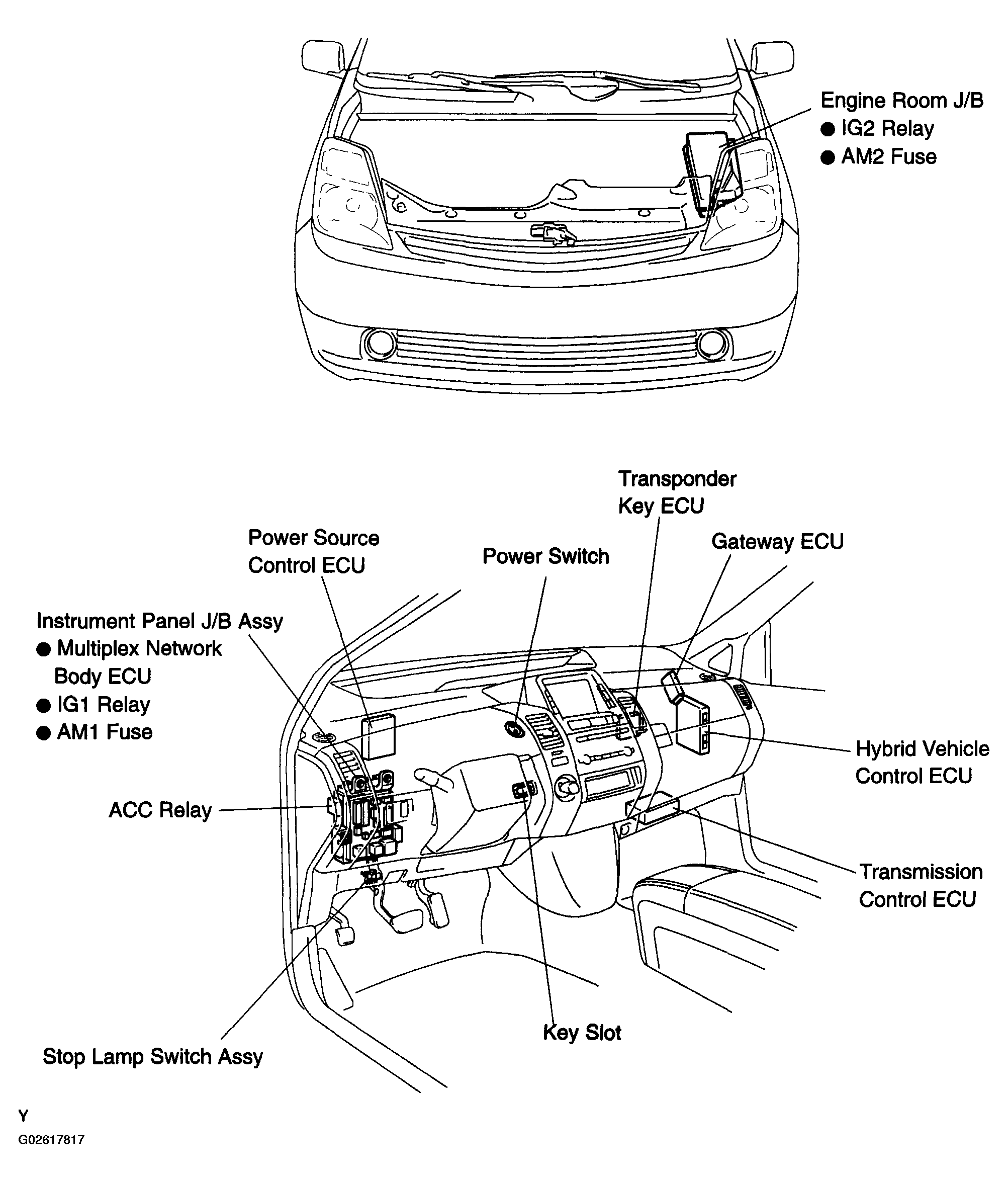

Fig 1: >Identifying Push Button Start System Location
G02617817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
