Back Door Glass: Components

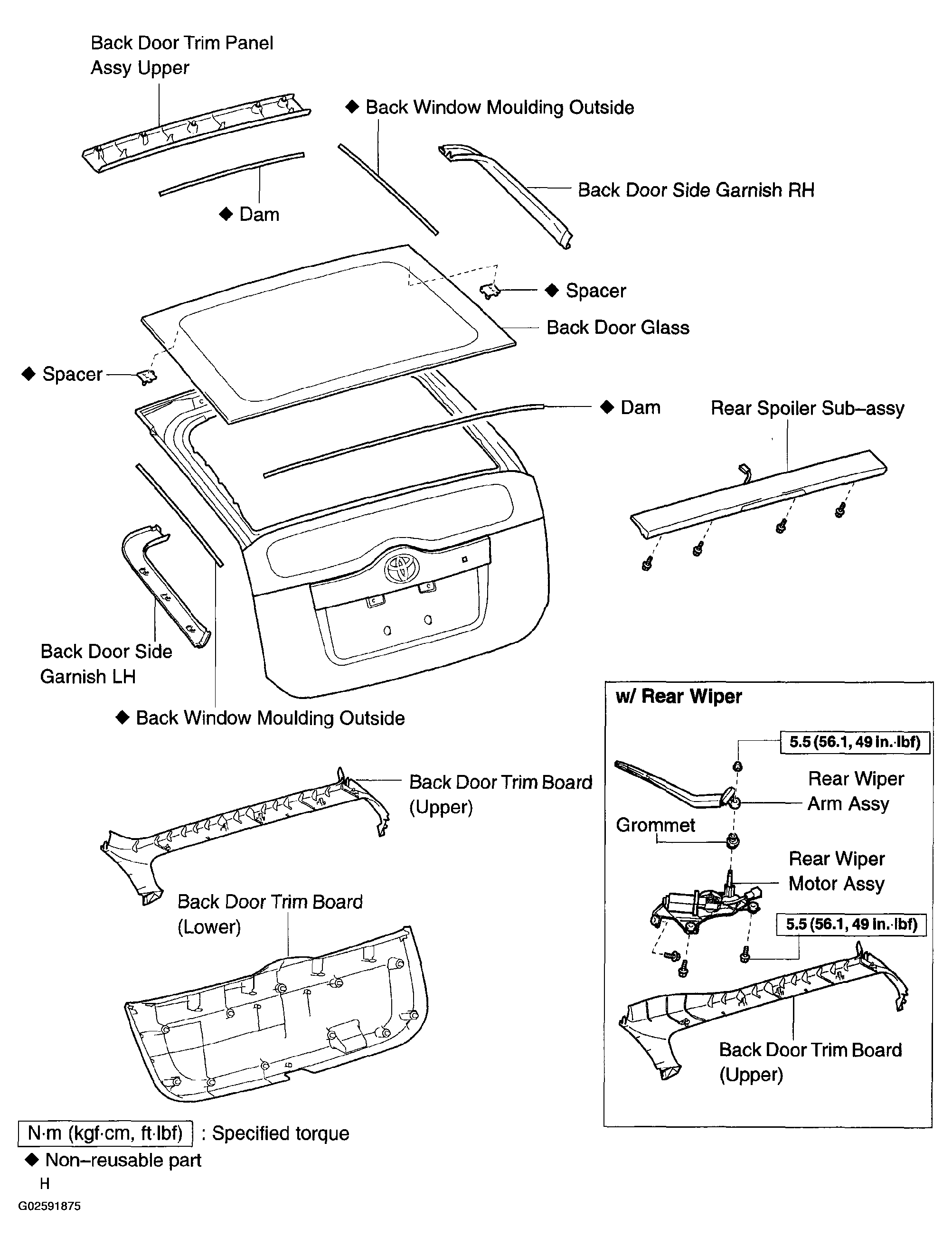

Fig 1: Component Location Of Back Door Glass And Torque Specifications
G02591875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
