Quarter Window: Components

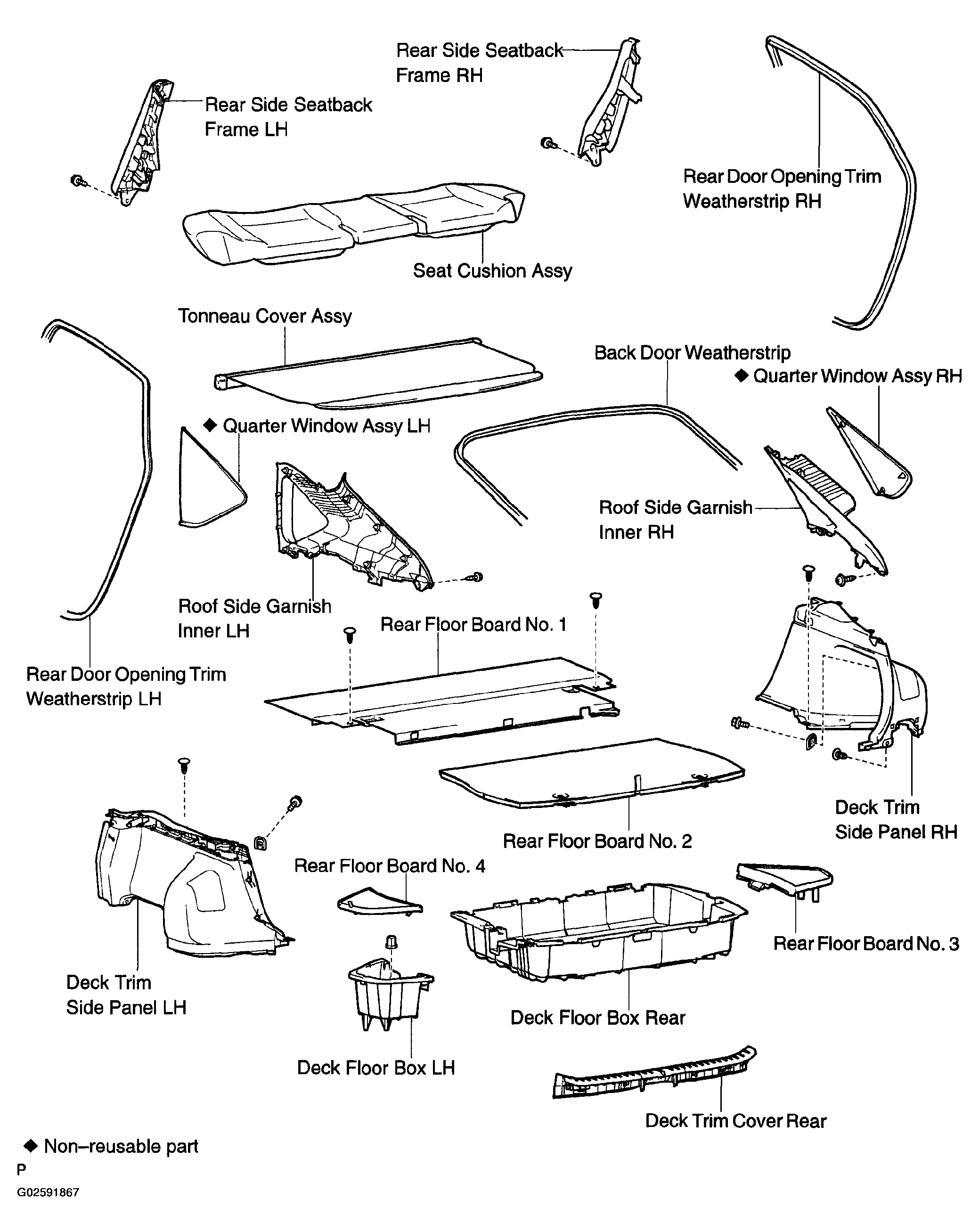

Fig 1: Identifying Component Location Of Quarter Window
G02591867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
