Windshield Glass: Components

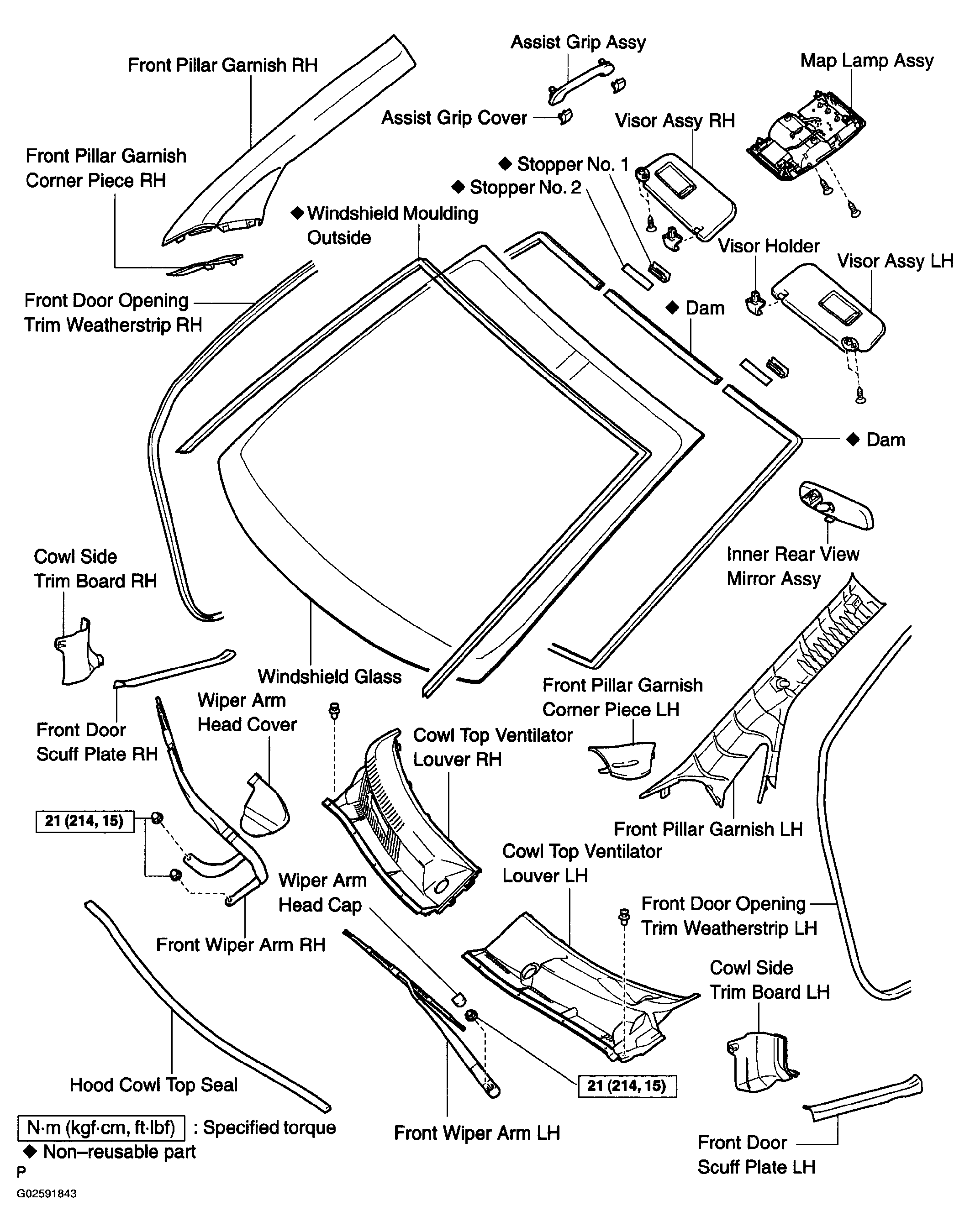

Fig 1: Component Location Of Windshield Glass And Torque Specifications
G02591843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
