Inspection Procedure

  1. CHECK INDICATOR LAMP
    1. Inspect the indicator light condition by operating the P position switch.

    Result:

    INDICATOR LAMP INSPECTION RESULT

    Condition Proceed to
    Indicator light does not go off. A
    Indicator light does not come on. B
    1. B: Go to step   3
    2. A: GO TO NEXT STEP
  2. CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL ECU ASSY - P POSITION SWITCH)
    1. Disconnect the T4 connector from the transmission control ECU assy.
    2. Disconnect the M11 connector from the P position switch.
    3. Measure the resistance according to the value (s) in the table below.

    Standard:

    TRANSMISSION CONTROL ECU ASSY - P POSITION SWITCH SPECIFIED CONDITIONS

    Tester connection (Symbols) Condition Specified Condition
    T4-9 (IND) - Body ground Always 10 kΩ or higher

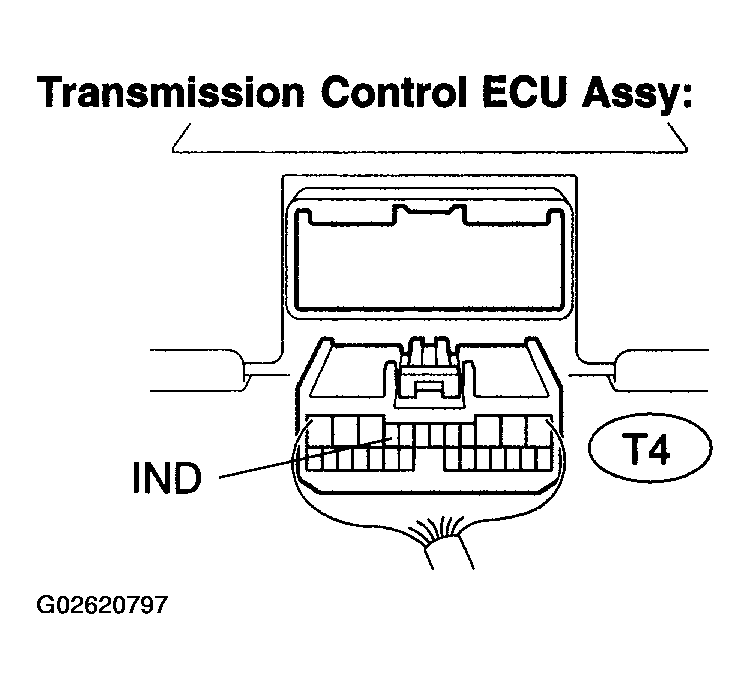

    Fig 1: Checking Harness And Connector (Transmission Control ECU Assy - P Position Switch)
    G02620797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: GO TO NEXT STEP

    REPLACE TRANSMISSION CONTROL ECU ASSY

  3. INSPECT FUSE
    1. Remove the P CON MAIN fuse from the engine room R/B and J/B.
    2. Check for continuity of the P CON MAIN fuse.

    Standard: Continuity

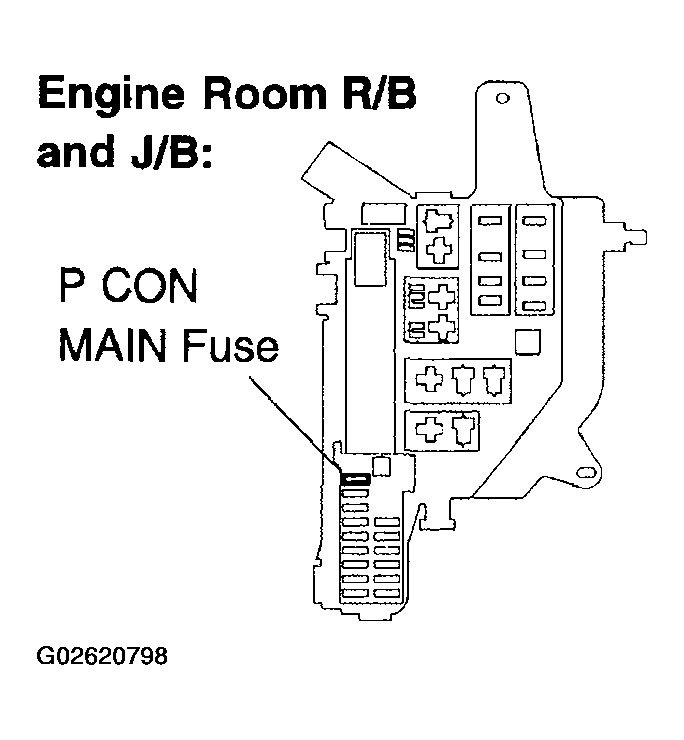

    Fig 2: Identifying Location Of P CON Main Fuse
    G02620798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: INSPECT FOR SHORT IN ALL COMPONENTS CONNECTED TO FUSE AND REPAIR OR REPLACE THEM IF NEEDED, AND REPLACE FUSE
    2. OK: GO TO NEXT STEP
  4. INSPECT COMPUTER, TRANSMISSION CONTROL (IND TERMINAL)
    1. Disconnect the T4 connector from the transmission control ECU assy.
    2. Measure the voltage according to the value (s) in the table below.

    Standard:

    TRANSMISSION CONTROL (IND TERMINAL) SPECIFIED CONDITIONS

    Tester connection (Symbols) Condition Specified condition
    T4-9 (IND) - Body ground Always 9 to 14 V

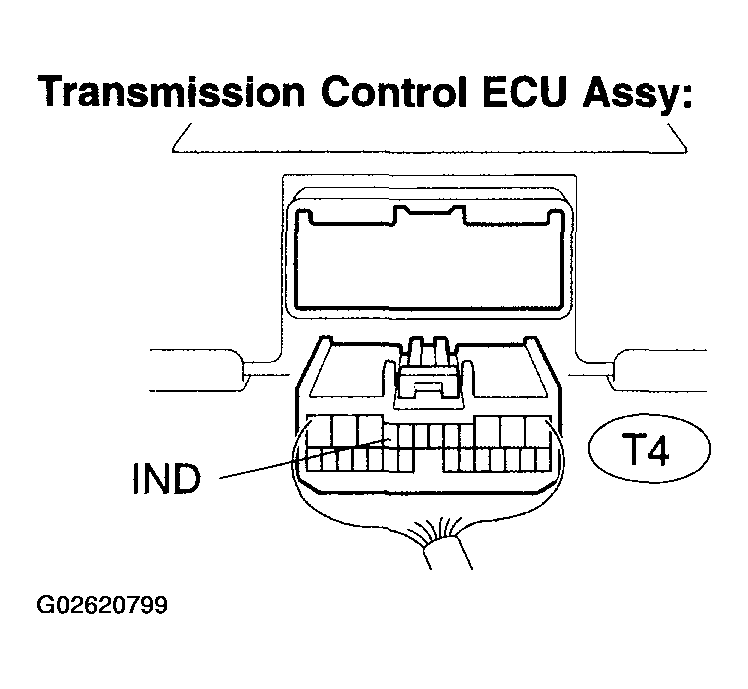

    Fig 3: Inspecting Computer, Transmission Control (IND Terminal)
    G02620799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK: REPLACE TRANSMISSION CONTROL ECU ASSY
    2. NG: GO TO NEXT STEP
  5. CHECK HARNESS AND CONNECTOR (TRANSMISSION CONTROL ECU ASSY - P POSITION SWITCH)
    1. Disconnect the M11 connector from the P position switch.
    2. Measure the resistance according to the value (s) in the table below.

    Standard:

    TRANSMISSION CONTROL ECU ASSY - P POSITION SWITCH SPECIFIED CONDITIONS

    Tester connection (Symbols) Condition Specified condition
    T4-9 (IND) - M11-6 (IND-) Always Below 1Ω

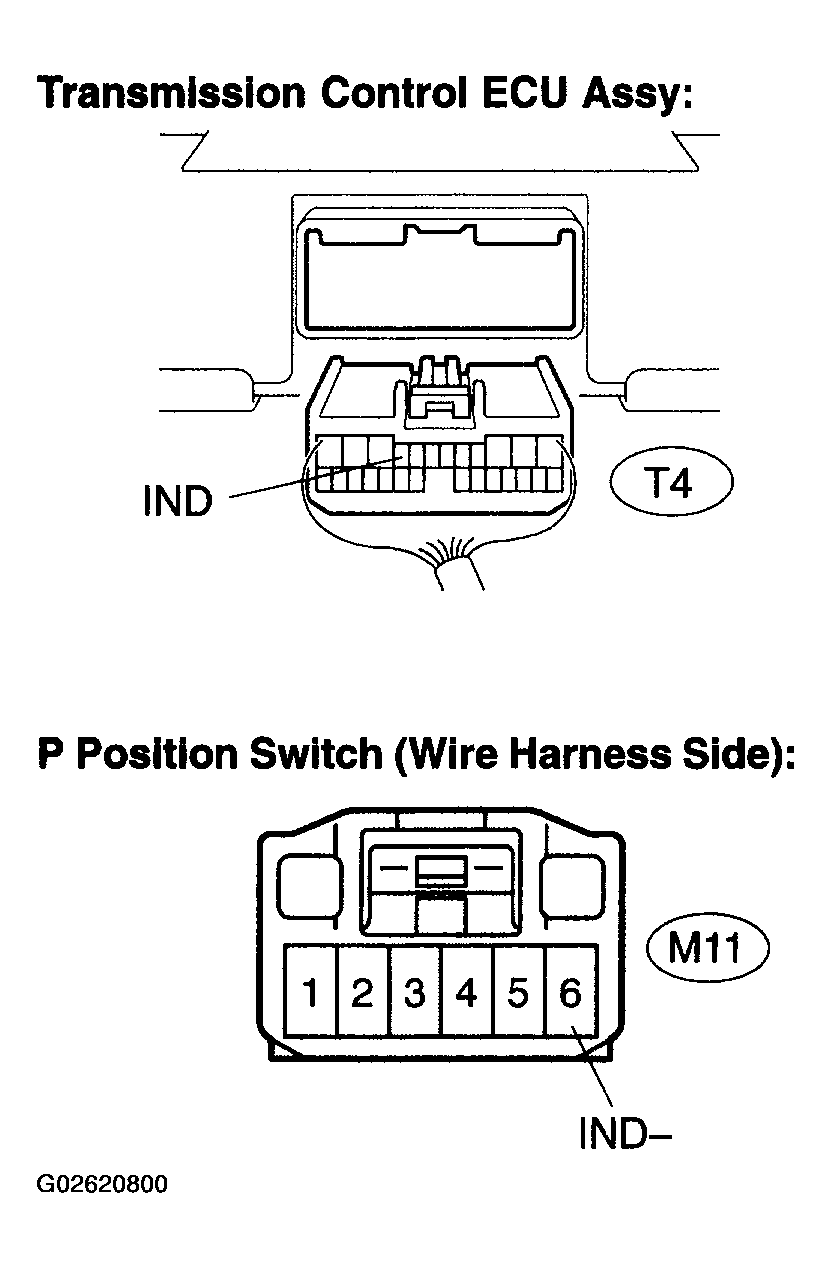

    Fig 4: Checking Harness And Connector (Transmission Control ECU Assy - P Position Switch)
    G02620800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: GO TO NEXT STEP
  6. INSPECT P POSITION SWITCH
    1. Measure the voltage according to the value (s) in the table below.

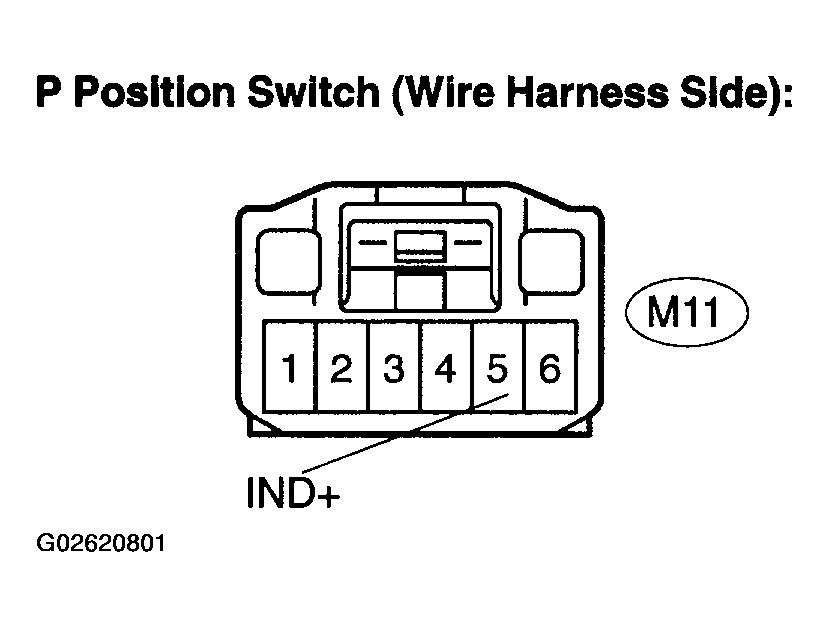

    Fig 5: Inspecting P Position Switch
    G02620801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Standard:

    P POSITION SWITCH SPECIFIED CONDITIONS

    Tester connection (Symbols) Condition Specified condition
    M11-5 (IND+)-Body ground Always 9 to 14 V
    1. OK: REPLACE P POSITION SWITCH
    2. NG: GO TO NEXT STEP

    REPAIR OR REPLACE HARNESS OR CONNECTOR (P POSITION SWITCH - BATTERY)
