Transmission Control System (Parking Lock Control) - Diagnostics
>>
Shift Control System (Parking Lock Control)
>>
System Diagram
>>
Input and output signals of each ECU.
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Input and output signals of each ECU.

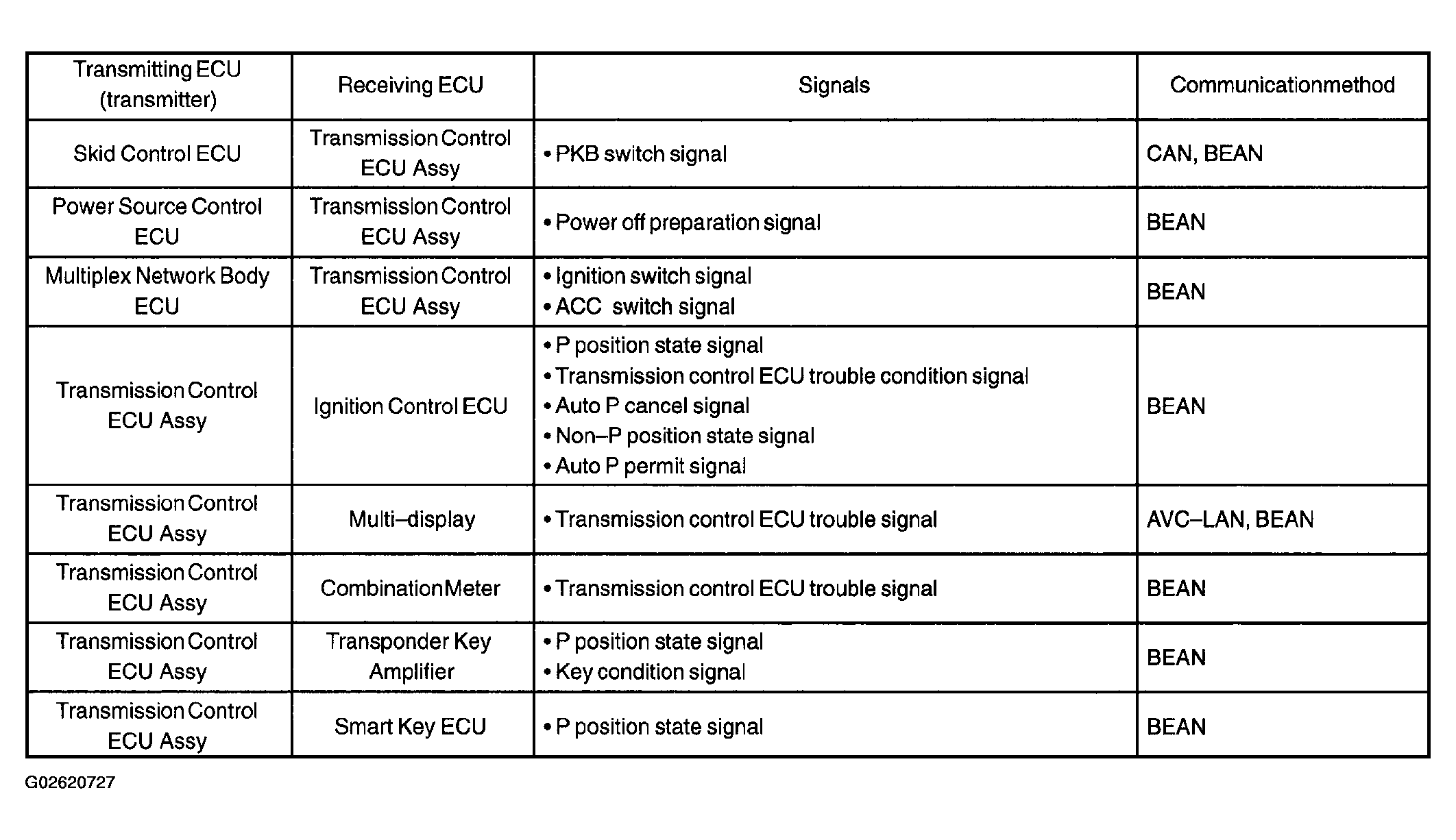

Fig 1: ECU Input And Output Signals Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
