Transmission Control System (Parking Lock Control) - Diagnostics
>>
Shift Control System (Parking Lock Control)
>>
System Diagram
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram: Notes

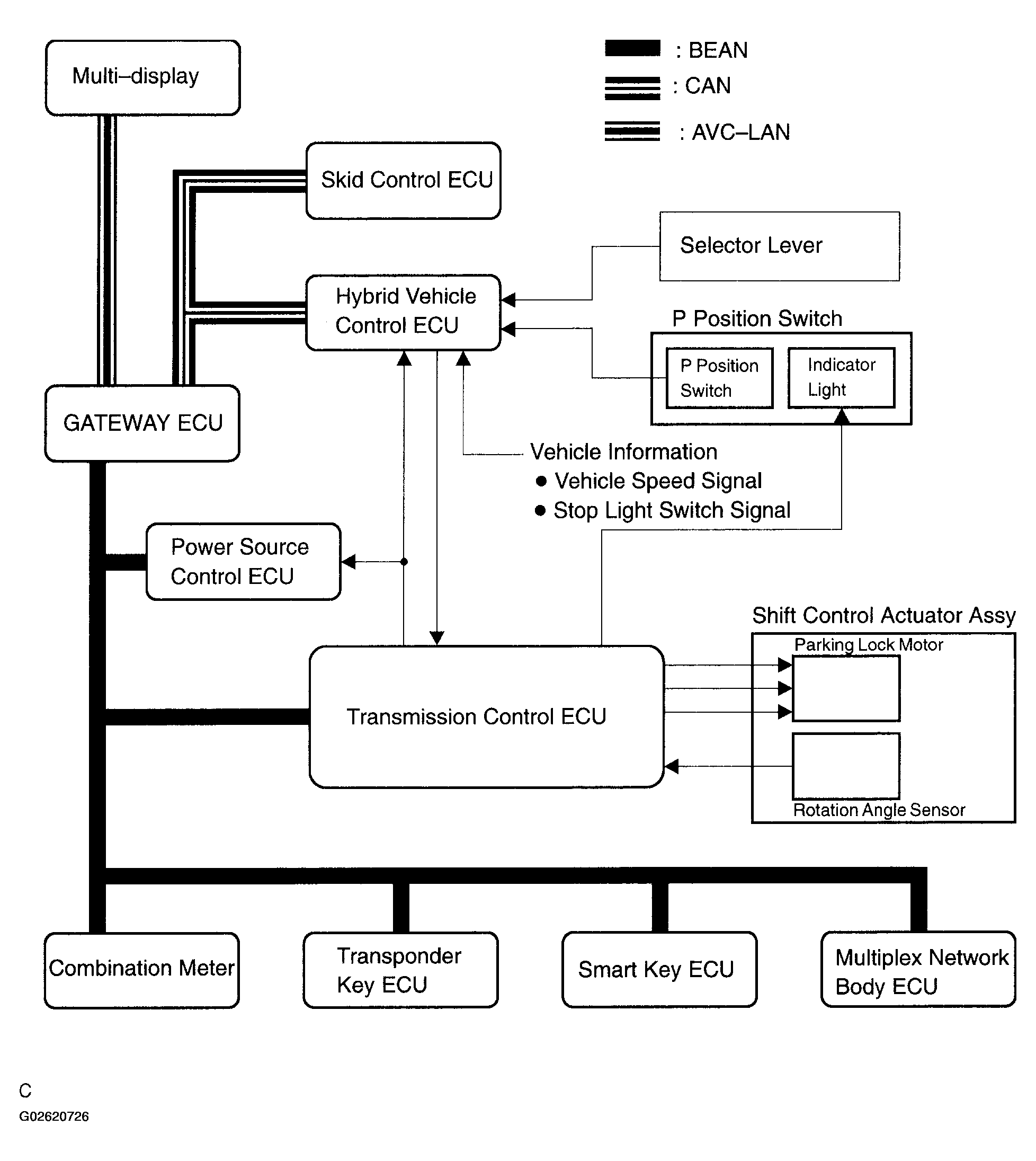

Fig 1: Shift Control System (Parking Lock Control) Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
