Power Mirror Control System: Inspection

INSPECT LEFT SIDE MIRROR SWITCH CONTINUITY

SWITCH POSITION SPECIFIED CONDITION

Switch Position	Tester Connection	Specified Condition
OFF		No continuity
UP	4 - 8 6 - 7	Continuity
DOWN	4 - 7 6 - 8	Continuity
LEFT	5 - 8 6 - 7	Continuity
RIGHT	5 - 7 6 - 8	Continuity

If the continuity is not as specified, replace the switch.

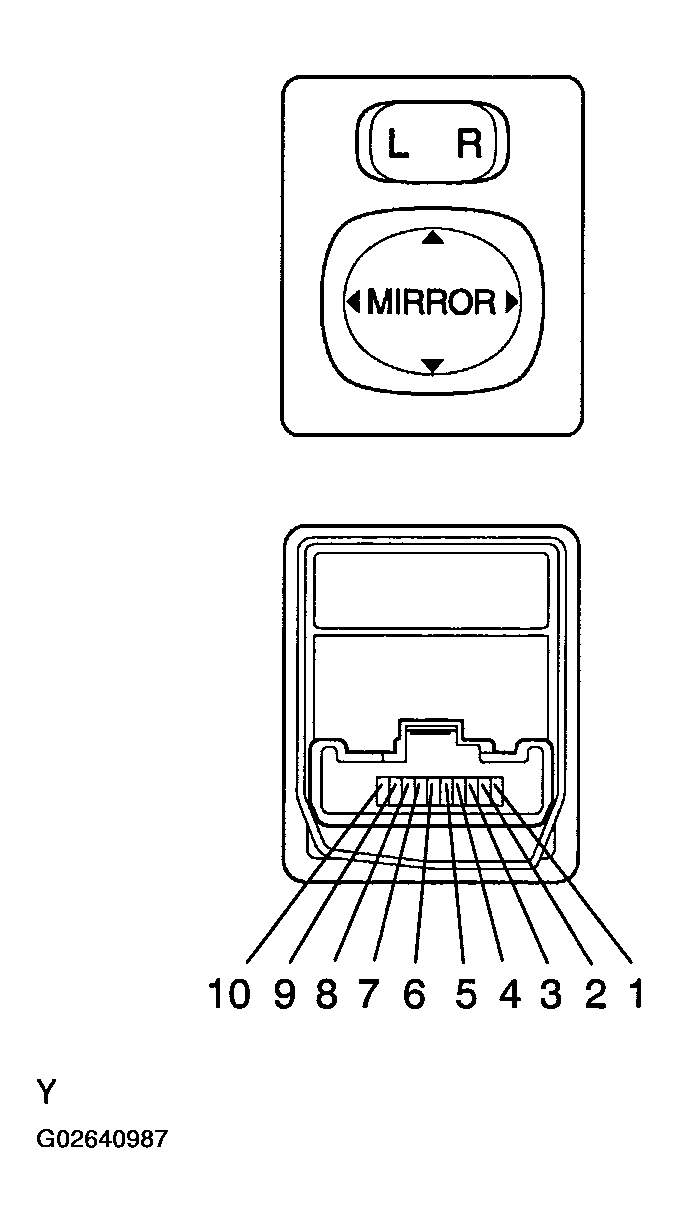

Fig 1: Inspecting Left Side Mirror Switch Continuity

G02640987

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT RIGHT SIDE MIRROR SWITCH CONTINUITY

SWITCH POSITION SPECIFIED CONDITION

Switch Position	Tester Connection	Specified Condition
OFF		No Continuity
UP	3 - 8 6 - 7	Continuity
DOWN	3 - 7 6 - 8	Continuity
LEFT	2 - 8 6 - 7	Continuity
RIGHT	2 - 7 6 - 8	Continuity

If the continuity is not as specified, replace the switch.

INSPECT MIRROR MOTOR OPERATION

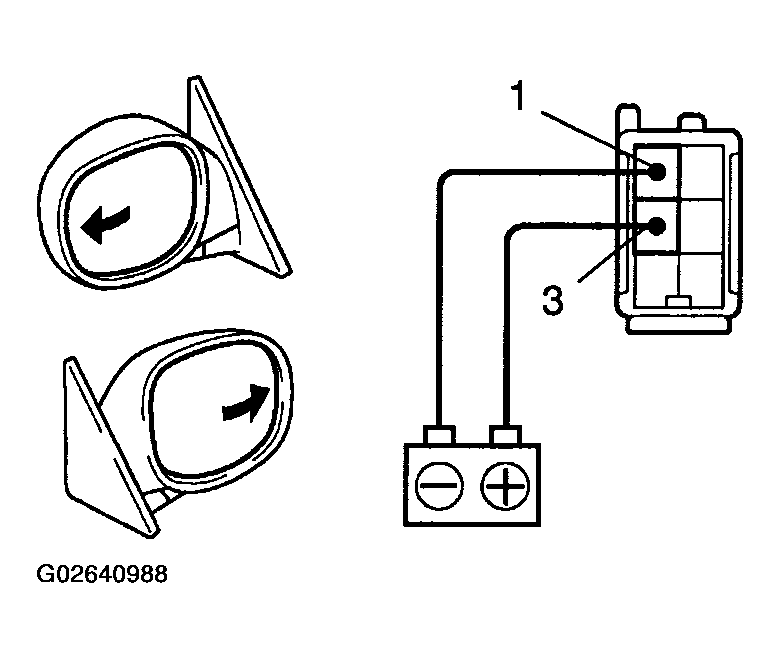

1. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 1. Check that the mirror angles outward, as shown.

  Fig 2: Connecting Positive (+) Lead From Battery To Terminal 3 And Negative (-) Lead To Terminal 1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

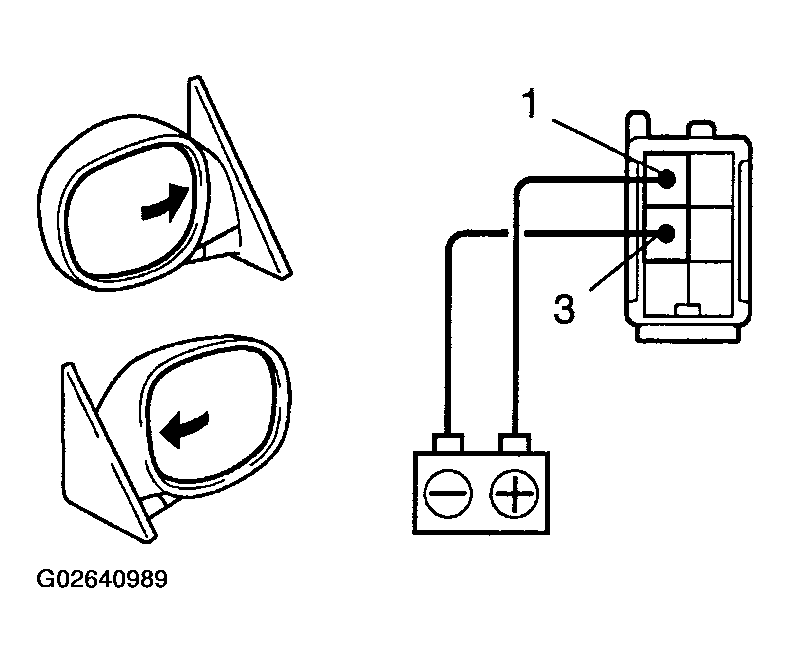

2. Reverse the polarity. Check if the mirror angles inward, as shown.

  Fig 3: Connecting Terminal 1 And 3
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

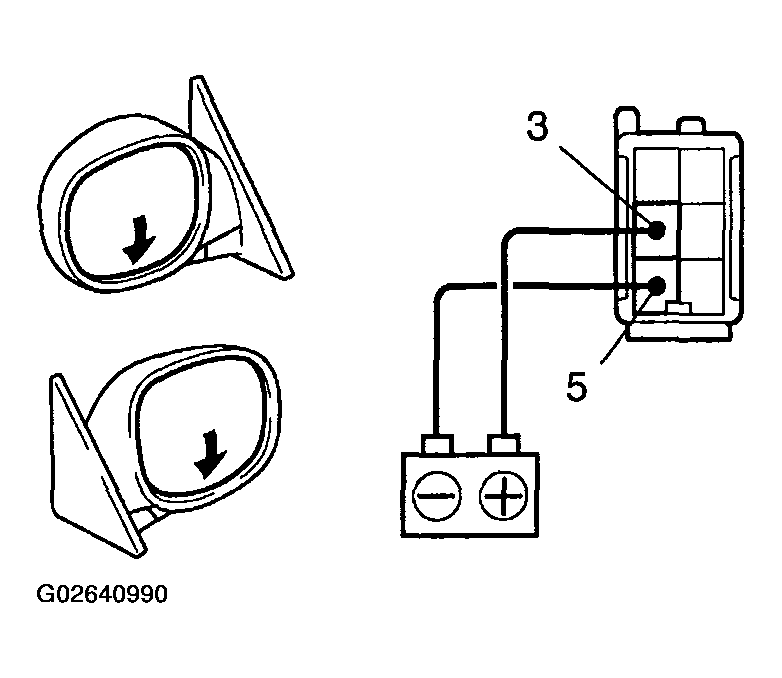

3. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 5. Check if the mirror angles downward, as shown.

  Fig 4: Connecting Positive (+) Lead From Battery To Terminal 3 And Negative (-) Lead To Terminal 5
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

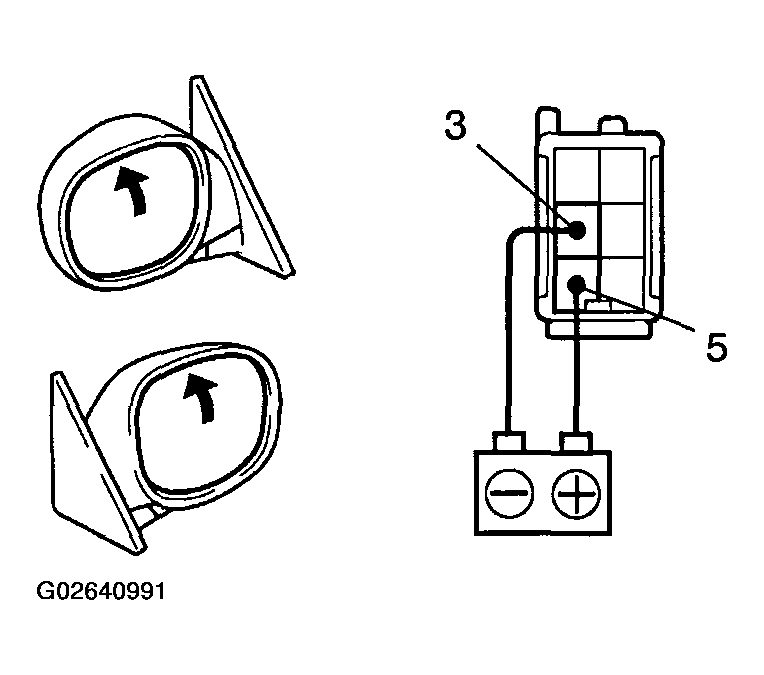

4. Reverse the polarity, and check that the mirror angles upward, as shown.
  If operation is not as specified, replace the mirror assembly.

  Fig 5: Connecting Terminal 3 And 5
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
