IGNITION RELAY (No.2) INSPECTION

  1. REMOVE IGNITION RELAY (Marking: IG2)

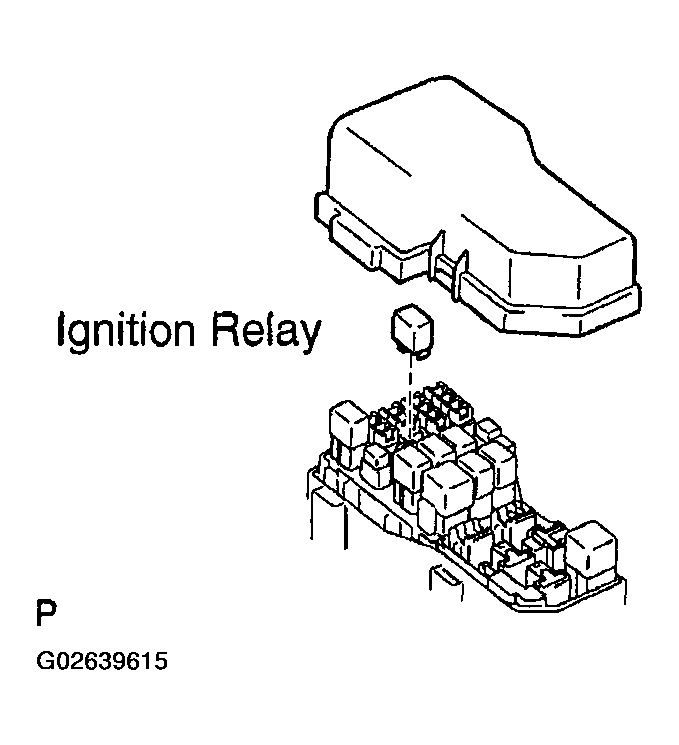

    Fig 1: Removing Ignition Relay
    G02639615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT IGNITION RELAY
    1. Check the resistance of the IG relay.

      Standard:

      SPECIFIED CONDITION CHART

      Tester Condition Specified Condition
      3 - 5 10 kΩ or higher
      3 - 5 Below 1 Ω (when battery voltage is applied to terminals 1 and 2)

      If the result is not as specified, replace the relay.

  3. REINSTALL IGNITION RELAY

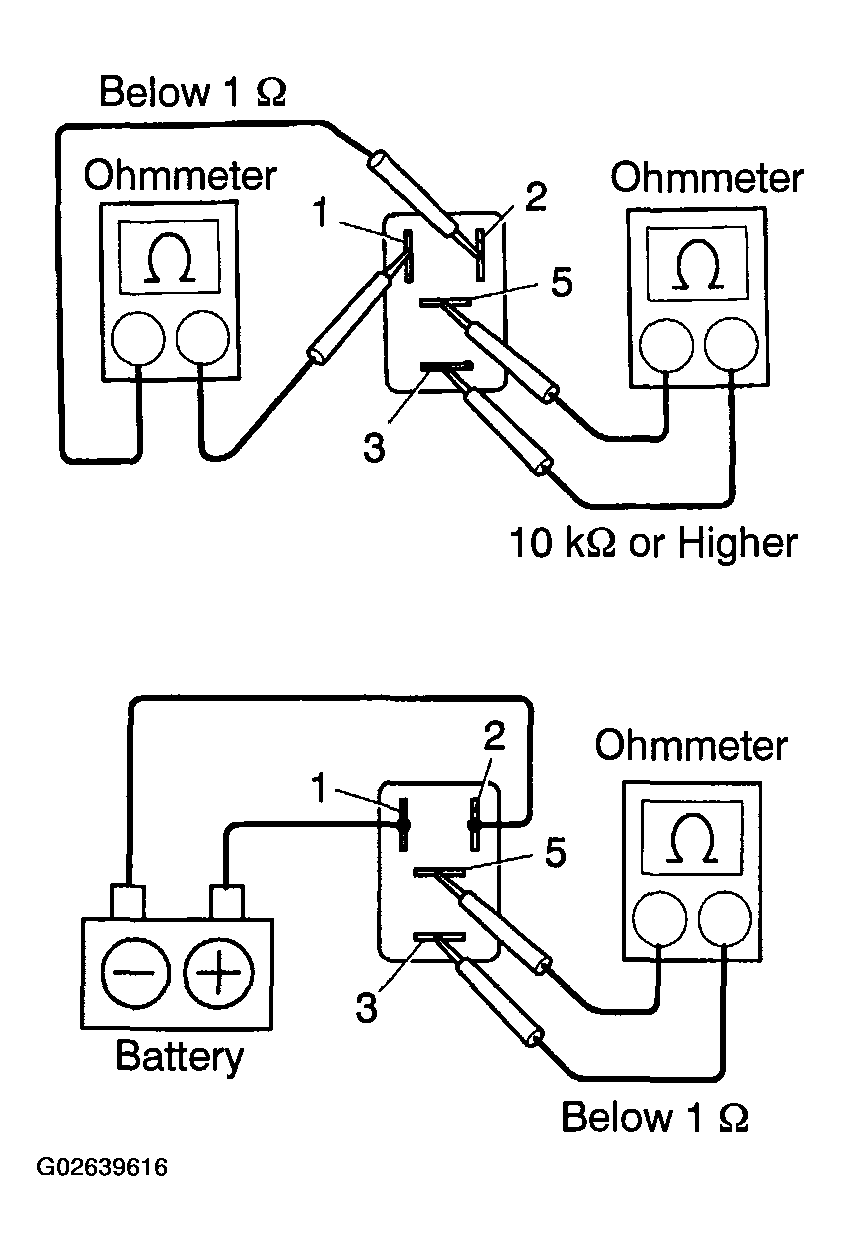

    Fig 2: Checking Resistance Of IG Relay
    G02639616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
