Fail-Safe Chart

If any of the following code is recorded, the ECM enters fail-safe mode.

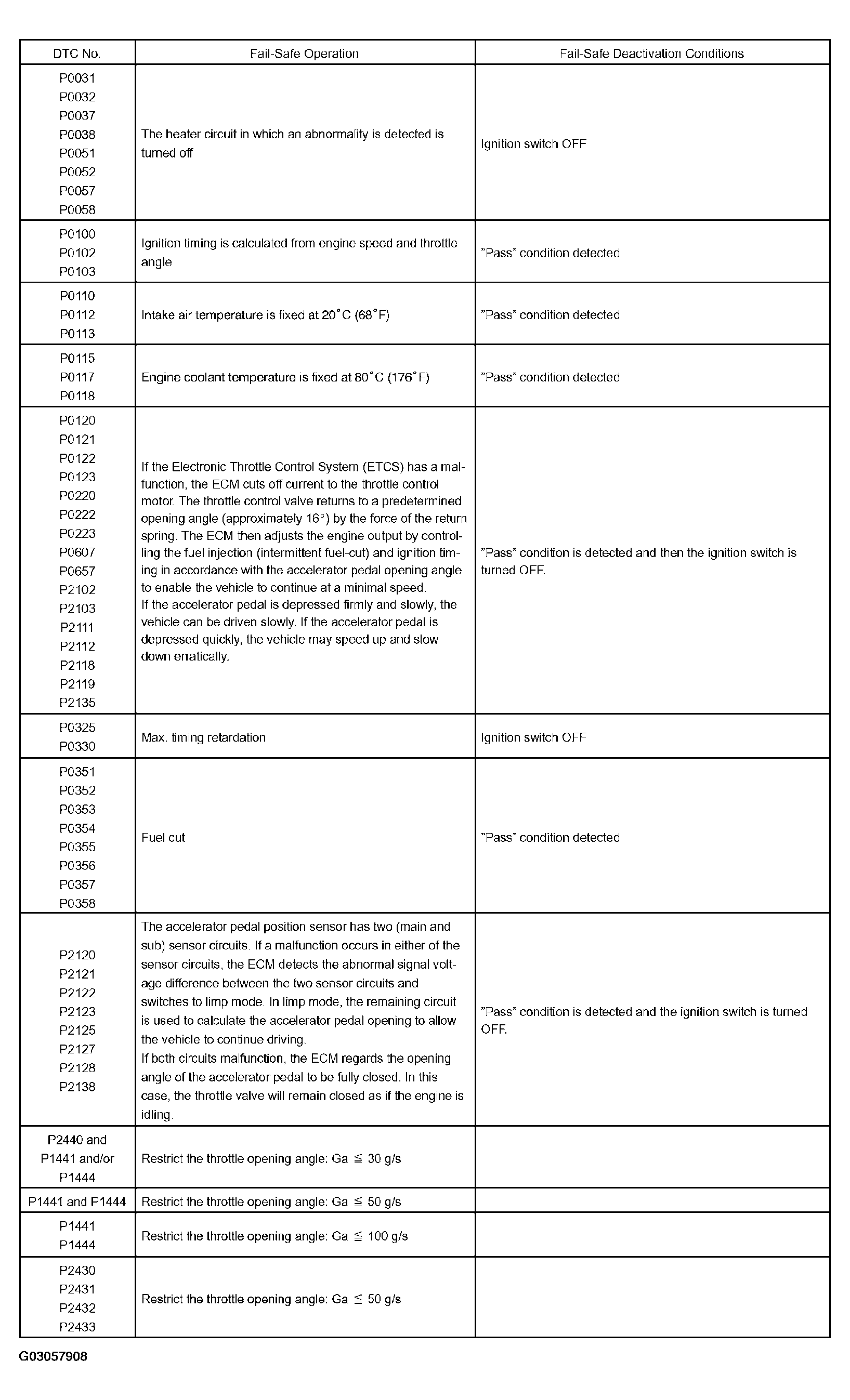

Fig 1: Fail-Safe Chart
G03057908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
