Automatic Transmission/Trans: Preparation: SST

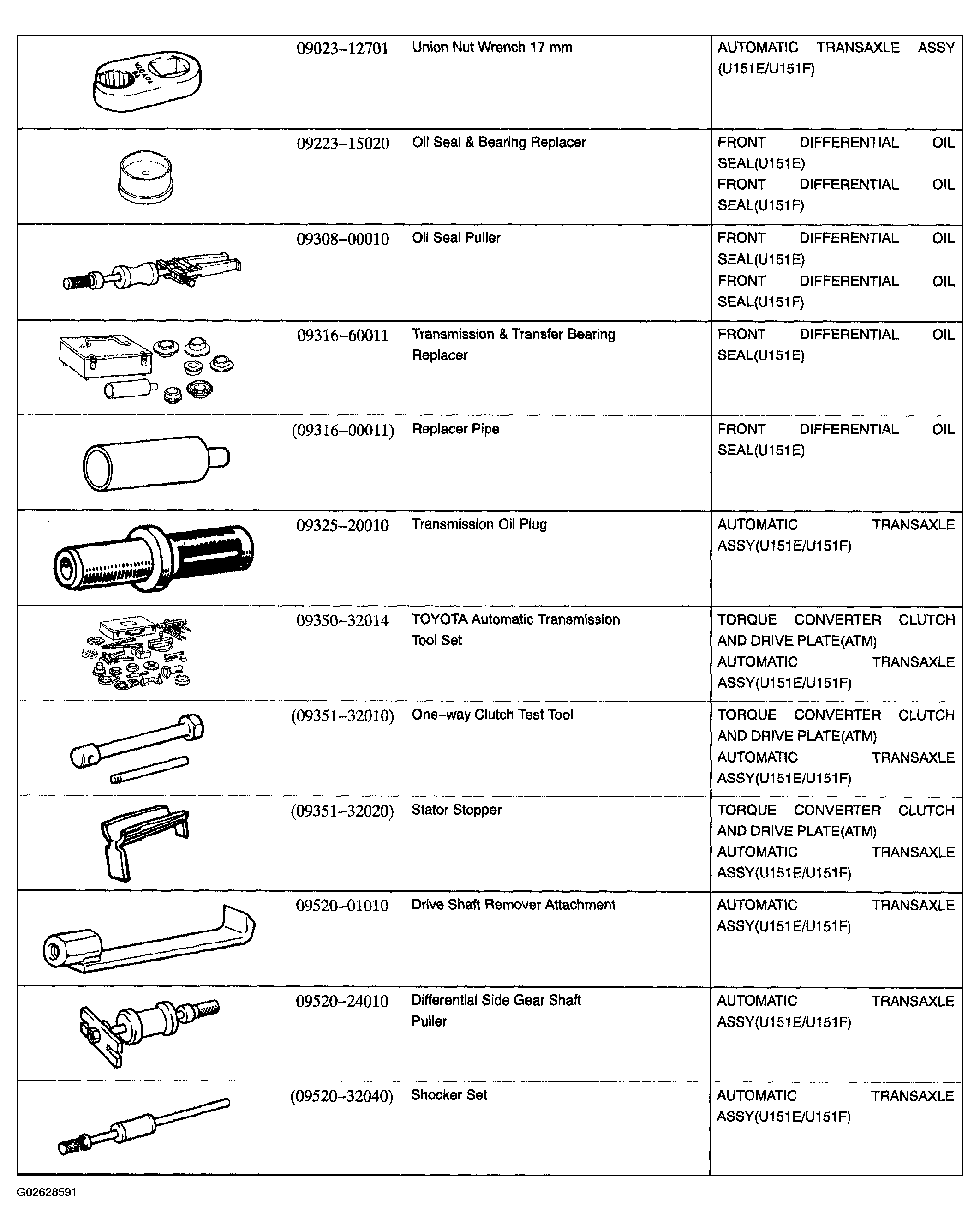

Fig 1: Automatic Transmission/Trans - SST Tool Table (1 Of 2)
G02628591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

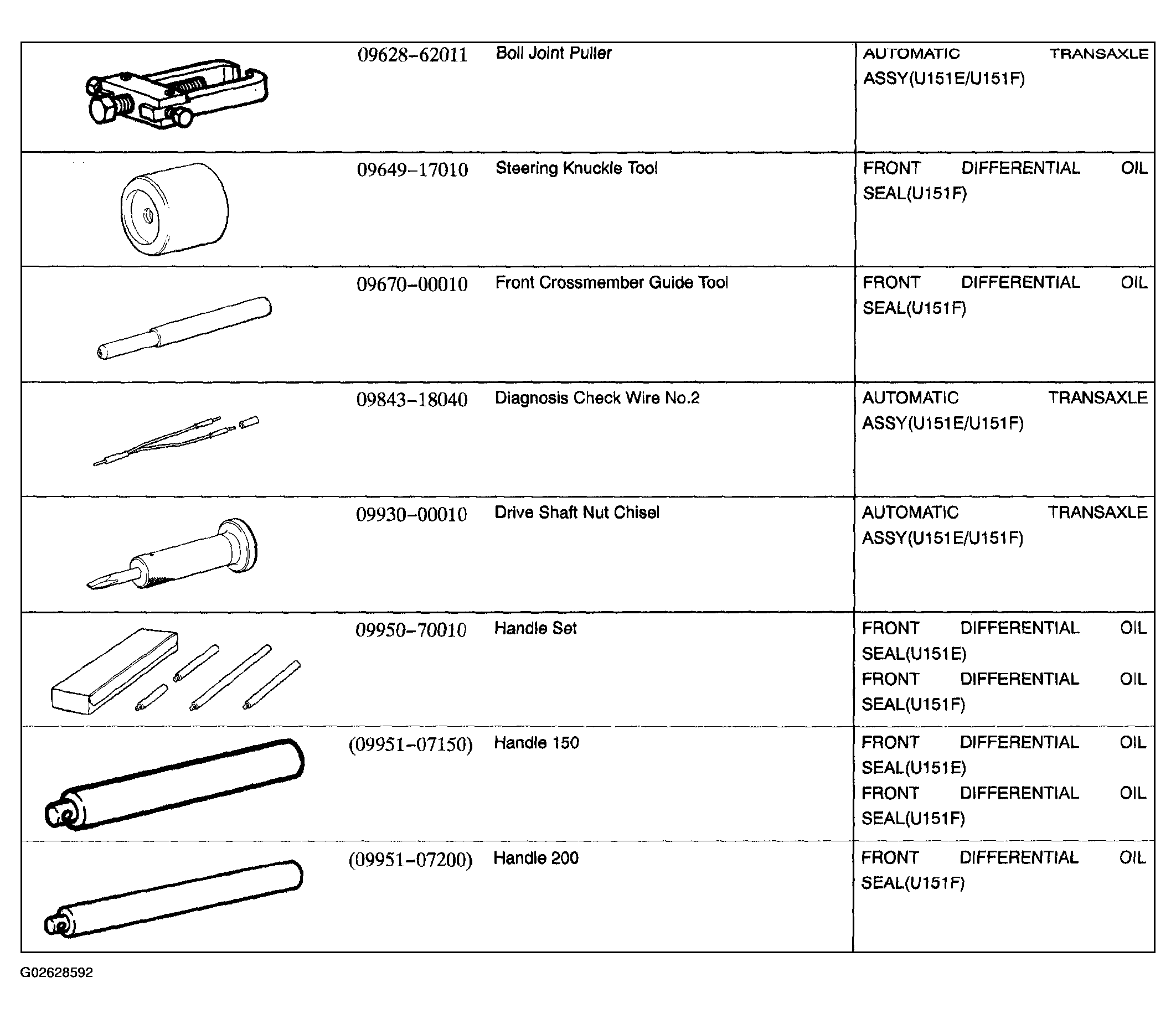

Fig 2: Automatic Transmission/Trans - SST Tool Table (2 Of 2)
G02628592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
