Acoustic Control Induction System (ACIS): Inspection

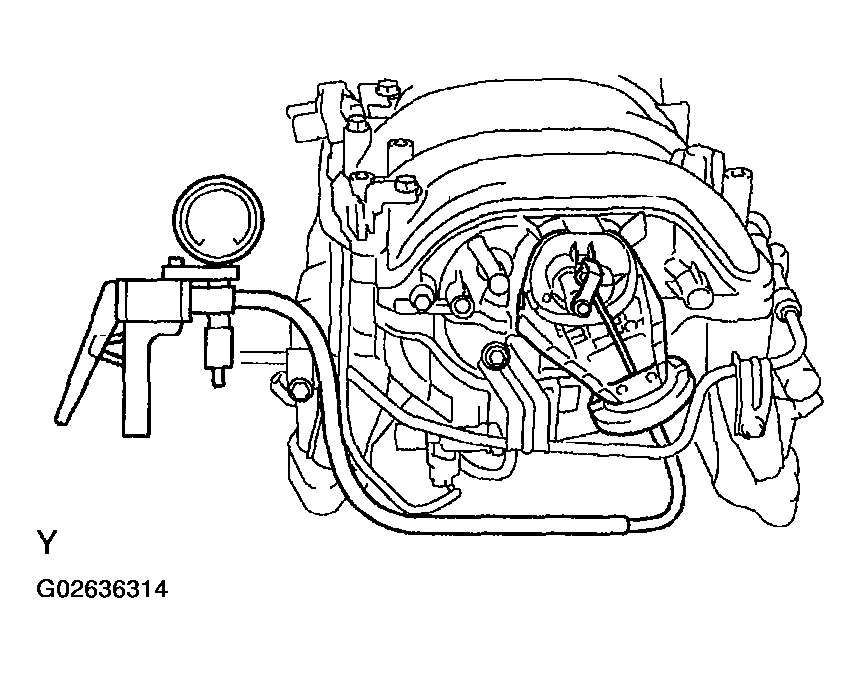

1. With 39.9 kPa (300 mmHg, 11.8 in.Hg) of vacuum applied to the actuator, check that the actuator rod moves.
2. One minute after applying the vacuum in step (a), check that the actuator rod does not return.

If the operation is not as specified, replace the intake manifold.

Fig 1: Inspecting Intake Air Control Valve

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

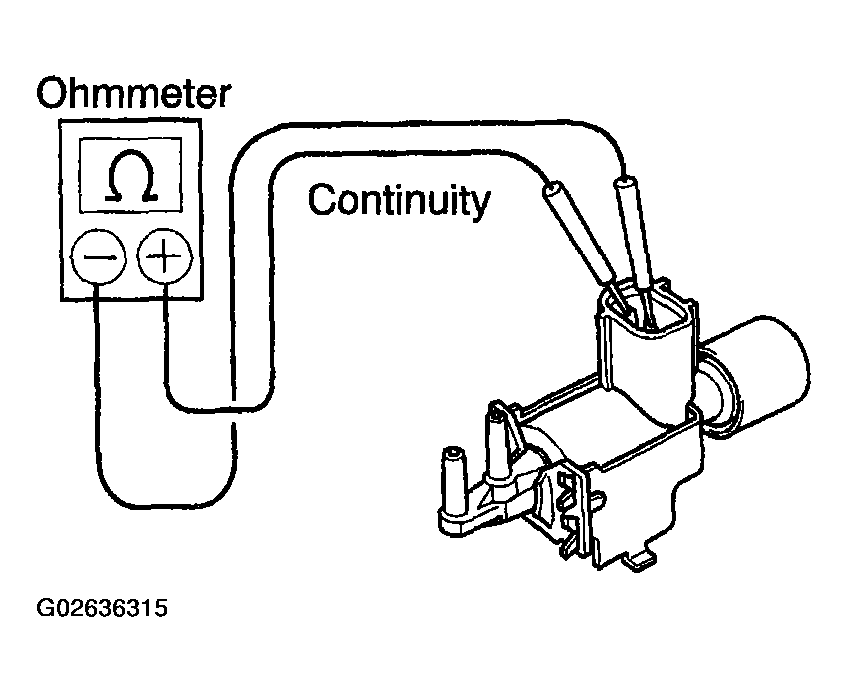

1. Using an ohmmeter, check that there is continuity between each terminal.

   Resistance: 33 to 39 Ω at 20°C (68°F)

   If there is no continuity, replace the VSV.

   Fig 2: Checking Continuity Between Each VSV Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

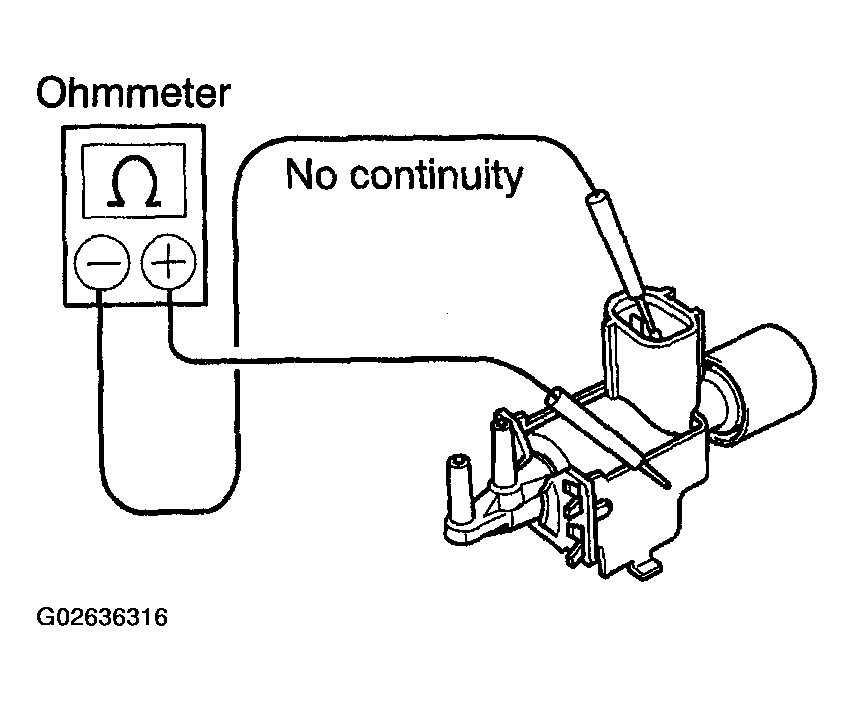

2. Using an ohmmeter, check that there is no continuity between each terminal and the body.

   If there is continuity, replace the VSV.

   Fig 3: Checking No Continuity Between Each VSV Terminal And Body

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

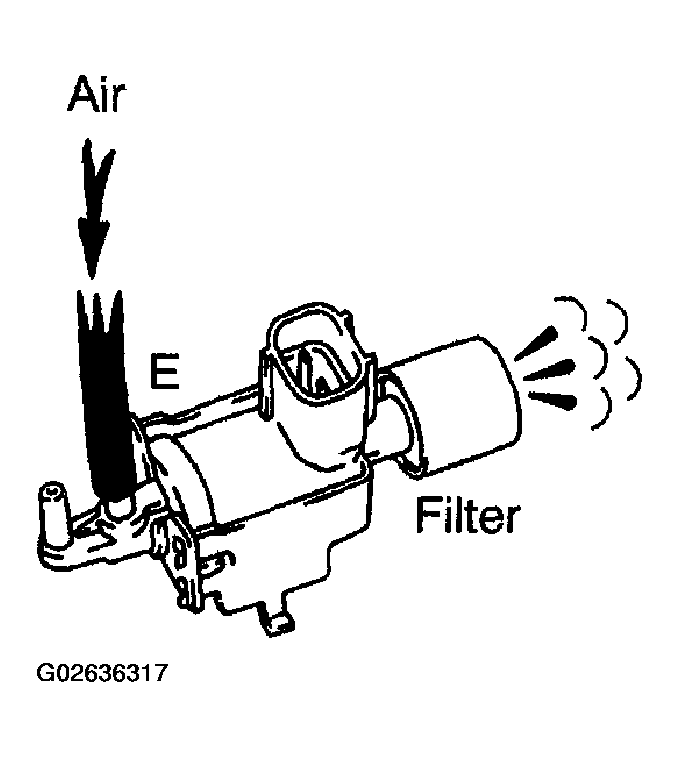

3. Check that air flows from port E to the filter.
   Fig 4: Checking Air Flows From Port E To Filter

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

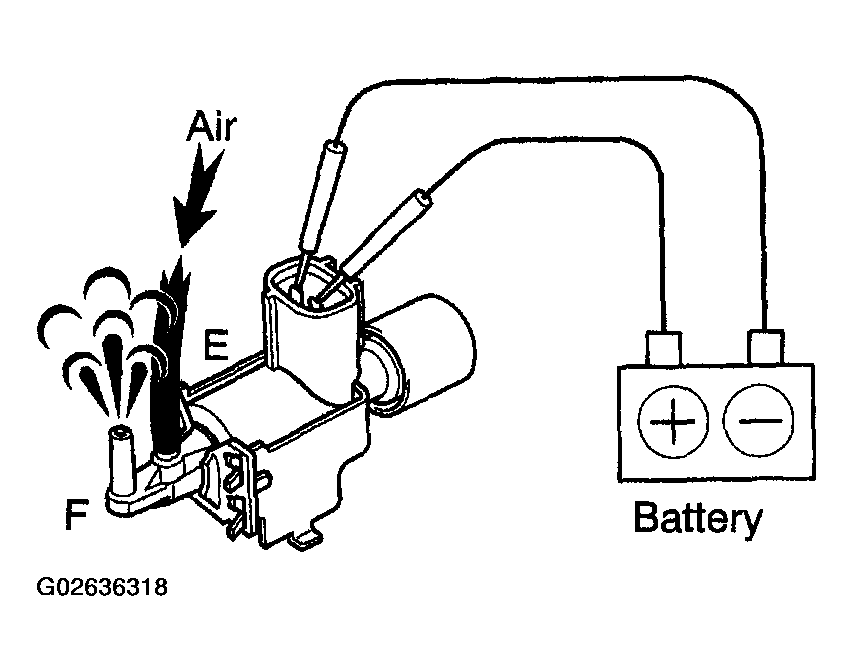

4. Apply battery voltage across the terminals.
   Fig 5: Applying Battery Voltage Across Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Check that air flows from port E to port F.

If operation is not as specified, replace the VSV.
