Operation Check

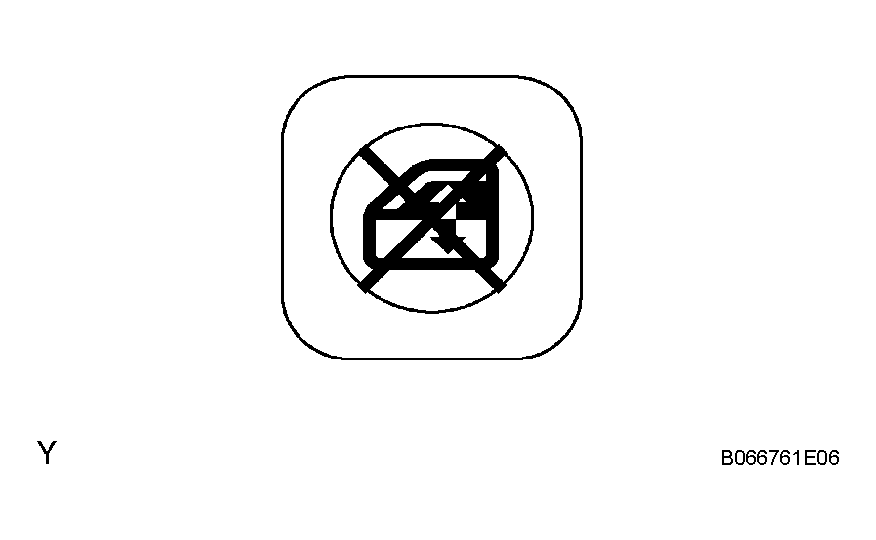

- CHECK WINDOW LOCK SWITCH
- Check that the front passenger side power window and rear power window operation is disabled when the window lock switch of the multiplex network master switch is pressed.
- Check that the front passenger side power window and rear power windows can be operated when the window lock switch is pressed again.
- CHECK MANUAL UP/DOWN FUNCTION
- Check that the driver side power window operates as follows:
OK
CHECK MANUAL UP/DOWN FUNCTION (DRIVER SIDE POWER WINDOW)Condition Master Switch Switch Operation Power Window Ignition switch on (IG) Driver side Pulled halfway up UP (Closed) Pushed halfway down DOWN (Open) - Check that the power windows except the driver side power window operates as follows:
OK
CHECK MANUAL UP/DOWN FUNCTION (EXCEPT DRIVER SIDE POWER WINDOW)Condition Master Switch Switch Operation Power Window - Ignition switch ON
- Window lock switch OFF
Passenger side Pulled halfway up UP (Closed) Pushed halfway down DOWN (Open) Rear LH Pulled halfway up UP (Closed) Pushed halfway down DOWN (Open) Rear RH Pulled halfway up UP (Closed) Pushed halfway down DOWN (Open)
- Check that the driver side power window operates as follows:
- CHECK AUTO UP/DOWN FUNCTION
- Check that the driver side power window operates as follows:
OK
AUTO UP/DOWN FUNCTION (DRIVER SIDE POWER WINDOW)Condition Master Switch Switch Operation Power Window Ignition switch ON Driver side Pulled fully up AUTO UP (Fully closed) Pushed fully down AUTO DOWN (Fully open) - Check that the power windows except the driver side power window operate as follows:
OK
AUTO UP/DOWN FUNCTION (EXCEPT DRIVER SIDE POWER WINDOW)Condition Master Switch Switch Operation Power Window - Ignition switch ON
- Window lock switch OFF
Passenger side Pulled fully up AUTO UP (Fully closed) Pushed fully down AUTO DOWN (Fully open)
- Check that the driver side power window operates as follows:
- CHECK REMOTE MANUAL UP/DOWN FUNCTION
- Check that the power windows except the driver side power window operate as follows:
OK
EXCEPT DRIVER SIDE POWER WINDOW OPERATION CONDITIONSCondition Master Switch Switch Operation Power Window - Ignition switch ON
- Window lock switch OFF
Passenger side Pulled halfway up UP (Closed) Pushed halfway down DOWN (Open) Rear LH Pulled halfway up UP (Closed) Pushed halfway down DOWN (Open) Rear RH Pulled halfway up UP (Closed) Pushed halfway down DOWN (Open)
- Check that the power windows except the driver side power window operate as follows:
- CHECK REMOTE AUTO UP/DOWN FUNCTION
- Check that the power windows except the driver side power window operate as follows:
OK
REMOTE AUTO UP/DOWN FUNCTION (EXCEPT DRIVER SIDE POWER WINDOW)Condition Master Switch Switch Operation Power Window - Ignition switch ON
- Window lock switch OFF
Passenger side Pulled fully up AUTO UP (Fully closed) Pushed fully down AUTO DOWN (Fully open)
- Check that the power windows except the driver side power window operate as follows:
- CHECK JAM PROTECTION FUNCTION
HINT:
The jam protection function prevents any part of your body from getting caught by accident between the door frame and the door glass during power window operation.
NOTE: If the power window motor has been reset, raise and lower the door glass several times using MANUAL function before performing the check.- Check that the door glass goes down by approximately. 50 mm (1.97 in.) right when something gets caught between the door frame and door glass during power window operation. However, when the opening between the door frame and the door glass is less than 200 mm (7.87 in.), the door glass continues to go down and does not stop until an opening of 200 mm (7.87 in.) is achieved.
Operative conditions:
- AUTO UP (FRONT DOORS)
- AUTO UP/MANUAL UP function after the ignition switch is turned off (FRONT DOORS)
- Check that the door glass goes down by approximately. 50 mm (1.97 in.) right when something gets caught between the door frame and door glass during power window operation. However, when the opening between the door frame and the door glass is less than 200 mm (7.87 in.), the door glass continues to go down and does not stop until an opening of 200 mm (7.87 in.) is achieved.
