Inspection Procedure

1. Remove the power window regulator motor.
2. Apply battery voltage to the motor connector according to POWER WINDOW REGULATOR MOTOR (REAR RH)  .
   NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.

   Standard

   POWER WINDOW REGULATOR MOTOR (REAR RH)



   Measurement Condition	Specified Condition
   Battery positive (+) -> Terminal 1 (U) Battery negative (-) -> Terminal 2 (D)	Motor gear rotates clockwise
   Battery positive (+) - Terminal 2 (D) Battery negative (-) -> Terminal 1 (U)	Motor gear rotates counterclockwise

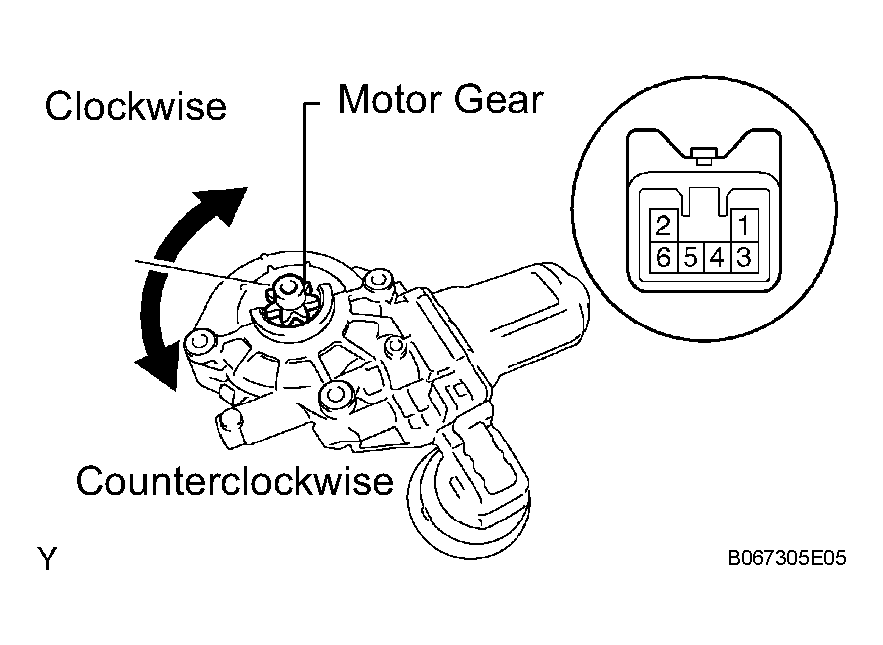

   Fig 1: Inspecting Power Window Regulator Motor Operation (Rear RH)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE POWER WINDOW REGULATOR MOTOR (REAR RH)

OK: Go to next step

1. Disconnect the J2 and J4 connectors.
2. Measure the resistance of the wire harness side connectors.

   Resistance

   WINDOW REGULATOR MOTOR - POWER WINDOW REGULATOR SWITCH



   Tester Connection	Condition	Specified Condition
   J4-1 - J2-3	Always	Below 1 Ω
   J4-2 - J2-1	Always	Below 1 Ω
   J4-1 - Body ground	Always	10 kΩ or higher
   J4-2 - Body ground	Always	10 kΩ or higher

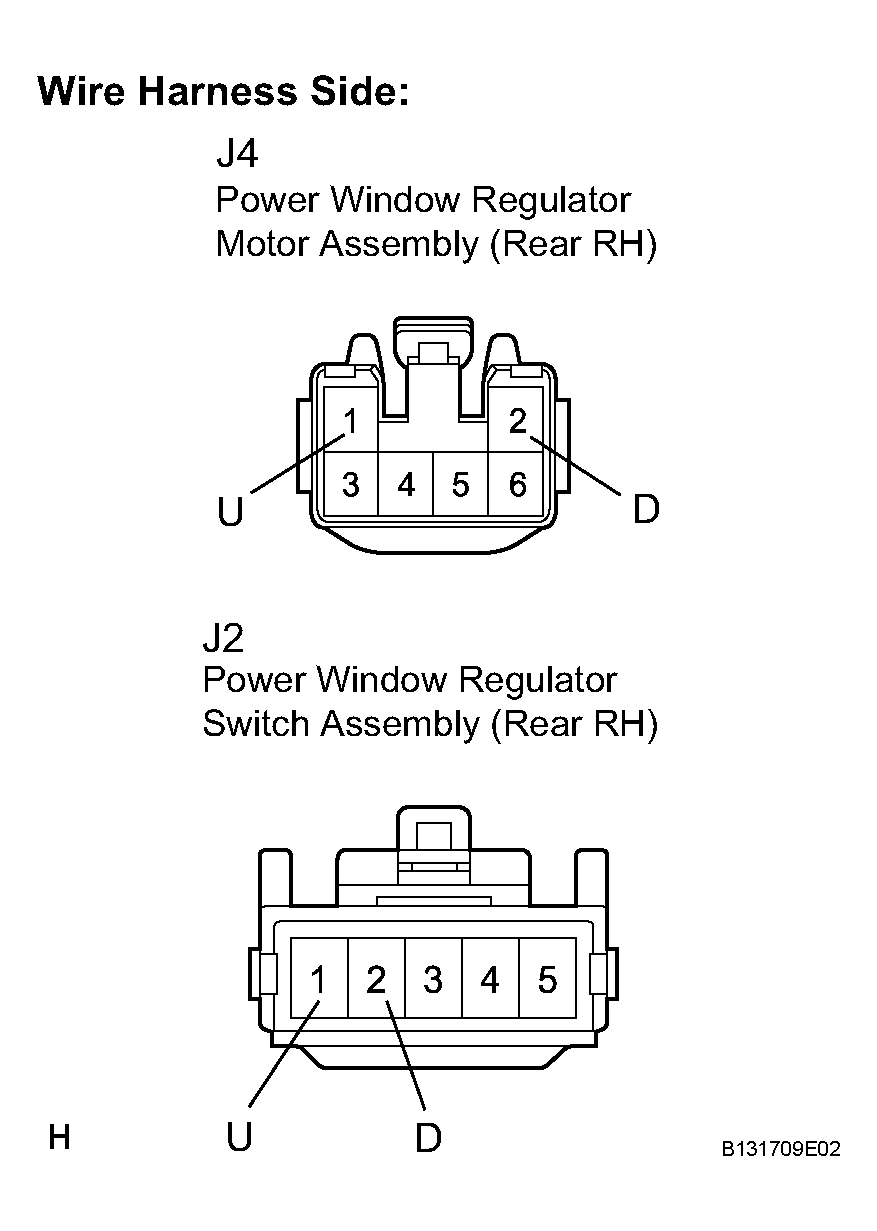

   Fig 2: Checking Wire Harness (Window Regulator Motor - Power Window Regulator)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
