Inspection Procedure

1. Remove the switch.
2. Measure the resistance of the switch when the switch is operated.

   Resistance

   POWER WINDOW REGULATOR SWITCH ASSEMBLY (REAR RH)



   Switch Condition	Tester Connection	Specified Condition
   UP	1 (D) - 2 (SD) 3 (U) - 4 (B)	Below 1 Ω
   OFF	1 (D) - 2 (SD) 3 (U) - 5 (SU)	Below 1 Ω
   AUTO DOWN	1 (D) - 4 (B) 3 (U) - 5 (SU)	Below 1 Ω

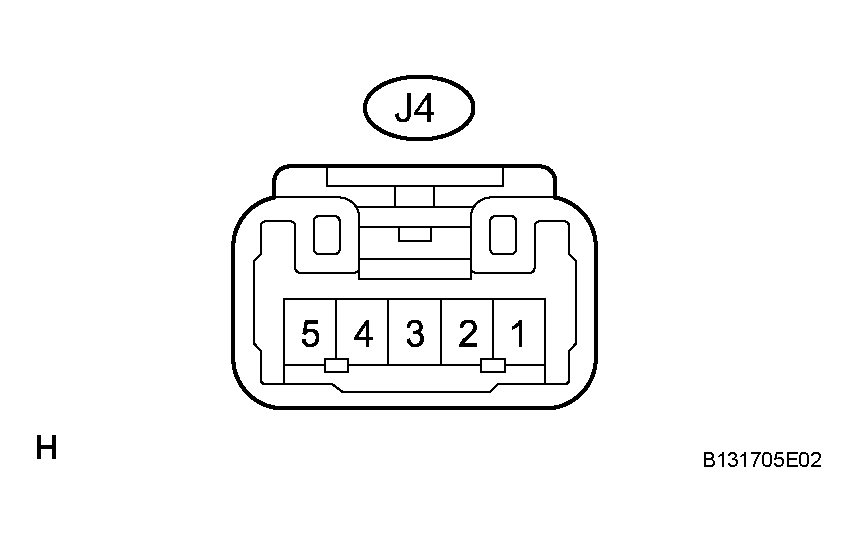

   Fig 1: Inspecting Power Window Regulator Switch Terminal (Rear RH)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY (REAR RH)

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
