Power Window Control System - Diagnostics: Location

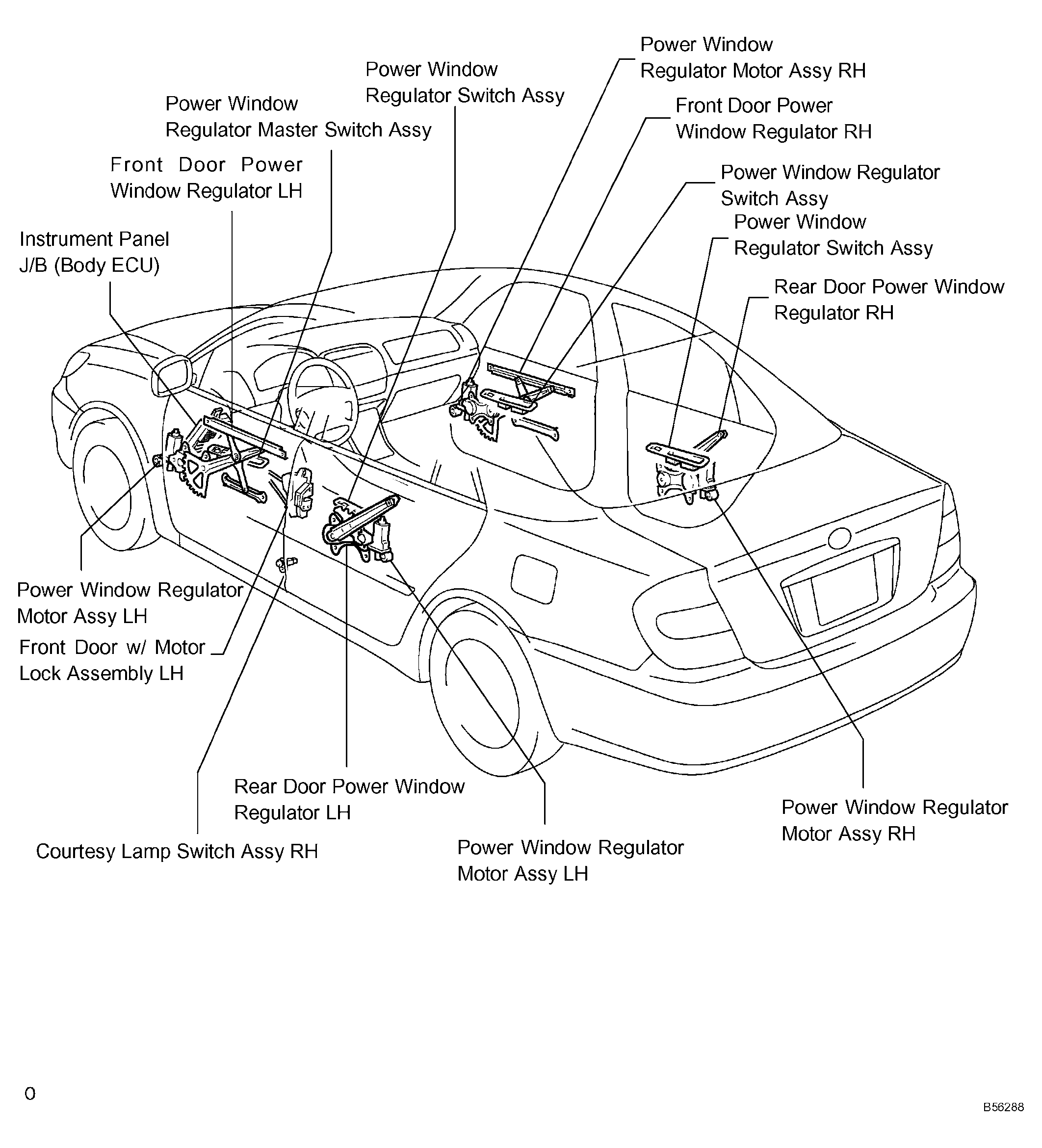

Fig 1: Identifying Power Window Control System Component Locations
G04391064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
