Charging System: Generator: Components

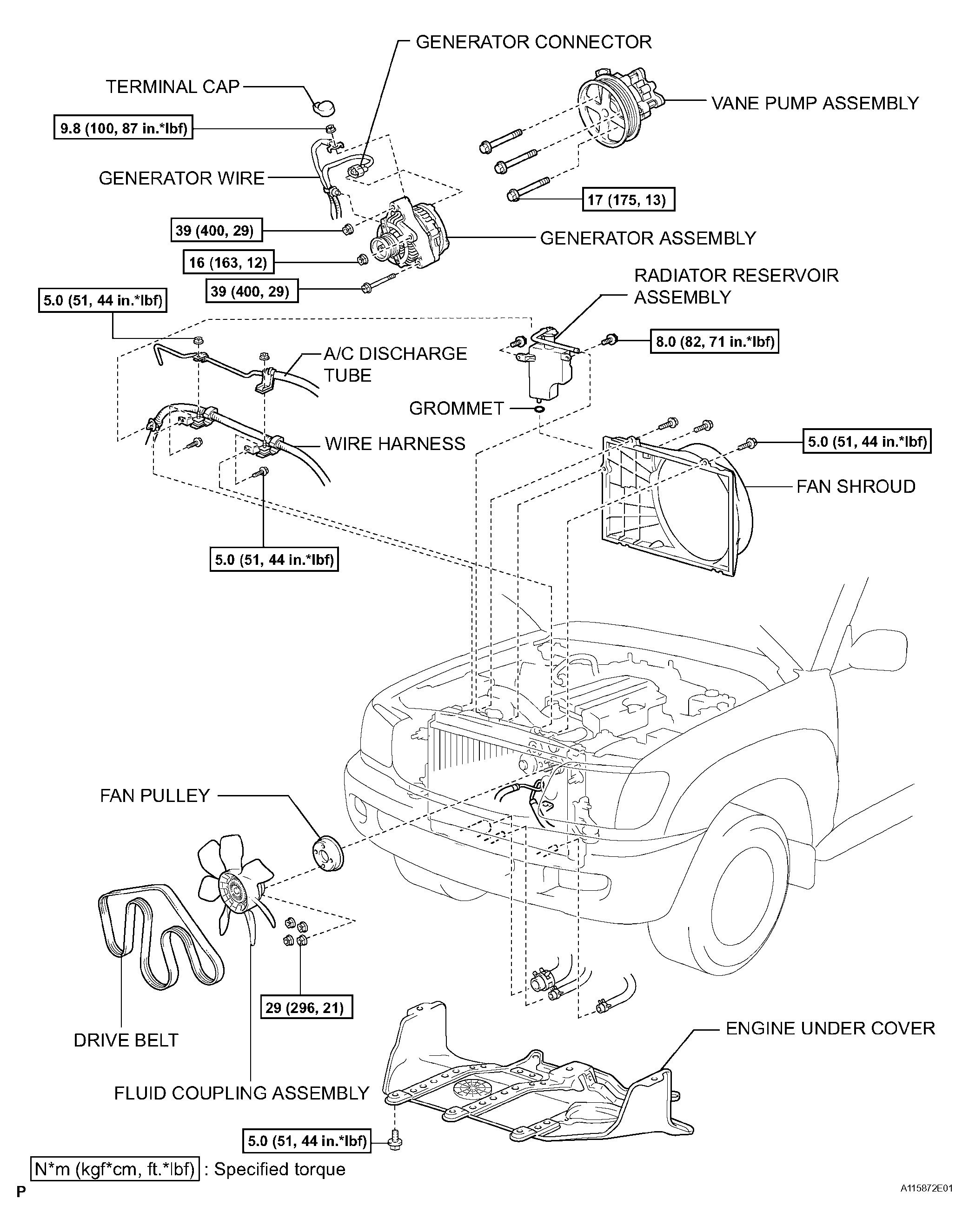

Fig 1: Identifying Generator Components & Replacements (1 Of 2)
G04436391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

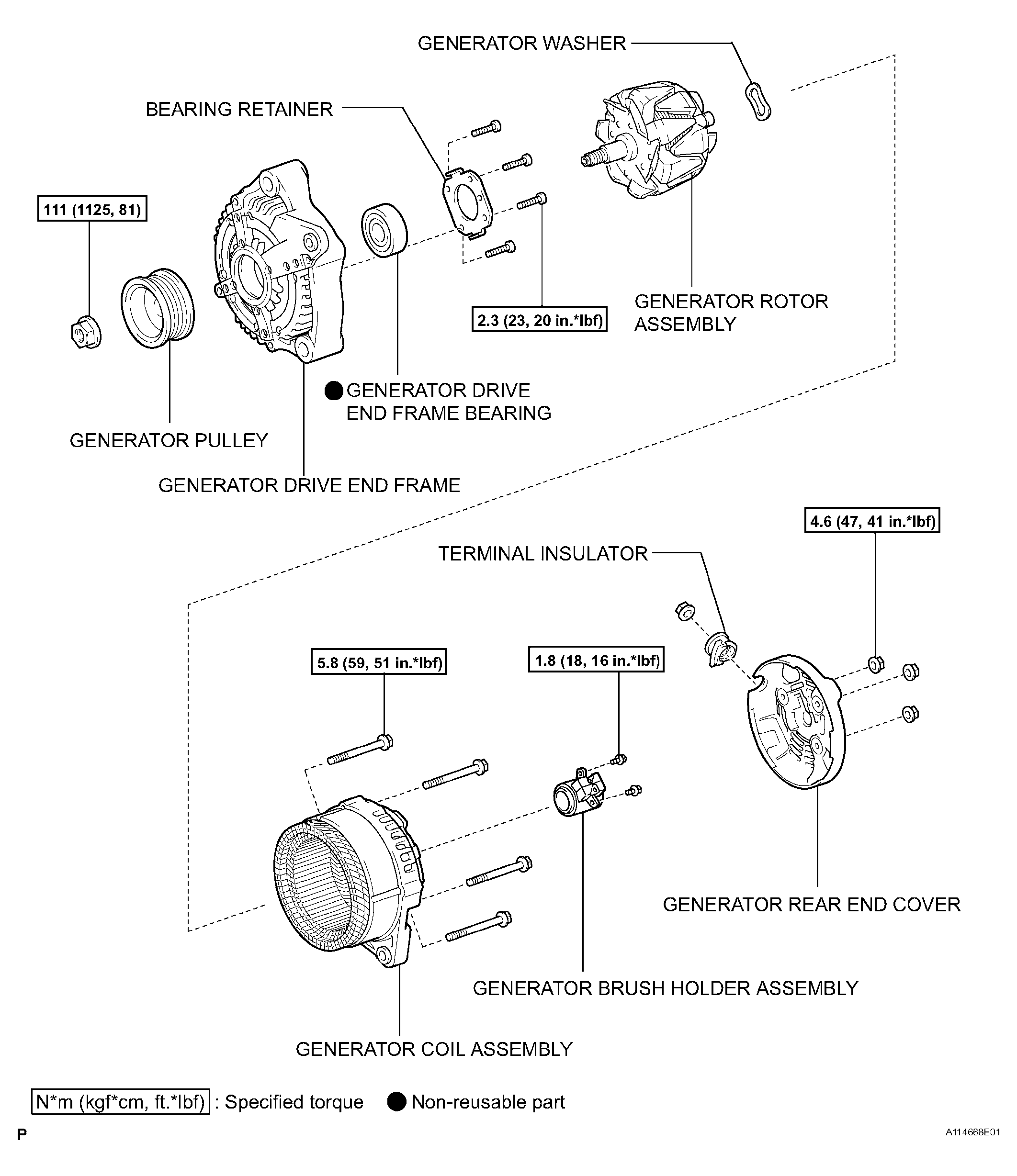

Fig 2: Identifying Generator Components & Replacements (2 Of 2)
G04436392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
