Charging System: Generator: Disassembly

REMOVE GENERATOR REAR END COVER

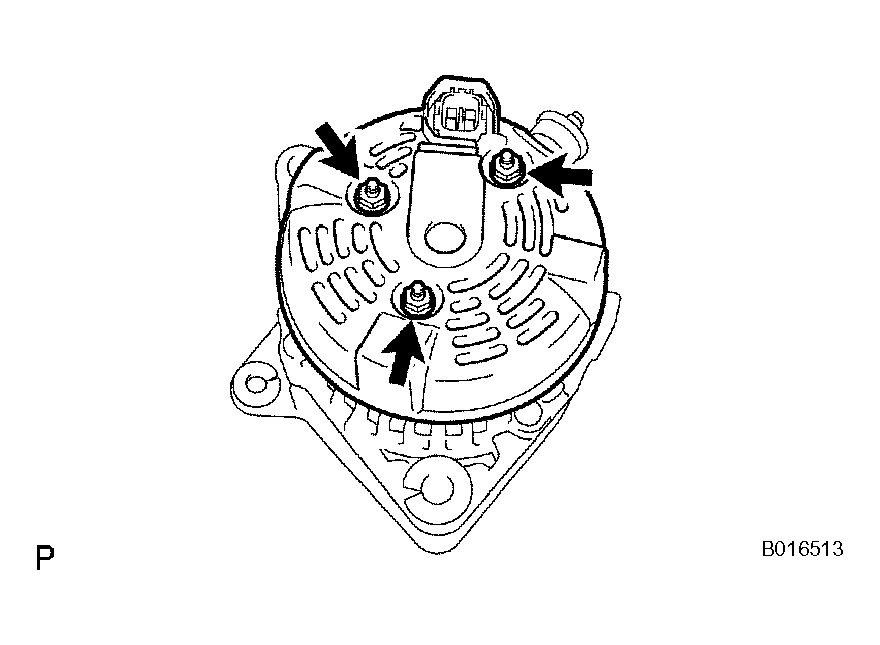

1. Remove the 3 nuts and end cover.

  Fig 1: Removing End Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

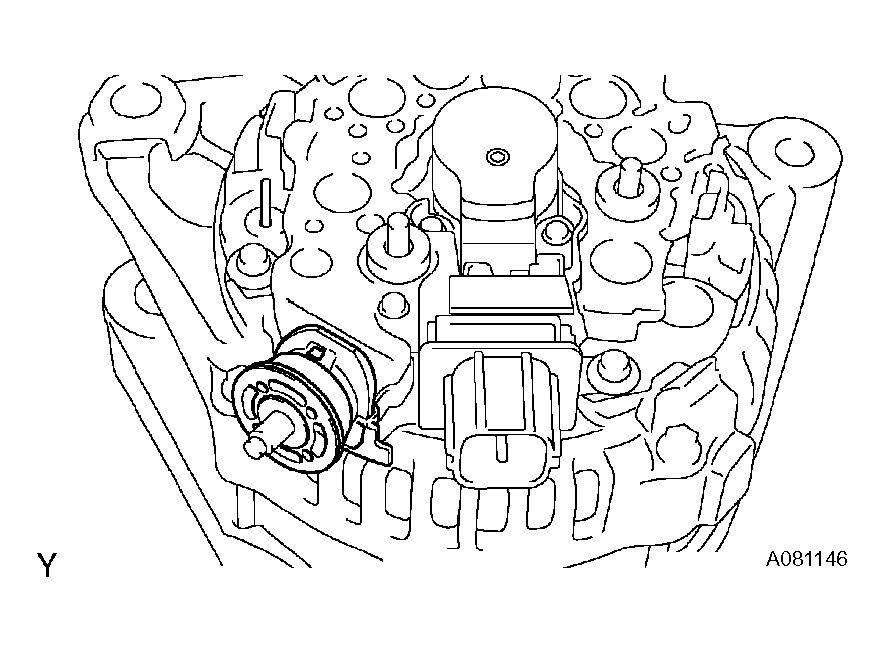

2. Remove the terminal insulator.

  Fig 2: Identifying Terminal Insulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR BRUSH HOLDER ASSEMBLY

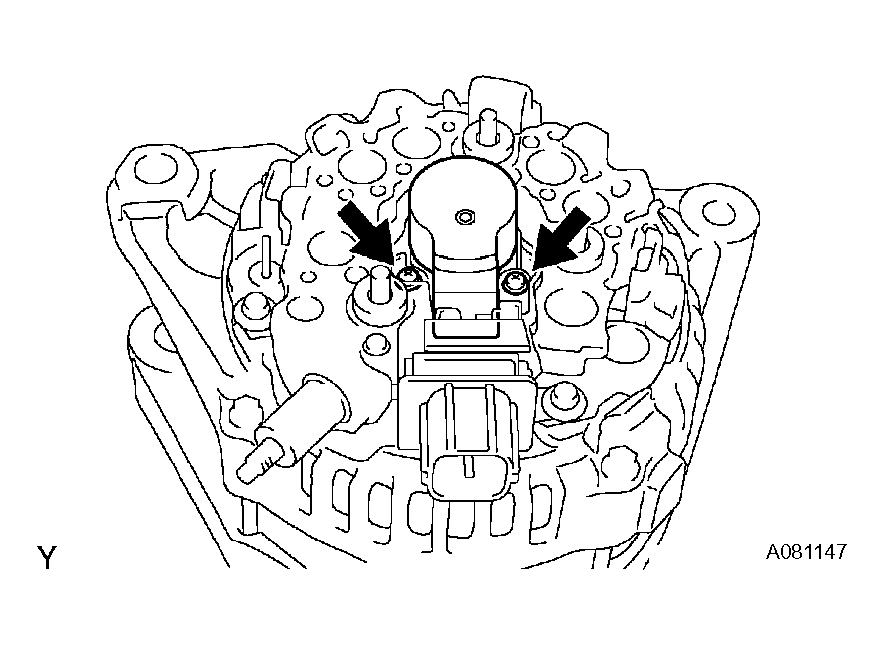

1. Remove the 2 screws and brush holder.

  Fig 3: Removing Brush Holder
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR PULLEY

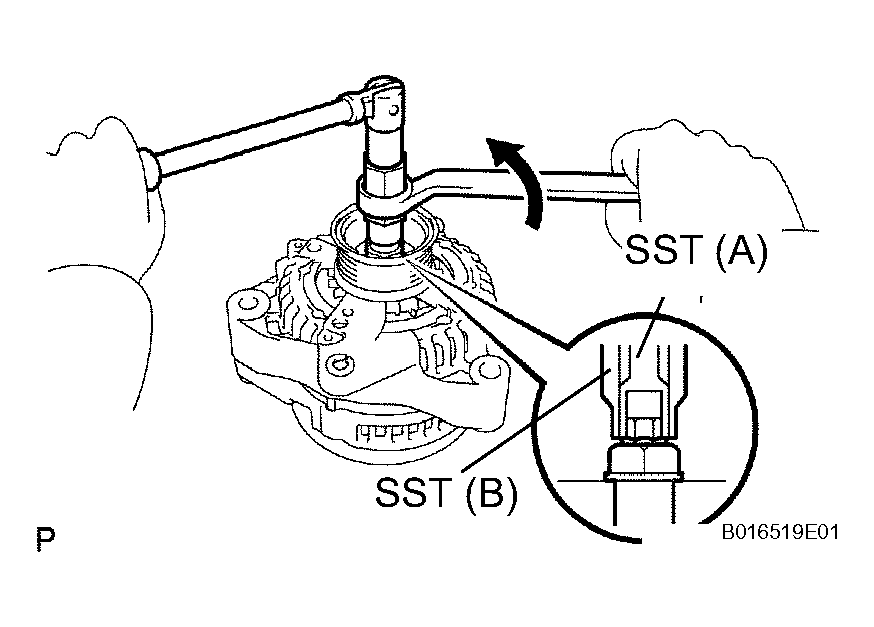

1. Hold SST (A) with a torque wrench, and tighten SST (B) clockwise to the specified torque.
  SST 09820-63011

  Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

  Fig 4: Tightening SST (B) Clockwise
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check that SST (A) is secured to the rotor shaft.
3. Mount SST (C) in a vise.

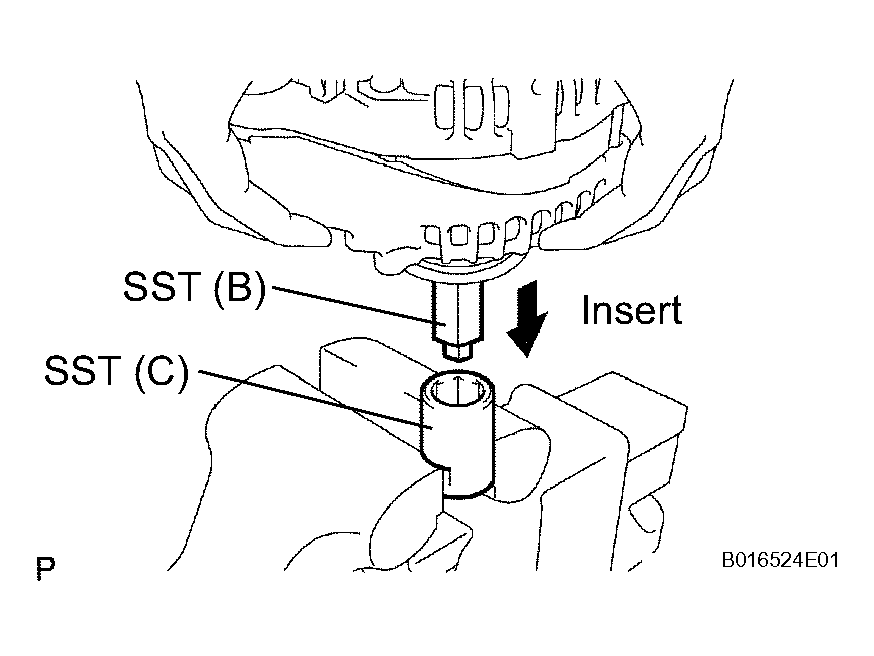

4. Insert SST (B) into SST (C), and attach the pulley nut to SST (C).

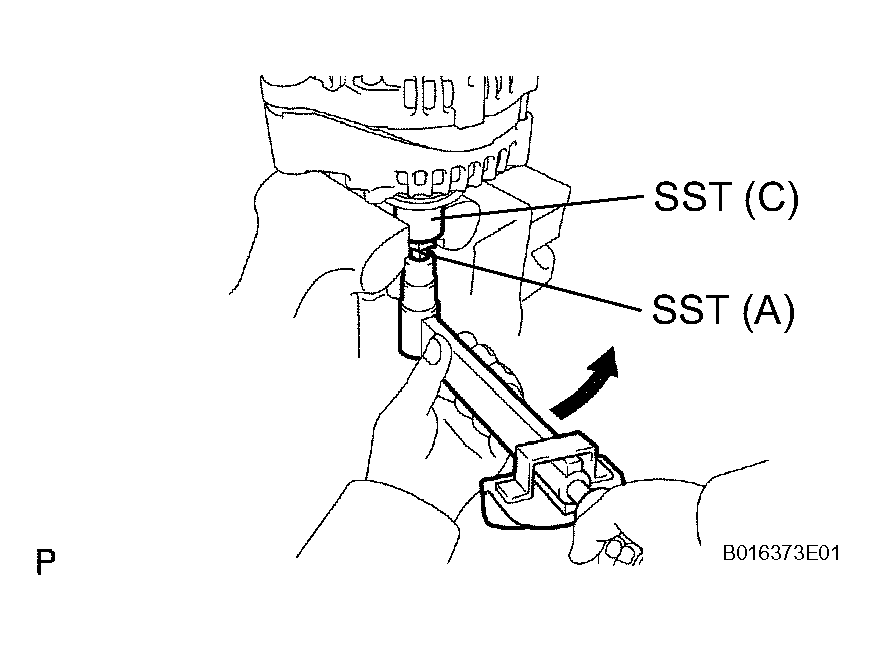

5. To loosen the pulley nut, turn SST (A) in the direction shown in Fig 6 .
  NOTE: To prevent damage to the rotor shaft, do not loosen the pulley nut more than one half of a turn.

  Fig 6: Turning SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the generator from SST (C).

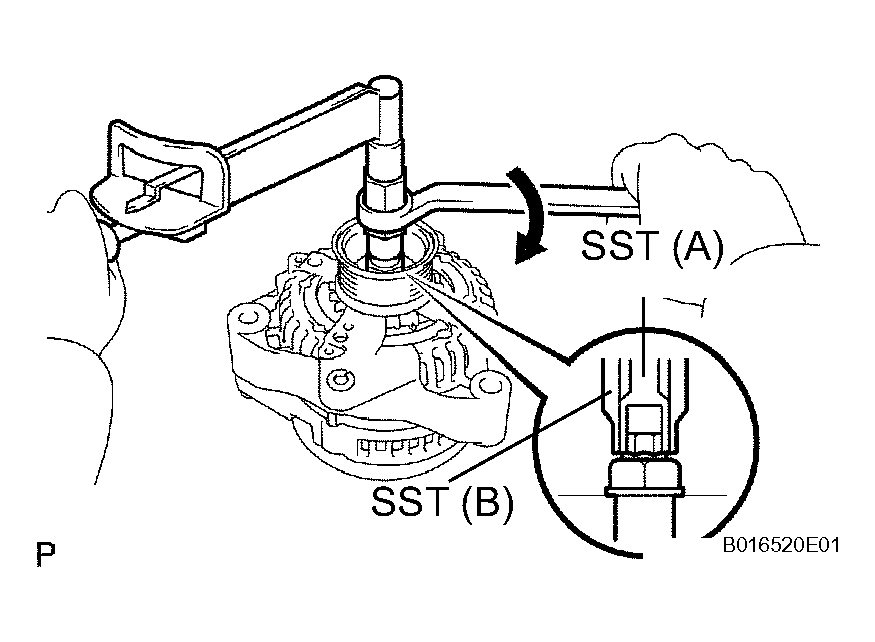

7. Turn SST (B), and remove SST (A and B).

  Fig 7: Removing SST (A & B)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Remove the pulley nut and pulley.
REMOVE GENERATOR COIL ASSEMBLY

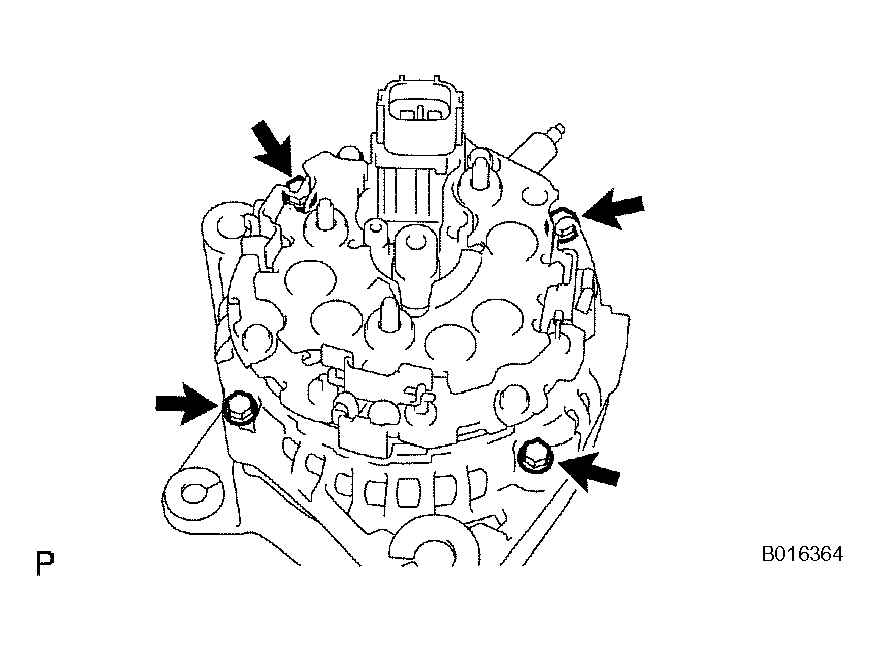

1. Remove the 4 bolts.

  Fig 8: Removing Generator Coil Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

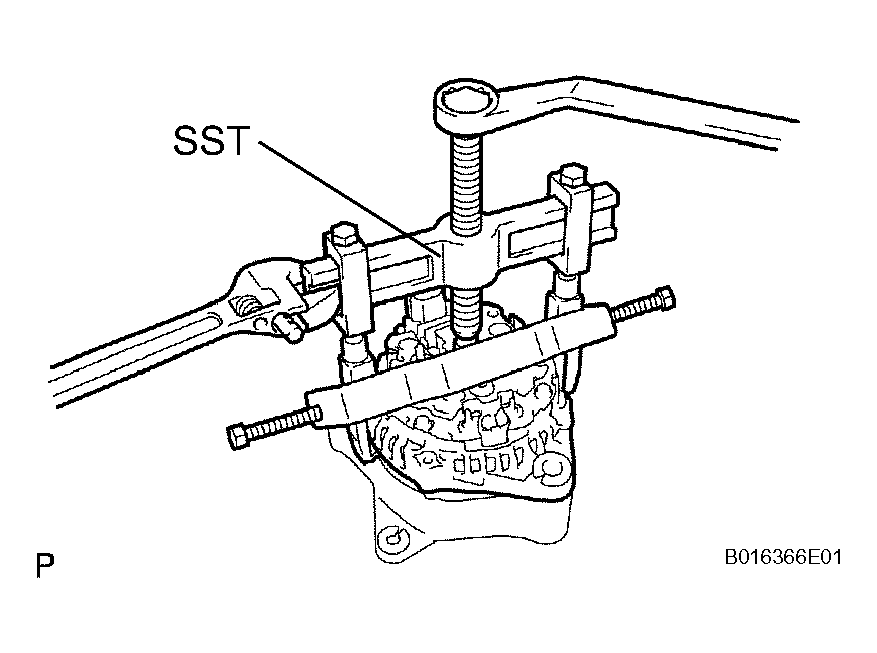

2. Using SST, remove the coil assembly.
  SST 09950-40011 (09951-04020, 09952-04010, 09953-04020, 09954-04010, 09955-04071, 09957-04010, 09958-04011)

  Fig 9: Removing Coil Assembly Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the generator washer.
REMOVE GENERATOR ROTOR ASSEMBLY
