Charging System: Generator: Removal
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
- REMOVE DRIVE BELT (See REMOVAL
)
- REMOVE FLUID COUPLING ASSEMBLY
- Disconnect the 2 oil cooler hoses from the fan shroud.
- Remove the 3 bolts and disconnect the fan shroud from the radiator.
- Remove the 4 nuts and disconnect the fan with fluid coupling from the vehicle at the same time.
- DISCONNECT VANE PUMP ASSEMBLY (See REMOVAL
)

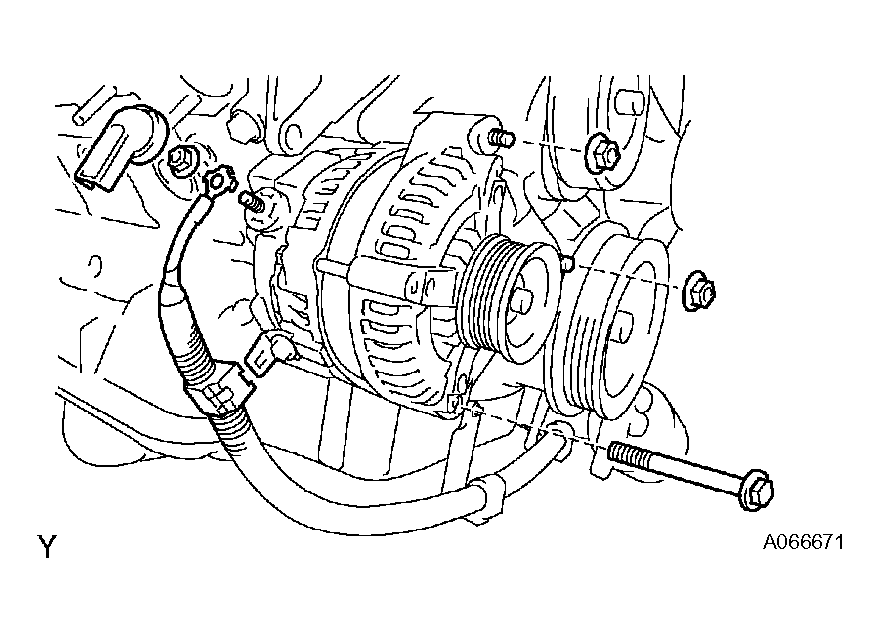

- REMOVE GENERATOR ASSEMBLY
- Disconnect the generator connector.
- Remove the terminal cap and nut, and disconnect the generator wire.
- Disconnect the generator wire clamp from the cord clip on the generator.
- Remove the bolt, 2 nuts and generator.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
