Automatic Transaxle Assembly: Components

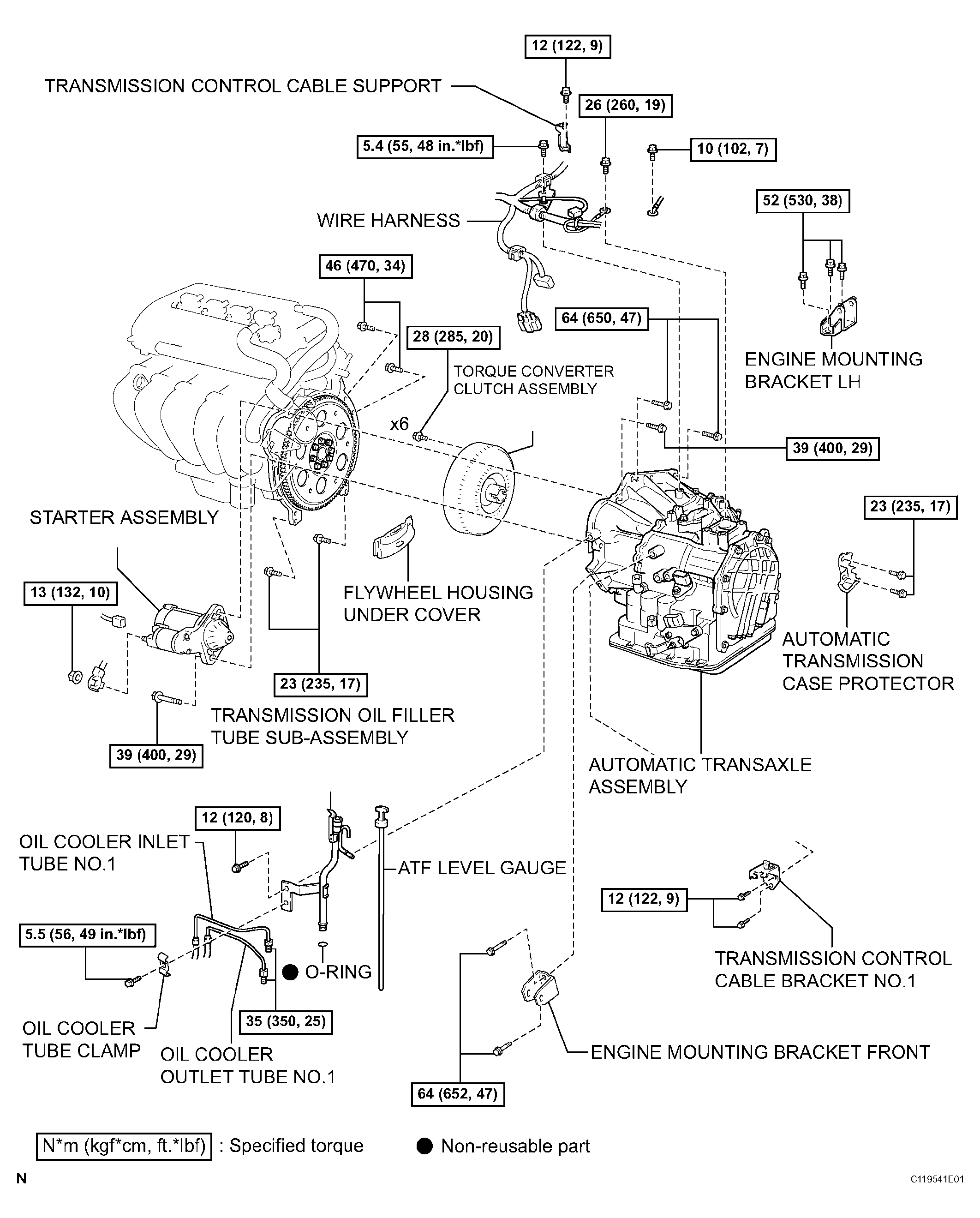

Fig 1: Identifying Automatic Transaxle Assembly Replacement Components With Torque Specifications
G04463431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
