Fuel Pump Control Circuit: Wiring Diagram

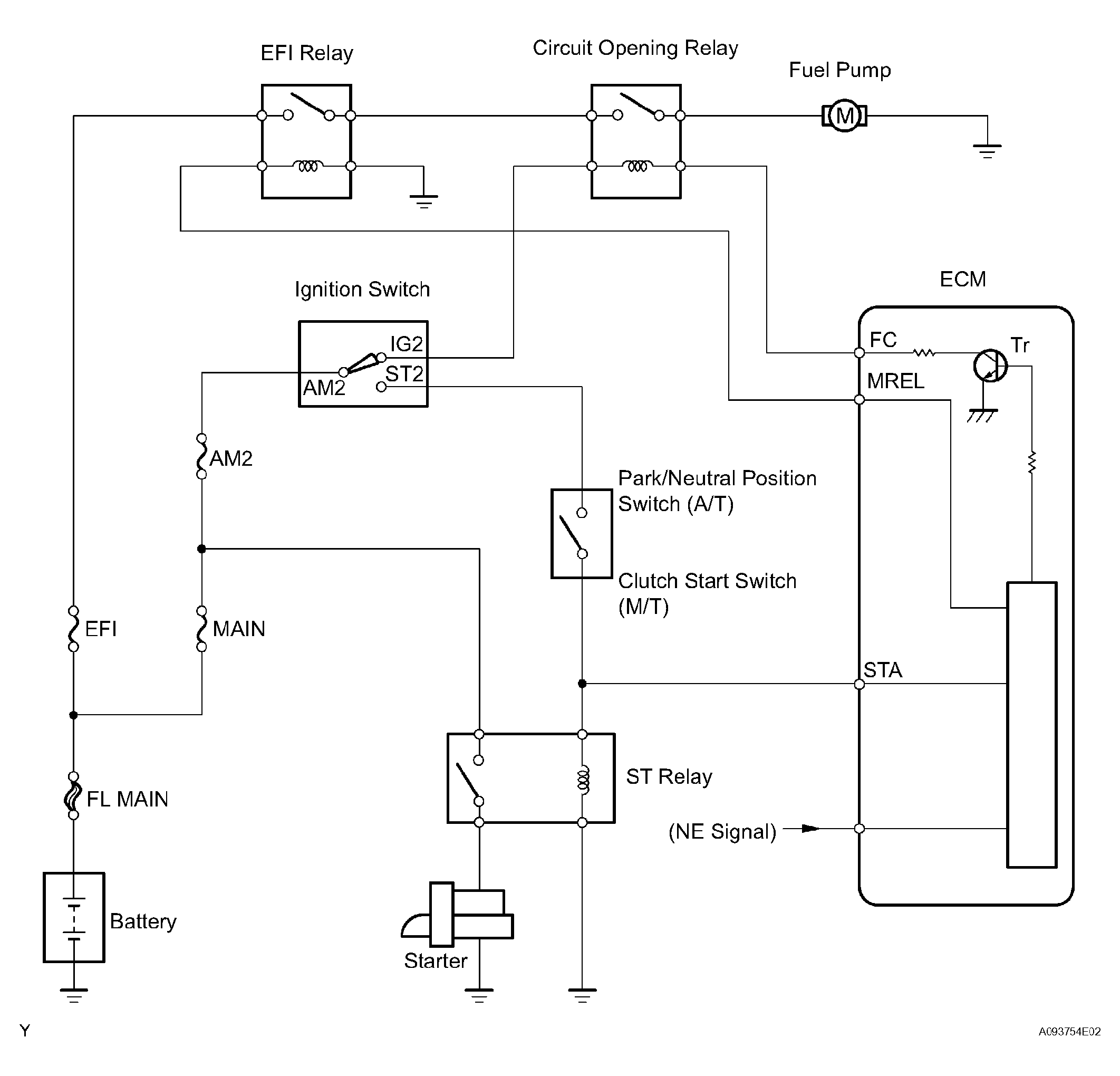

Fig 1: Fuel Pump Control Circuit - Wiring Diagram (1 Of 2)
G04460075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

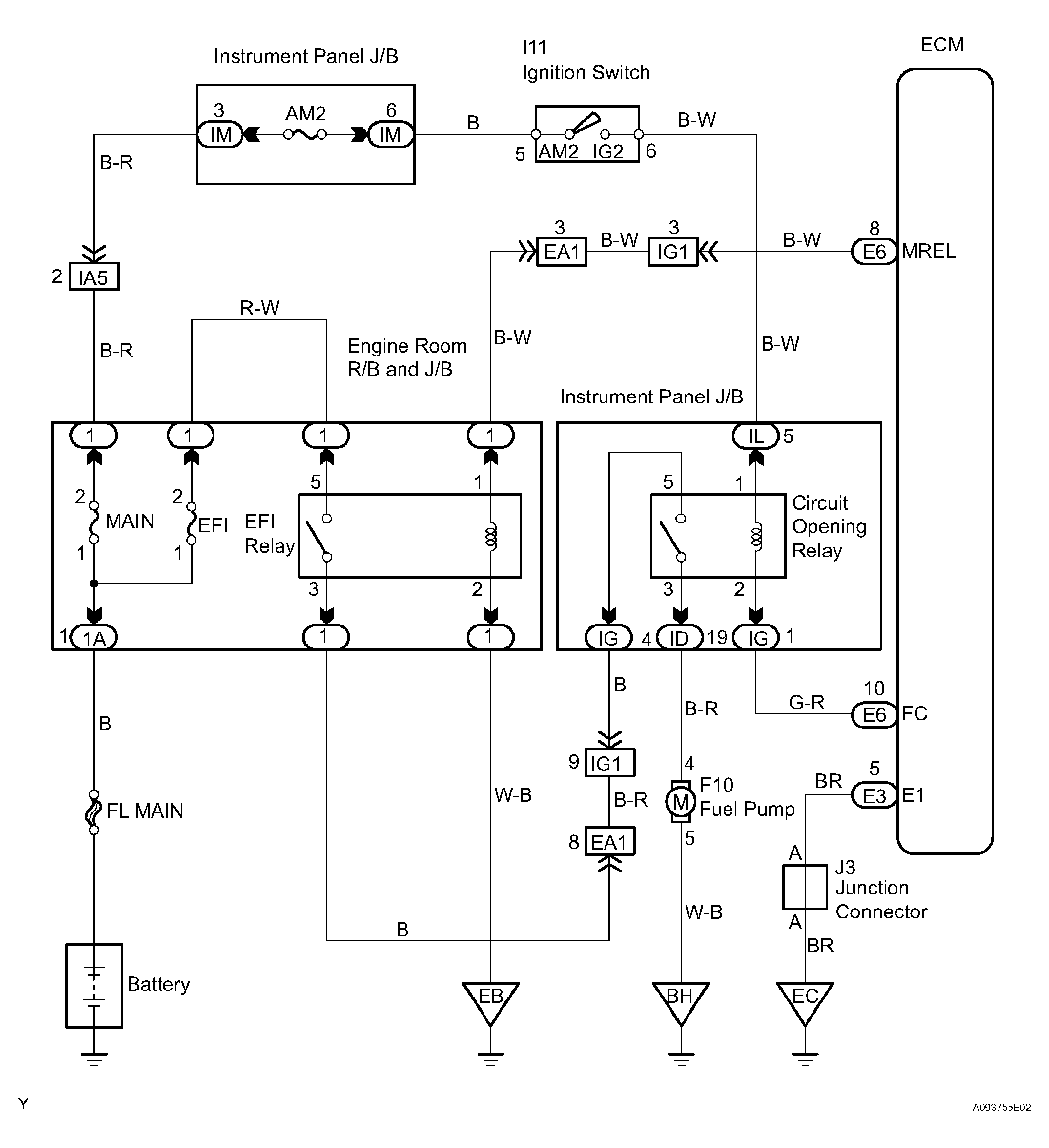

Fig 2: Fuel Pump Control Circuit - Wiring Diagram (2 Of 2)
G04460076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
