DTC P0110 Intake Air Temperature Circuit: DTC P0112 Intake Air Temperature Circuit Low Input: DTC P0113 Intake Air Temperature Circuit High Input: Wiring Diagram

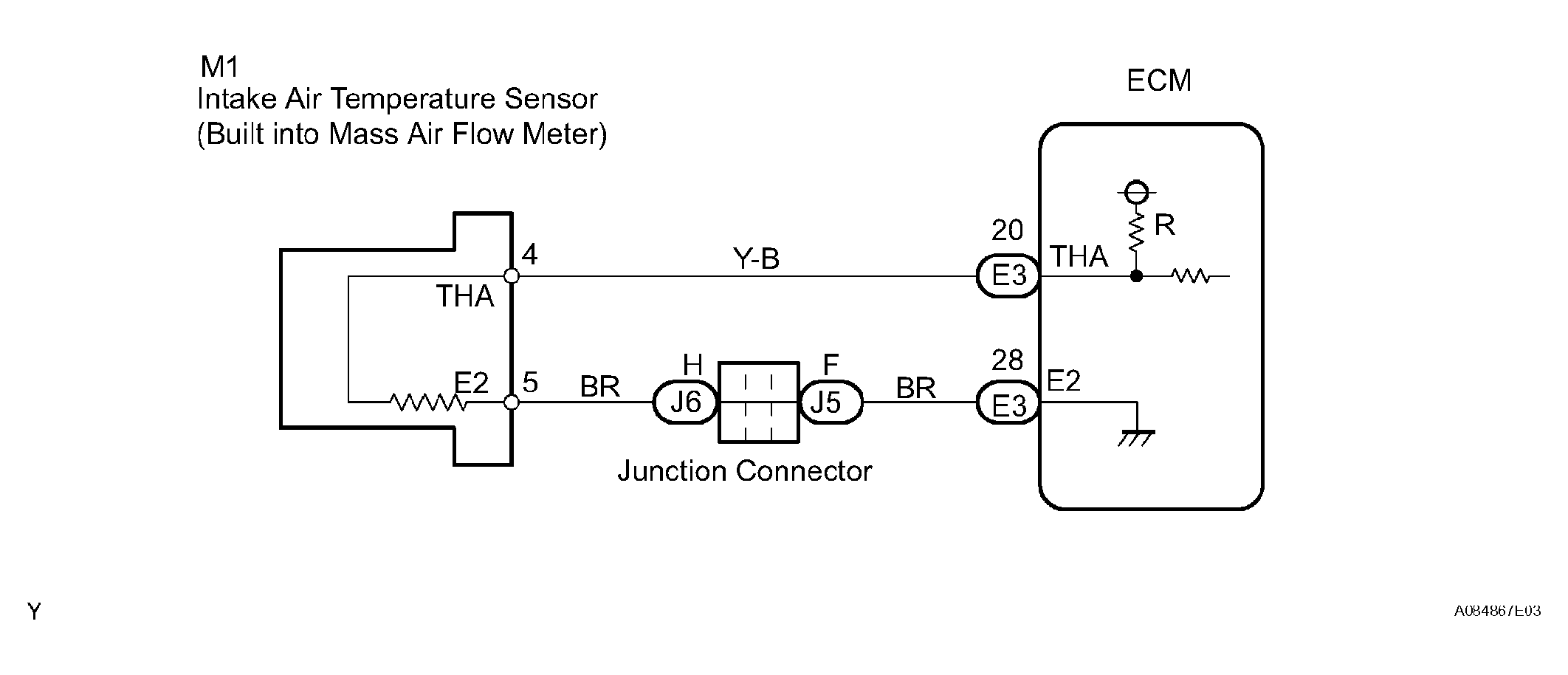

Fig 1: Intake Air Temperature Circuit - Wiring Diagram
G04460155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
