DTC P0120 Throttle / Pedal Position Sensor / Switch "A" Circuit: DTC P0122 Throttle / Pedal Position Sensor / Switch "A" Circuit Low Input: DTC P0123 Throttle / Pedal Position Sensor / Switch "A" Circuit High Input: Description
HINT:
These DTCs relate to the Throttle Position (TP) sensor.

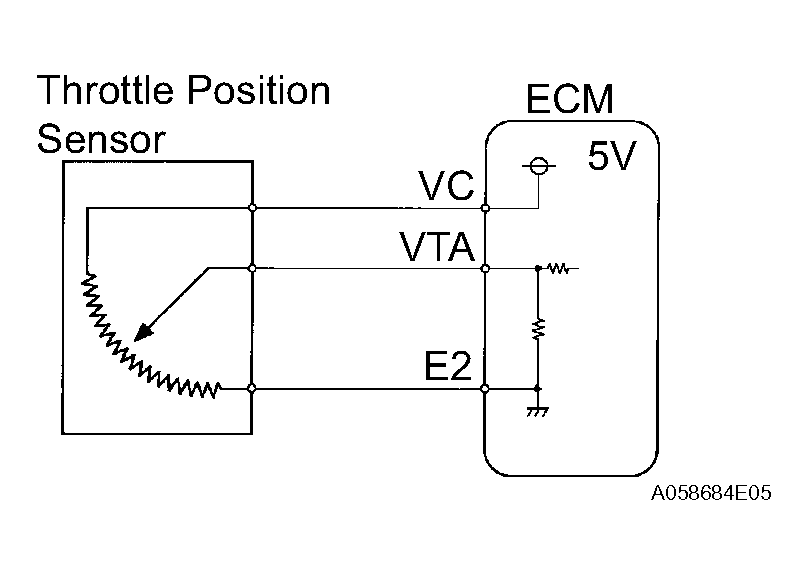

The TP sensor is mounted on the throttle body and detects the throttle valve opening angle. When the throttle valve is fully closed, the sensor transmits a signal voltage of approximately 0.3 to 1.0 V to terminal VTA of the ECM. This signal voltage increases in proportion to the opening angle of the throttle valve, reaching approximately 3.2 to 4.9 when the throttle valve is fully open.
The ECM determines the vehicle driving conditions from these signals and uses this information in functions such as air-fuel ratio correction, power increase correction and fuel-cut control.
DTC DETECTION CONDITIONS AND TROUBLE AREA
| DTC No. | DTC Detection Conditions | Trouble Areas |
|---|---|---|
| P0120 | Output voltage of VTA quickly fluctuates beyond upper and lower malfunction thresholds (1 trip detection logic) |
|
| P0122 | Output voltage of VTA remains less than 0.1 V for 5 seconds or more (1 trip detection logic) |
|
| P0123 | Output voltage of VTA remains more than 4.9 V for 5 seconds or more (1 trip detection logic) |
|
HINT:
- Fail-safe mode: When any of these DTCs are set, the ECM enters fail-safe mode. During fail-safe mode, the ECM cuts fuel intermittently. Fail-safe mode continues until a pass condition is detected and the ignition switch is turned OFF.
- When any of these DTCs are set, check the throttle valve opening angle using an intelligent tester or OBD II scan tool.THROTTLE VALVE POSITIONS
Throttle Valve Fully Closed Throttle Valve Fully Open Trouble Areas 0 % 0 % VC circuit open
VTA circuit open or shortApproximately 100 % Approximately 100 % E2 circuit open
