Monitor Result

Refer to detailed information (See READINESS MONITOR DRIVE PATTERN ).

The test value and test limit information are described as shown in THERMOSTAT UNIT CONVERSION . Check the monitor result and test values after performing the monitor drive pattern (Refer to "Confirmation Monitor").

TID (Test Identification Data) is assigned to each emissions-related component.
TLT (Test Limit Type):
If TLT is 0, the component is malfunctioning when the test value is higher than the test limit.

If TLT is 1, the component is malfunctioning when the test value is lower than the test limit.
CID (Component Identification Data) is assigned to each test value.
Unit Conversion is used to calculate the test value indicated on generic OBD II scan tools.

Key - off

Thermostat

THERMOSTAT UNIT CONVERSION

TLT

CID

Unit Conversion

Description of Test Data

Description of Test Limit

1

$01

Multiplied by 0.0156 subtract 2 (kPa)

Test value for small leak (P0456):) Refer to ⁽¹⁾

Malfunction criteria (0 kPa)

1

$02

Multiplied by 0.0156 subtract 2 (kPa)

Test value for gross leak (P0455): Refer to ⁽¹⁾

Malfunction criteria (0 kPa)

1

$03

Multiplied by 0.0156 subtract 2 (kPa)

Test value for vacuum pump stuck OFF (P2401):
Refer to ⁽¹⁾

Malfunction criteria (0 kPa)

1

$04

Multiplied by 0.0156 subtract 2 (kPa)

Test value for vacuum pump stuck ON (P2402):
Refer to ⁽¹⁾

Malfunction criteria (0 kPa)

1

$05

Multiplied by 0.0156 subtract 2 (kPa)

Test value for vent valve stuck OFF (vent) (P2420):
Refer to ⁽¹⁾

Malfunction criteria (0 kPa)

1

$06

Multiplied by 0.0156 subtract 2 (kPa)

Test value for vent valve stuck ON (closed) (P2419):
Refer to ⁽¹⁾

Malfunction criteria (0 kPa)

1

$07

Multiplied by 0.0156 subtract 2 (kPa)

Test value for 0.02 inch orifice low flow (P043E):
Refer to ⁽¹⁾

Malfunction criteria (0 kPa)

1

$08

Multiplied by 0.0156 subtract 2 (kPa)

Test value for 0.02 inch orifice high flow (P043F):
Refer to ⁽¹⁾

Malfunction criteria (0 kPa)

1

$11

Multiplied by 0.0156 subtract 2 (kPa)

Test value for purge VSV stuck close (P0441):
Refer to ⁽¹⁾

Malfunction criteria (0 kPa)

1

$12

Multiplied by 0.0156 subtract 2 (kPa)

Test value for purge VSV stuck open (P0441):
Refer to ⁽¹⁾

Malfunction criteria (0 kPa)

1

$13

Multiplied by 0.0156 subtract 2 (kPa)

Test value for purge flow (P0441): Refer to ⁽¹⁾

Malfunction criteria (0 kPa)

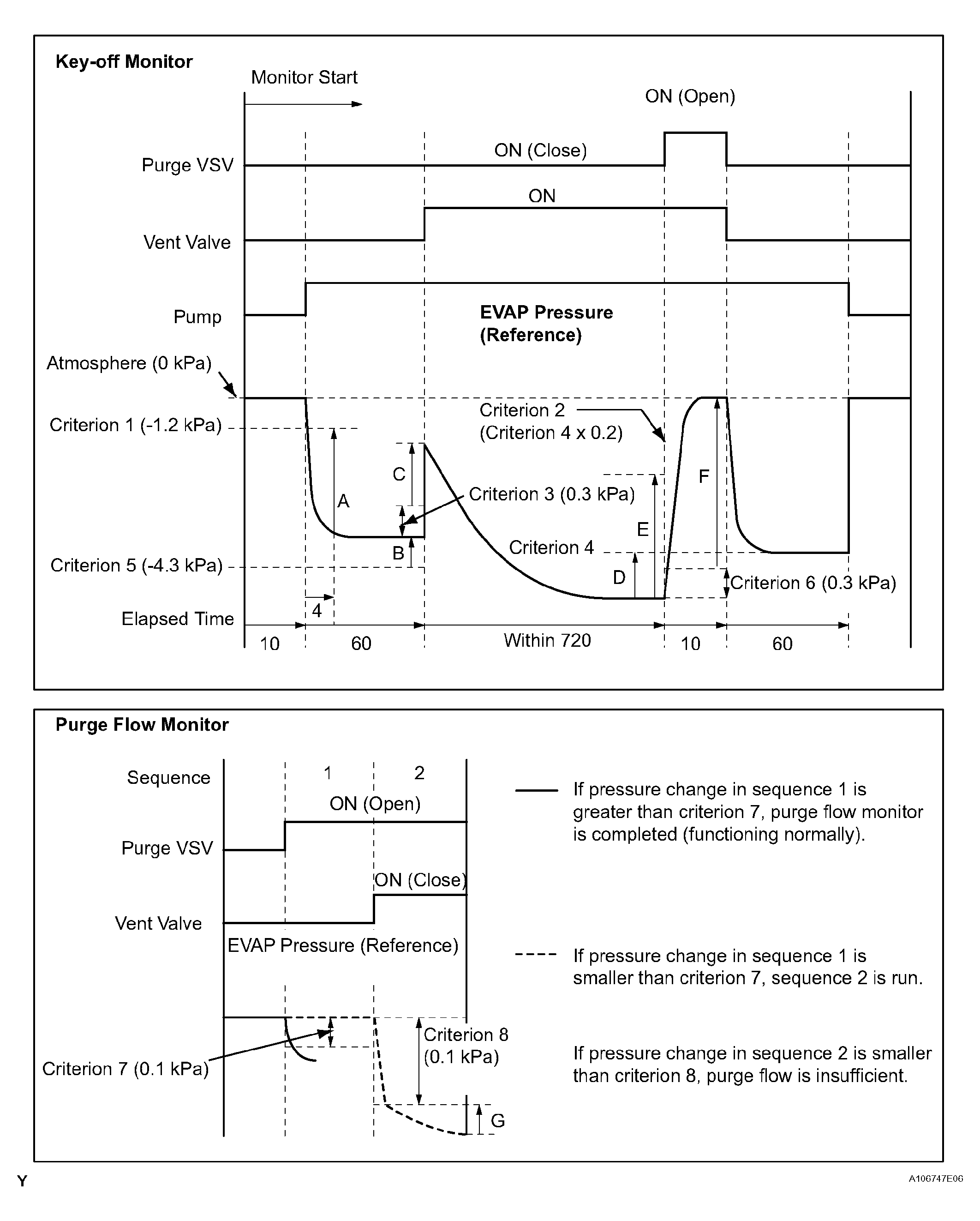

⁽¹⁾	Pressures A to G are indicated as shown in the following diagram below.

Fig 1: Key Off And Purge Flow Monitor Diagram

G04460378
