Charging System (1ZZ-FE): Generator: Reassembly

1. Place the generator drive end frame on the generator pulley.
2. Install the generator rotor onto the generator drive end frame.
3. Install the generator washer onto the generator rotor.
   Fig 1: Installing Generator Rotor Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

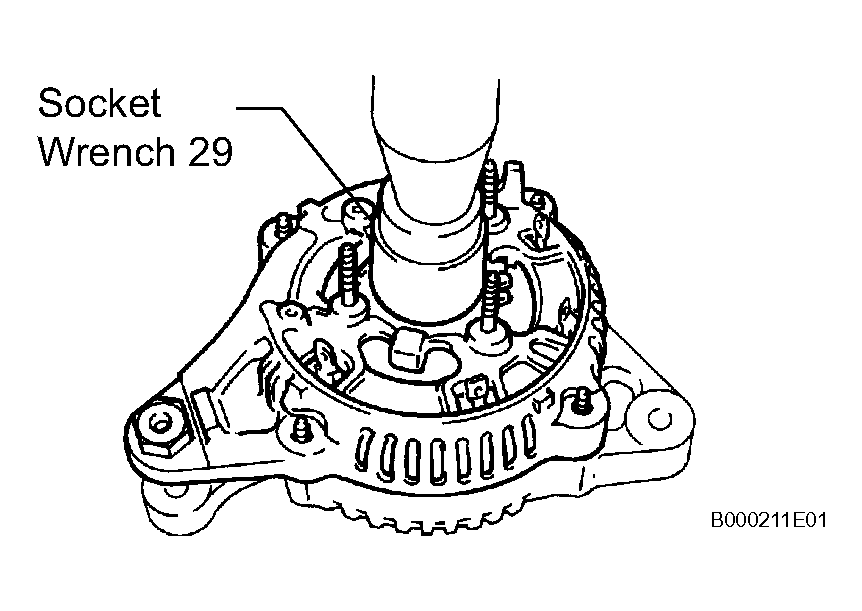

1. Using a socket wrench 29 and a press, slowly push the generator rectifier end frame in.
   Fig 2: Pushing Generator Rectifier End Frame In Using Socket Wrench

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

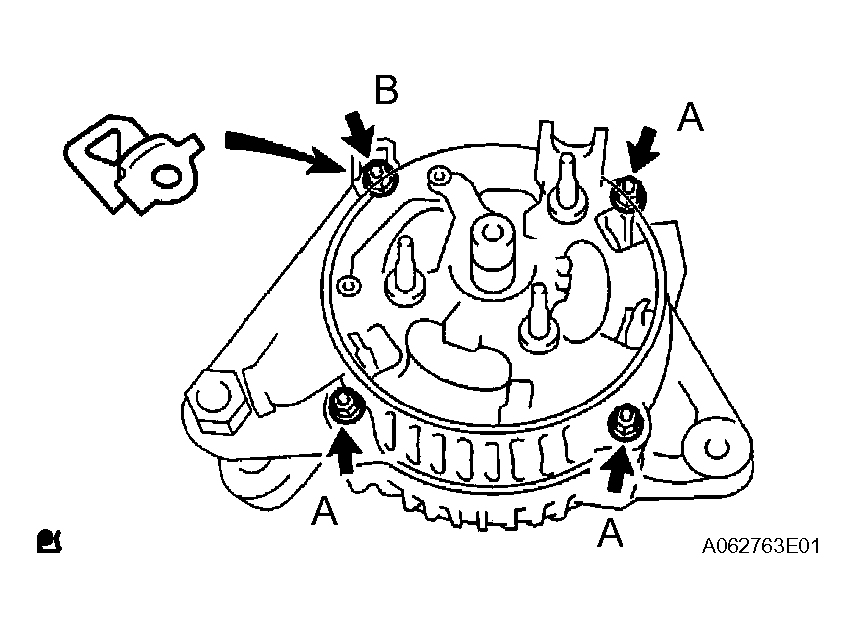

2. Install the generator cord clip and 4 nuts.

   Torque: Nut A

   4.5 N*m (46 kgf*cm, 40 in.*lbf)

   Nut B

   5.4 N*m (55 kgf*cm, 48 in.*lbf)

3. Install the 4 terminal insulators onto the generator rectifier end frame.

1. Install the generator holder with rectifier with the 4 screws.
   Fig 3: Installing Generator Holder With Rectifier With Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 2.9 N*m (30 kgf*cm, 26 in.*lbf)

1. Install the generator regulator with the 3 screws.

   Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

1. Install the generator plate seal onto the generator rectifier end frame.

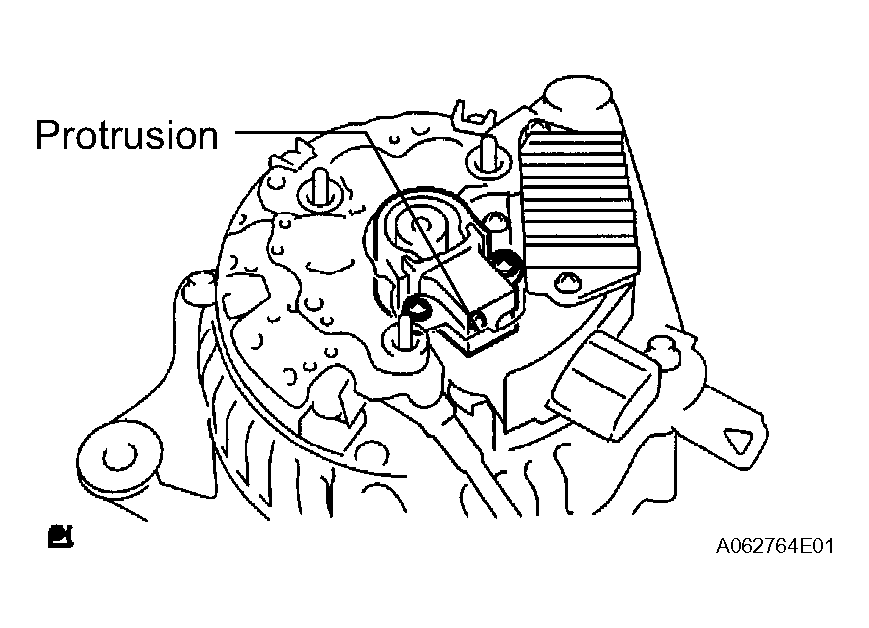

2. Install the generator brush holder with the 2 screws.

   Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

   NOTE: Make sure that the generator brush holder is in the correct direction.
3. Install the generator brush cover onto the generator brush holder.
   Fig 4: Installing Generator Brush Holder With Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the generator rear and cover it with the 2 nuts.

   Torque: 4.4 N*m (45 kgf*cm, 39 in.*lbf)

5. Install the terminal plate.

   Torque: Bolt

   3.9 N*m (40 kgf*cm, 35 in.*lbf)

   Nut

   4.4 N*m (45 kgf*cm, 39 in.*lbf)

6. Install the terminal insulator with the nut.

   Torque: 4.1 N*m (42 kgf*cm, 36 in.*lbf)

SST 09820-63010 (09820-06010, 09820-06020)

HINT:

1. Install the generator pulley onto the rotor shaft by tightening the pulley nut by hand.

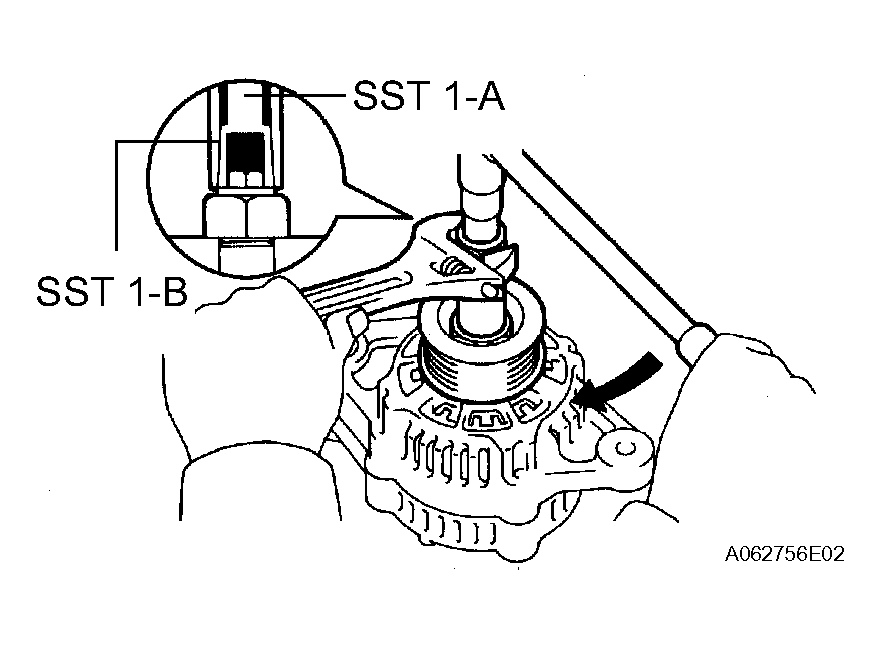

2. Hold SST 1-A with a torque wrench, then tighten SST 1-B counterclockwise to the specified torque.

   Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

   NOTE: Securely fix SST on the generator rotor shaft.
   Fig 5: Tightening SST 1-B Counterclockwise To Specified Torque

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Clamp SST 2 in a vise.
4. Insert SST 1-A and B into SST 2, then attach the pulley nut to SST 2.
   Fig 6: Attaching Pulley Nut To SST 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Tighten the pulley nut, then turn SST 1-A in the direction shown in the illustration.

   Torque: 111 N*m (1,132 kgf*cm, 82 ft.*lbf)

6. Remove the generator from SST 2.
   Fig 7: Turning SST 1-A

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Turn SST 1-B, then remove SST 1-A and B.
8. Turn the generator pulley, then check that the generator pulley moves smoothly.
   Fig 8: Removing SST 1-A And B

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
