DTC B1781 Front Occupant Classification Sensor RH Circuit Malfunction: Wiring Diagram

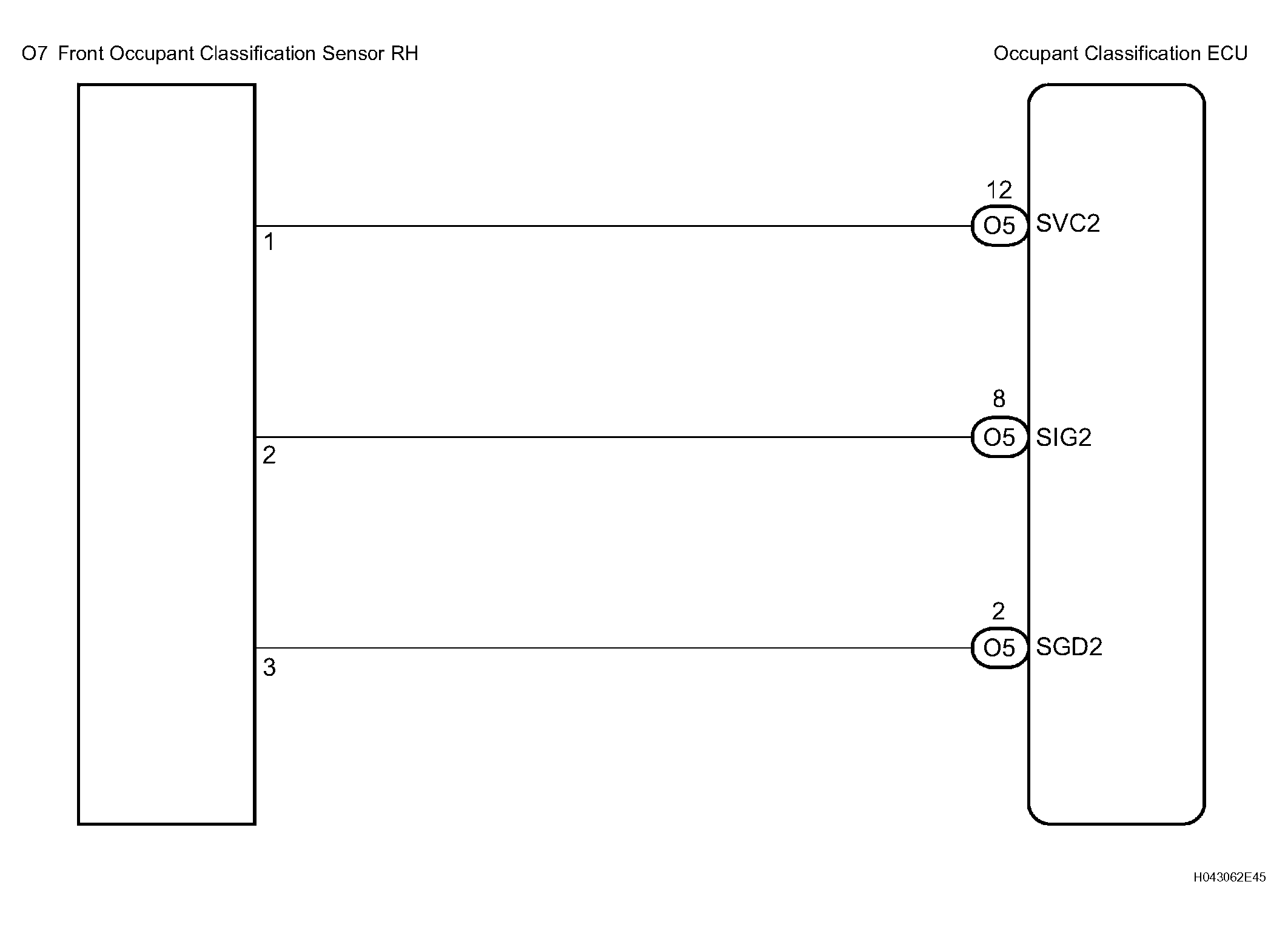

Fig 1: Front Occupant Classification Sensor RH Circuit Wiring Diagram
G04466049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
