Steering Column Assembly: Reassembly

  1. INSTALL IGNITION OR STARTER SWITCH ASSEMBLY
    1. Install the ignition or starter switch assembly to the steering column bracket assembly with the 2 screws.
  2. INSTALL UN-LOCK WARNING SWITCH ASSEMBLY
    1. Install the un-lock warning switch assembly.
    2. Connect the un-lock warning switch assembly connector to the ignition or starter switch assembly.
  3. INSTALL IGNITION SWITCH LOCK CYLINDER ASSEMBLY
    1. Make sure that the ignition switch lock cylinder assembly is at the ACC position.
    2. Install the ignition switch lock cylinder assembly.

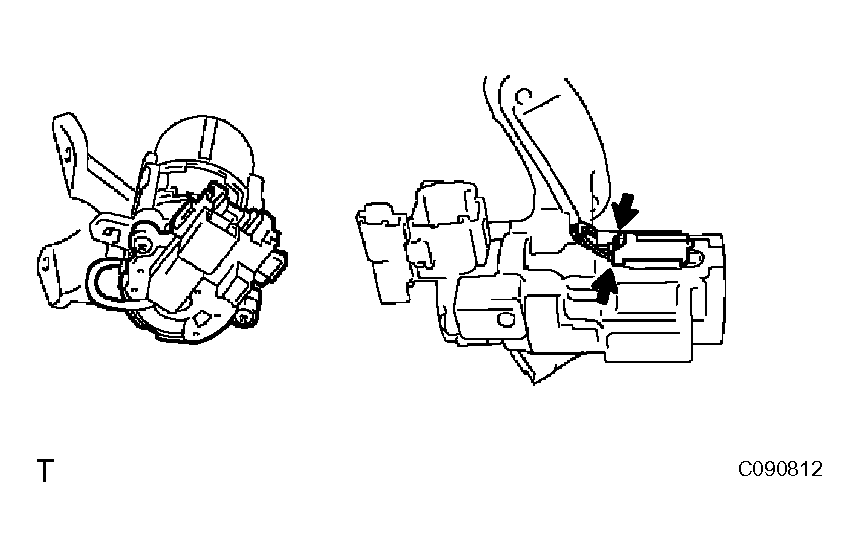

      3. Fig 1: Installing Ignition Switch Lock Cylinder Assembly
      G04465588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL STEERING COLUMN UPPER BRACKET ASSEMBLY
    1. Temporarily install the steering column upper with switch bracket assembly and steering column upper clamp with 2 new tapered-head bolts.
    2. Tighten the 2 tapered-head bolts until the bolt heads break off.

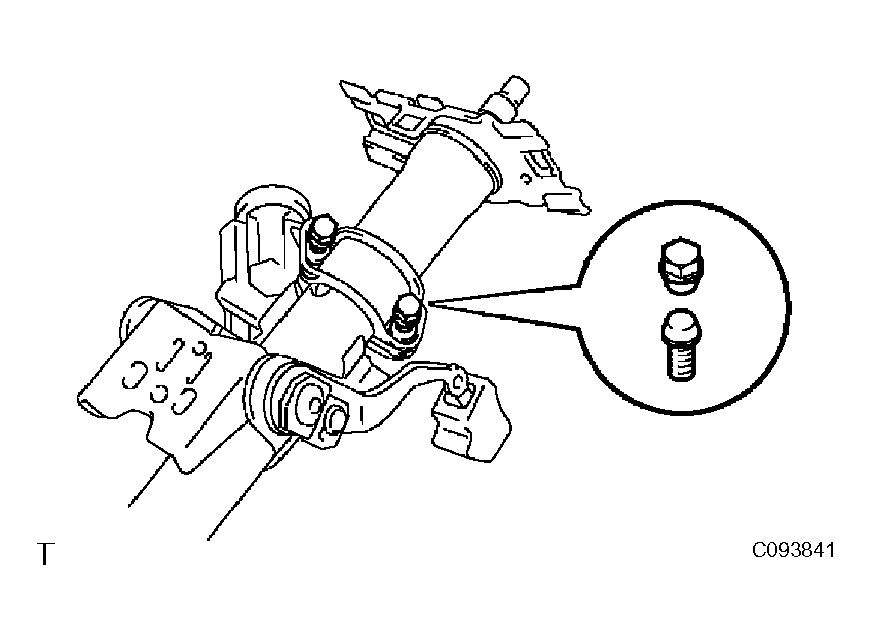

      Fig 2: Tightening Tapered-Head Bolts Until Bolt Heads Break Off
      G04465589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
