Yaw Rate And Deceleration Sensor: Components

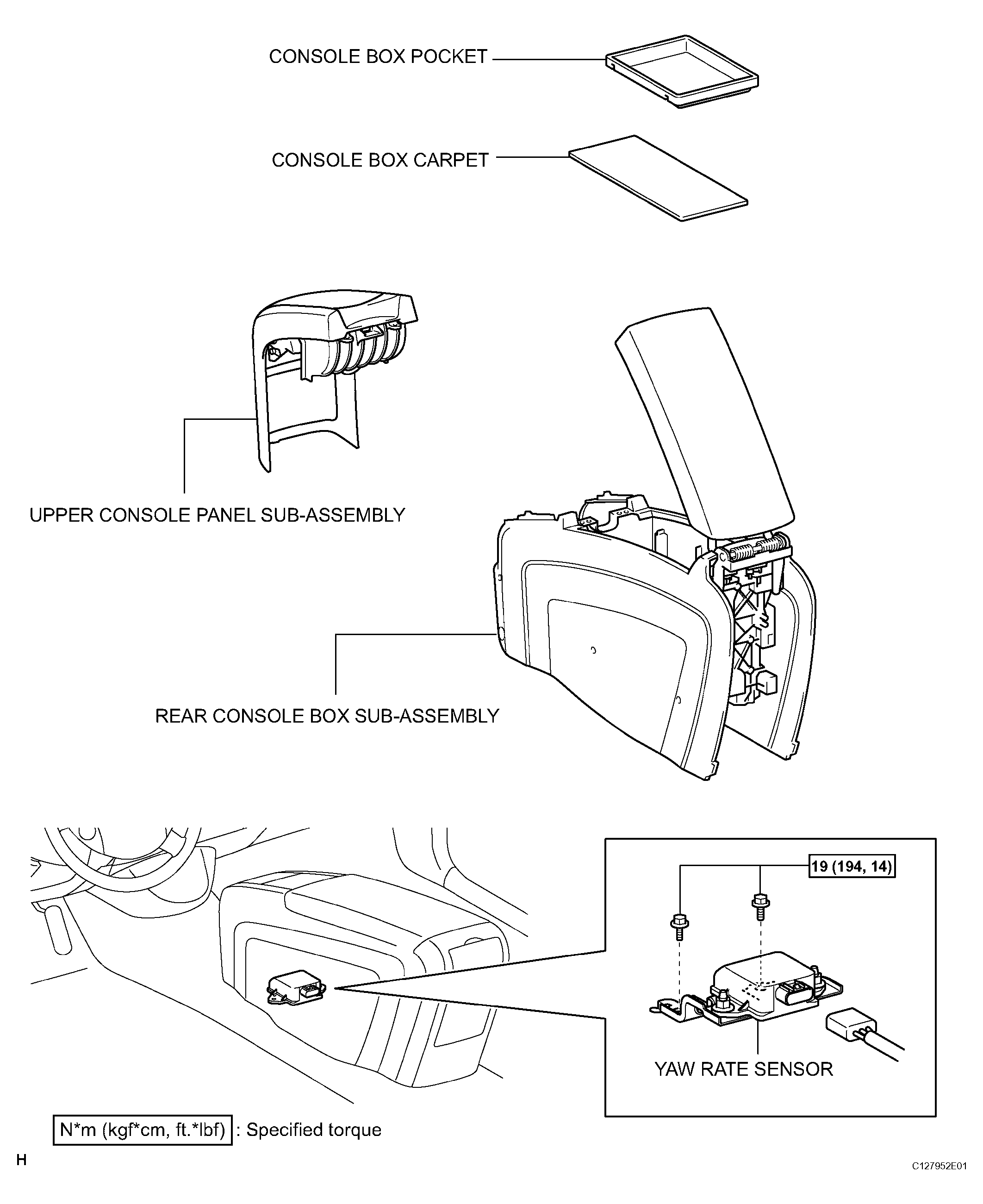

Fig 1: Identifying Yaw Rate And Deceleration Sensor Components
G04474746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
