Smart Key System and Wireless Door Lock Control: Notes

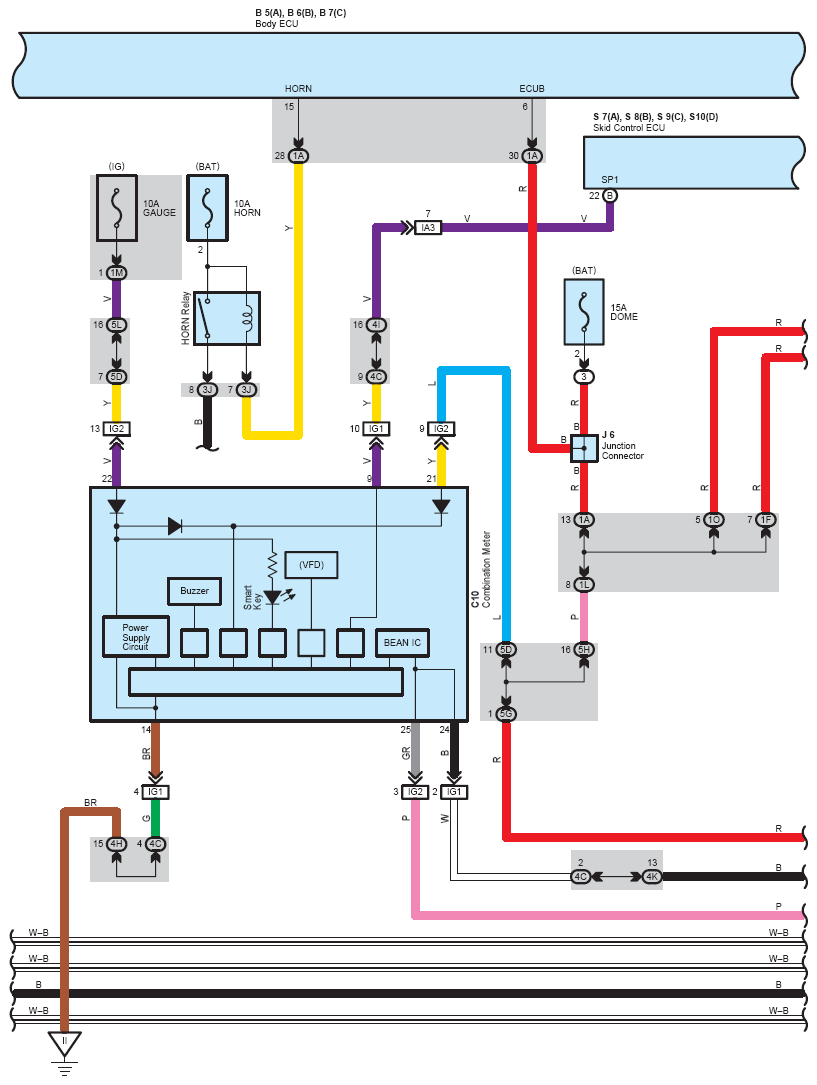

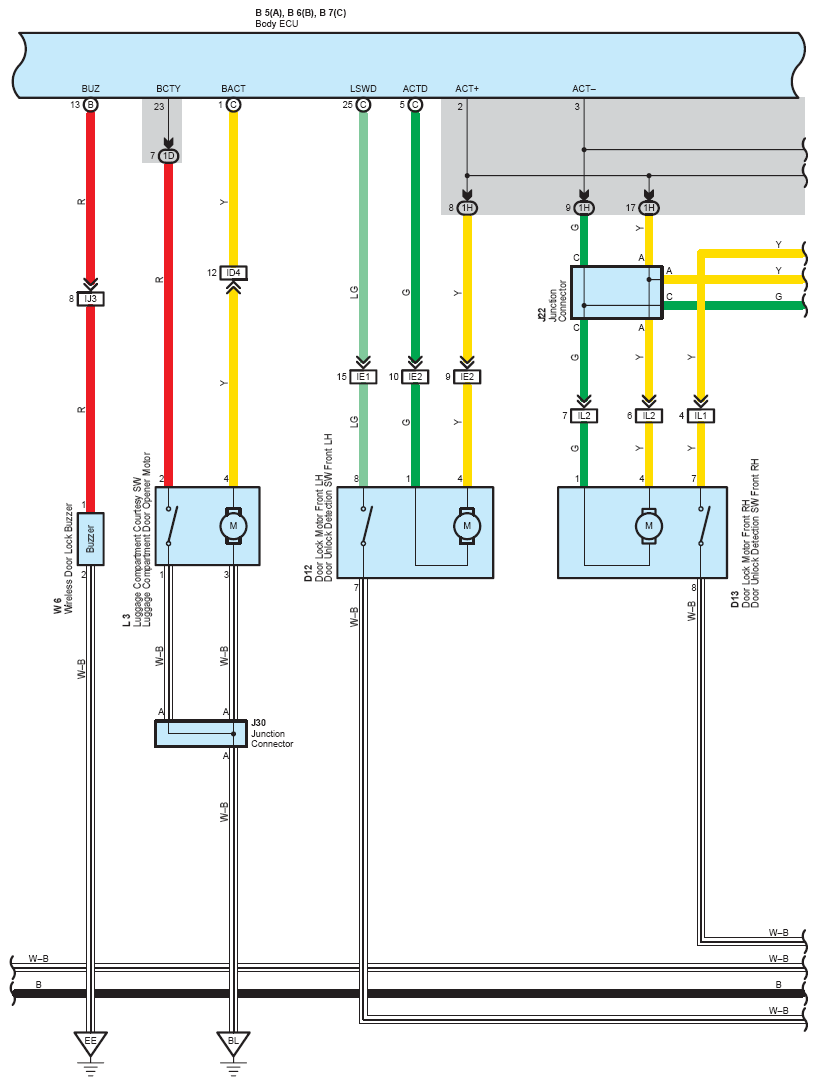

Fig 1: Smart Key System And Wireless Door Lock Control System Wiring Diagram (1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

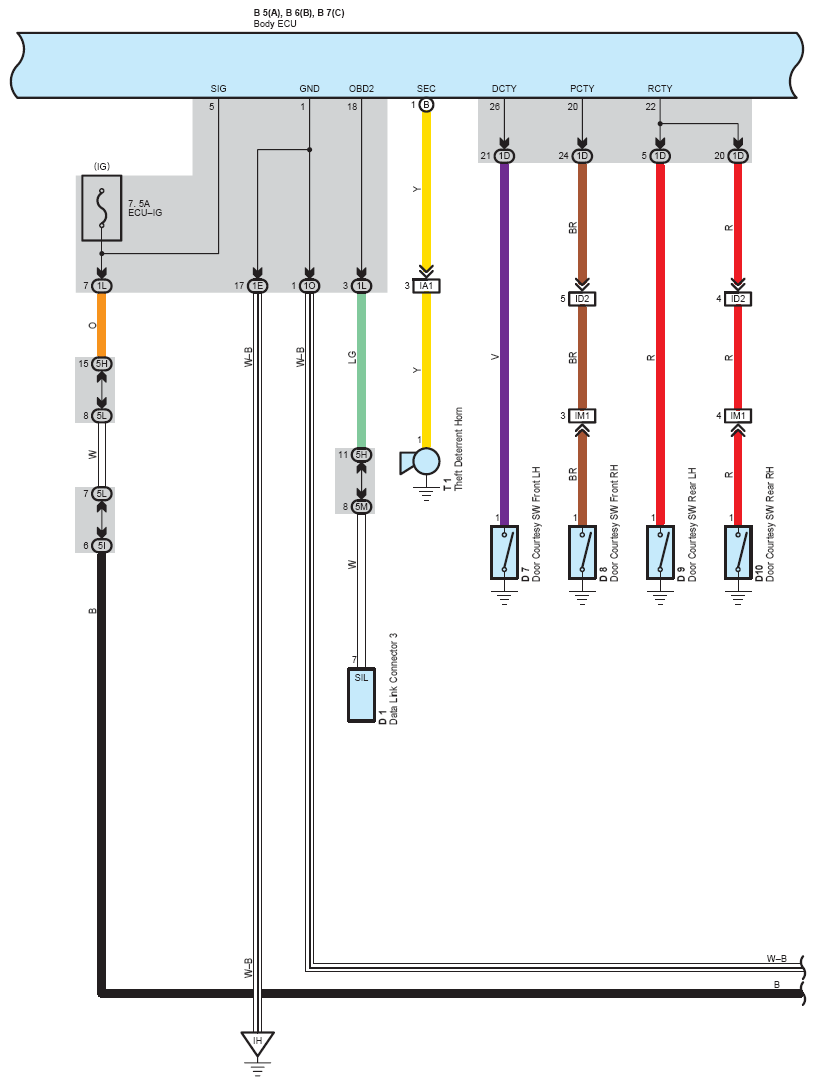

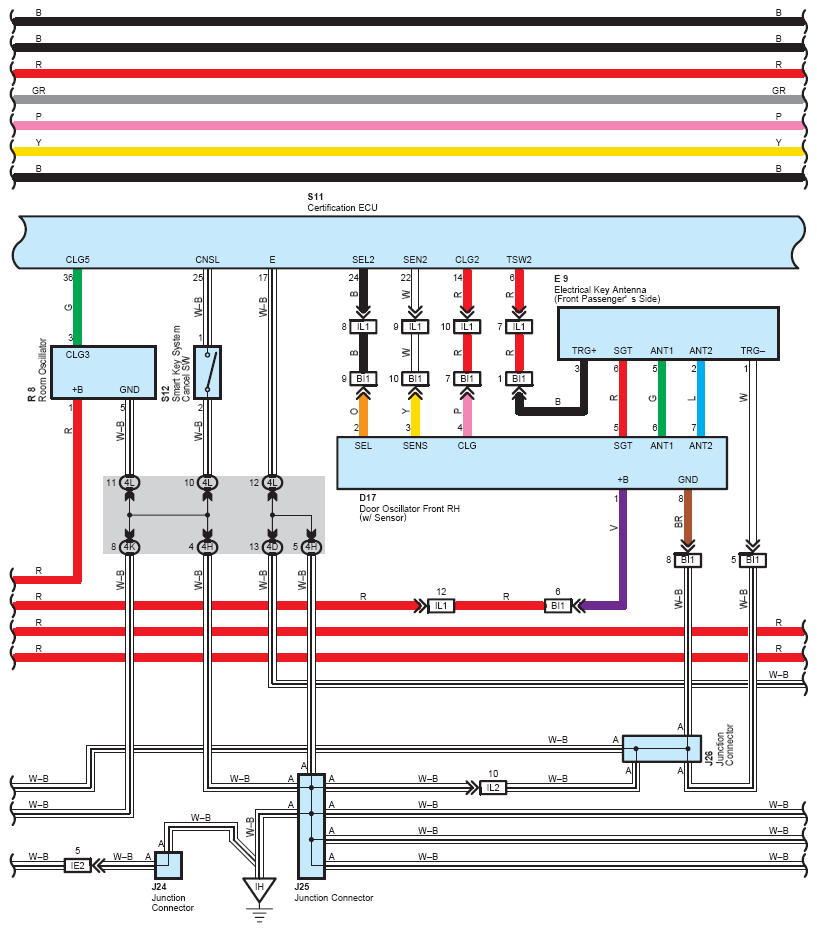

Fig 2: Smart Key System And Wireless Door Lock Control System Wiring Diagram (2 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

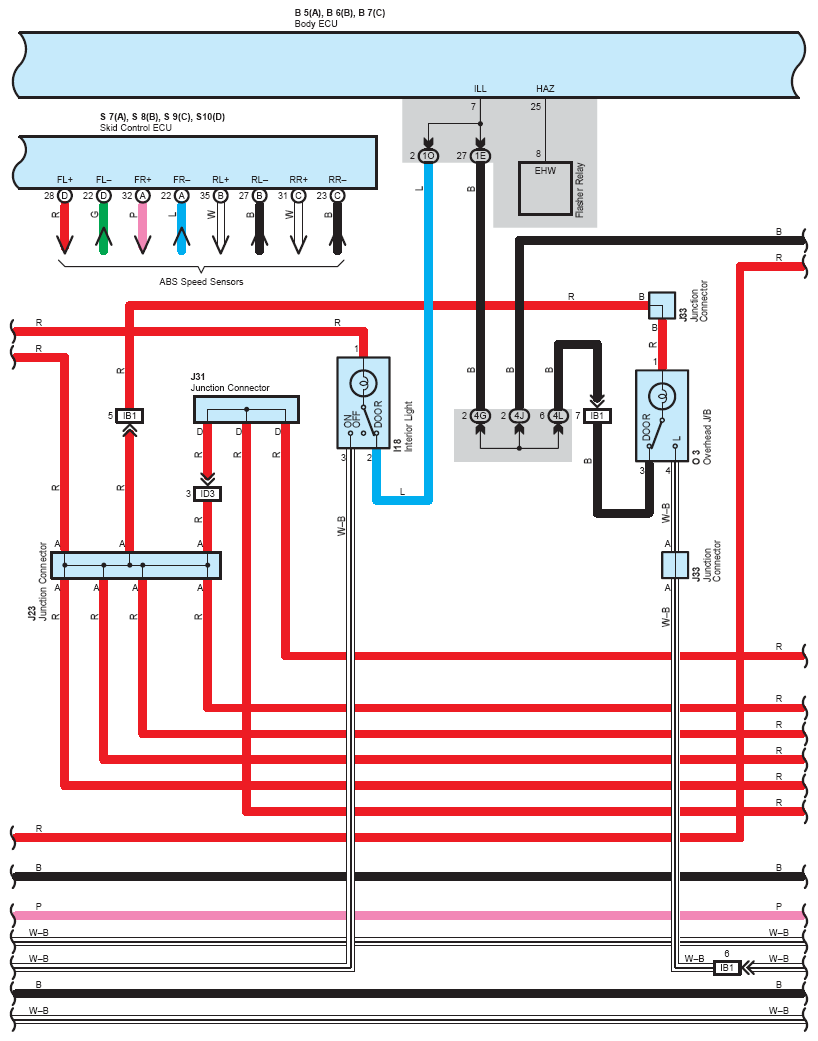

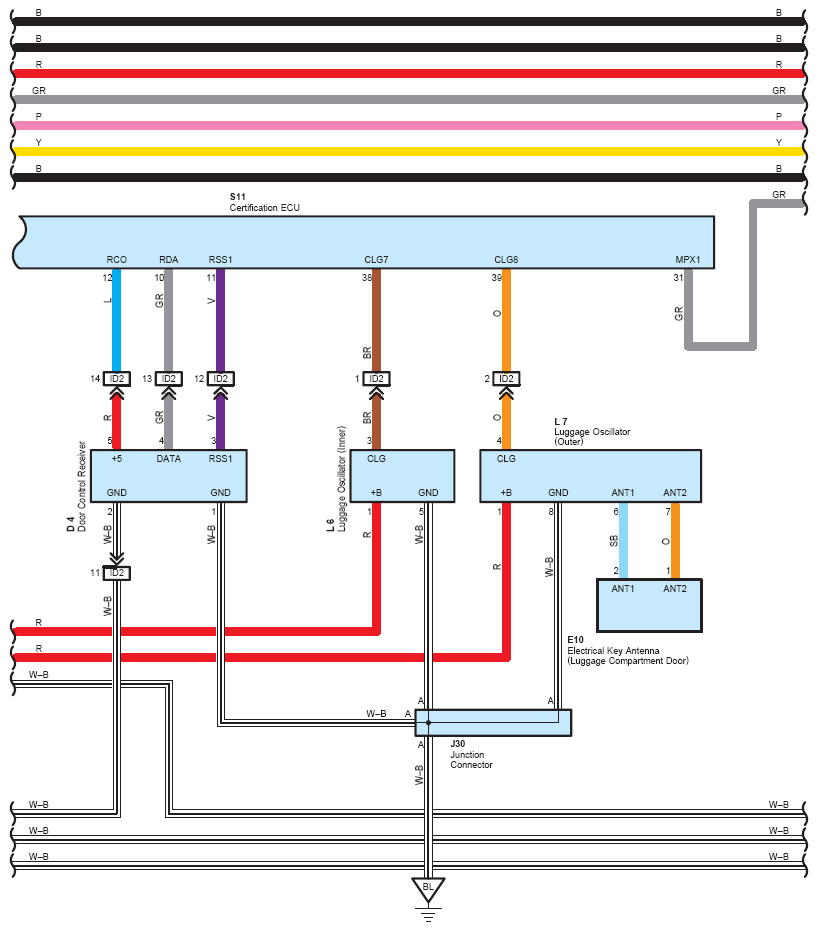

Fig 3: Smart Key System And Wireless Door Lock Control System Wiring Diagram (3 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

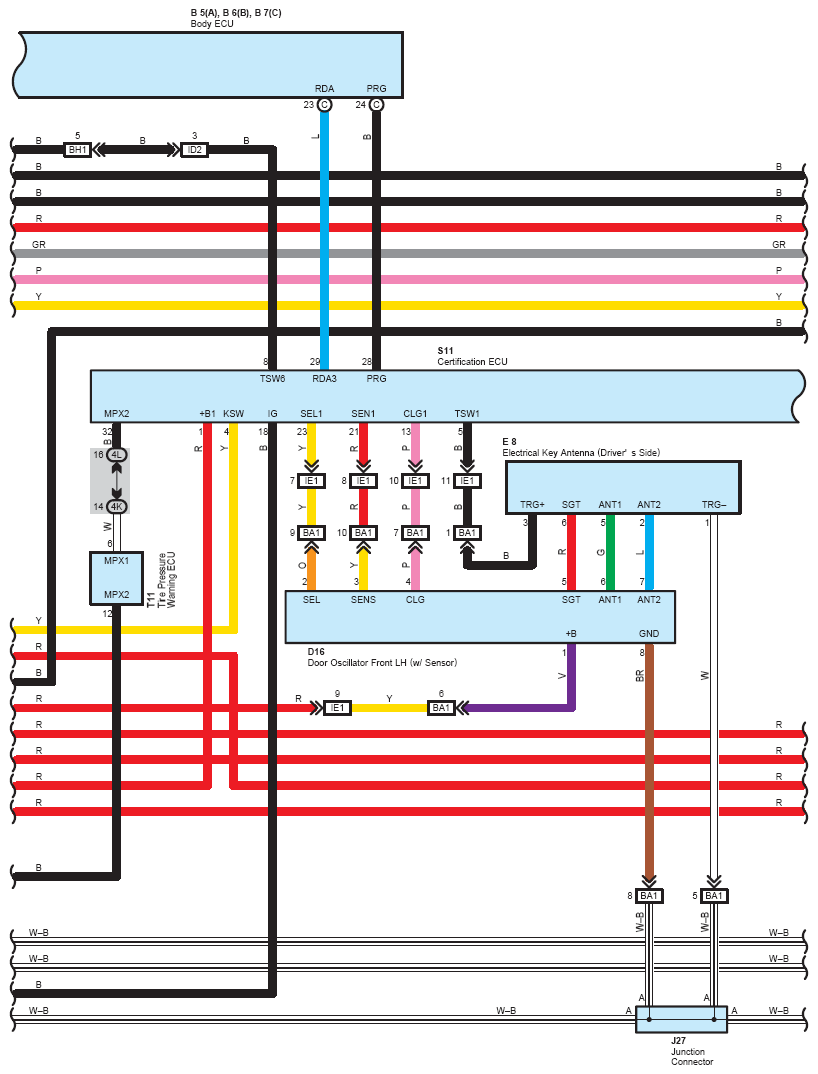

Fig 4: Smart Key System And Wireless Door Lock Control System Wiring Diagram (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

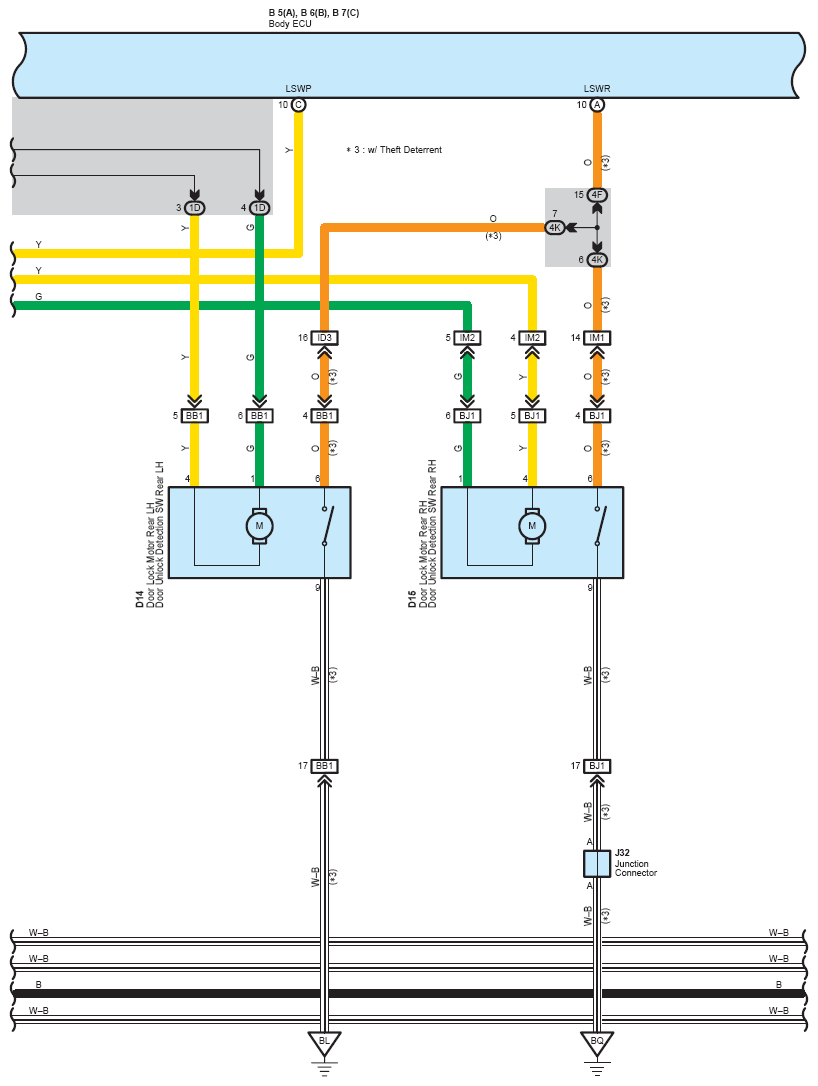

Fig 5: Smart Key System And Wireless Door Lock Control System Wiring Diagram (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

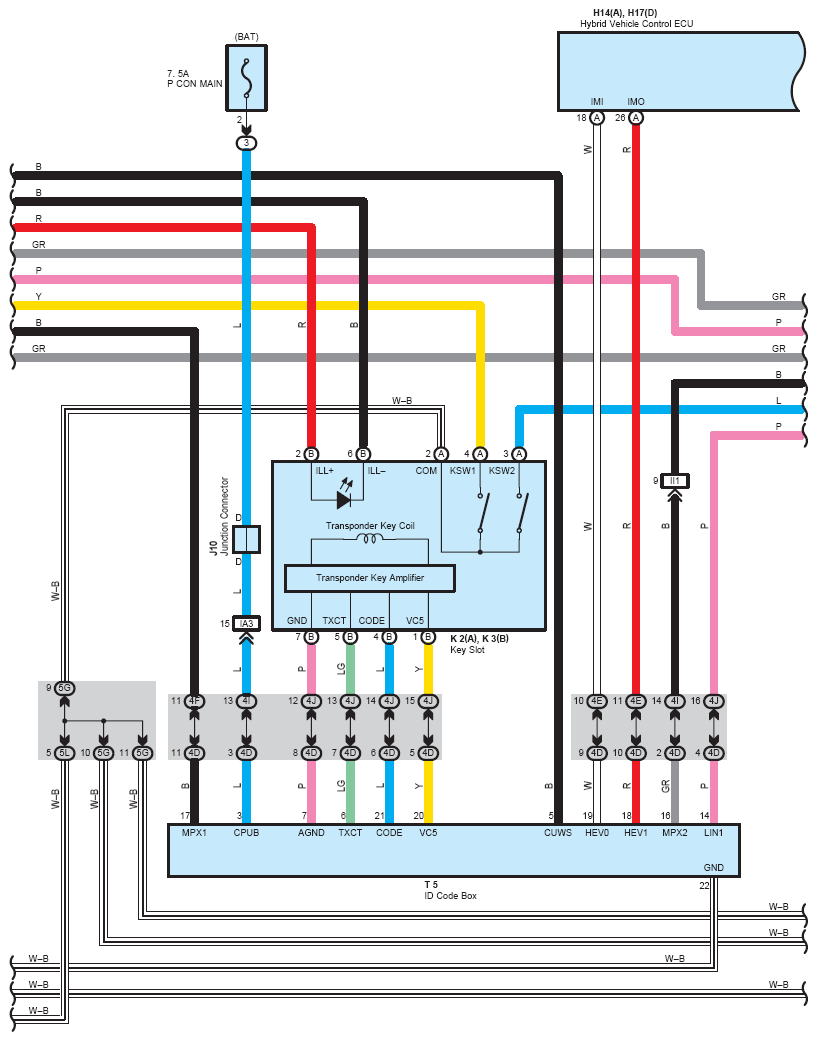

Fig 6: Smart Key System And Wireless Door Lock Control System Wiring Diagram (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

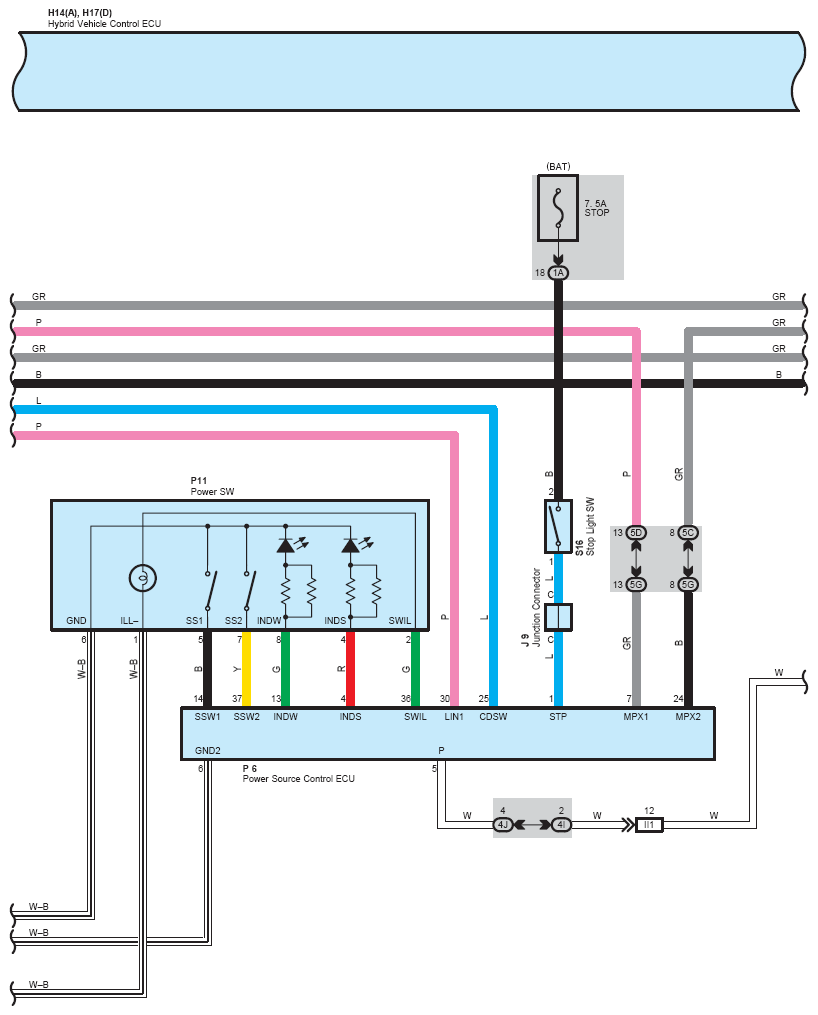

Fig 7: Smart Key System And Wireless Door Lock Control System Wiring Diagram (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

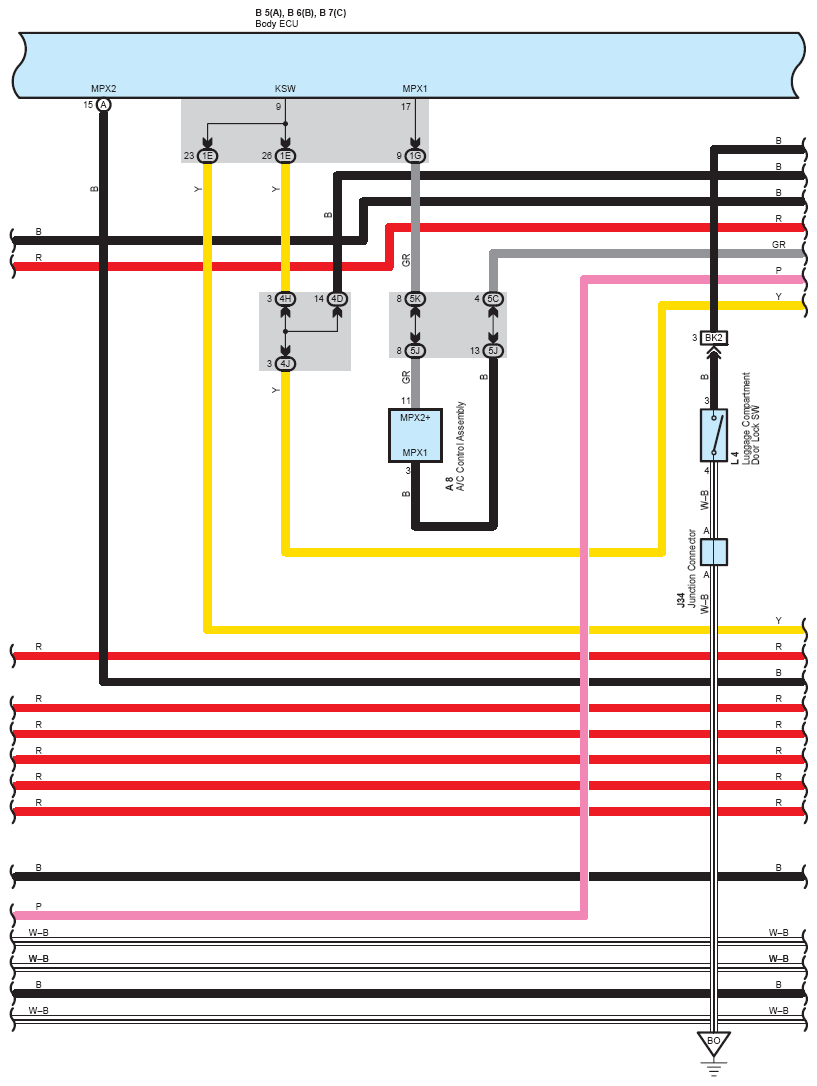

Fig 8: Smart Key System And Wireless Door Lock Control System Wiring Diagram (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

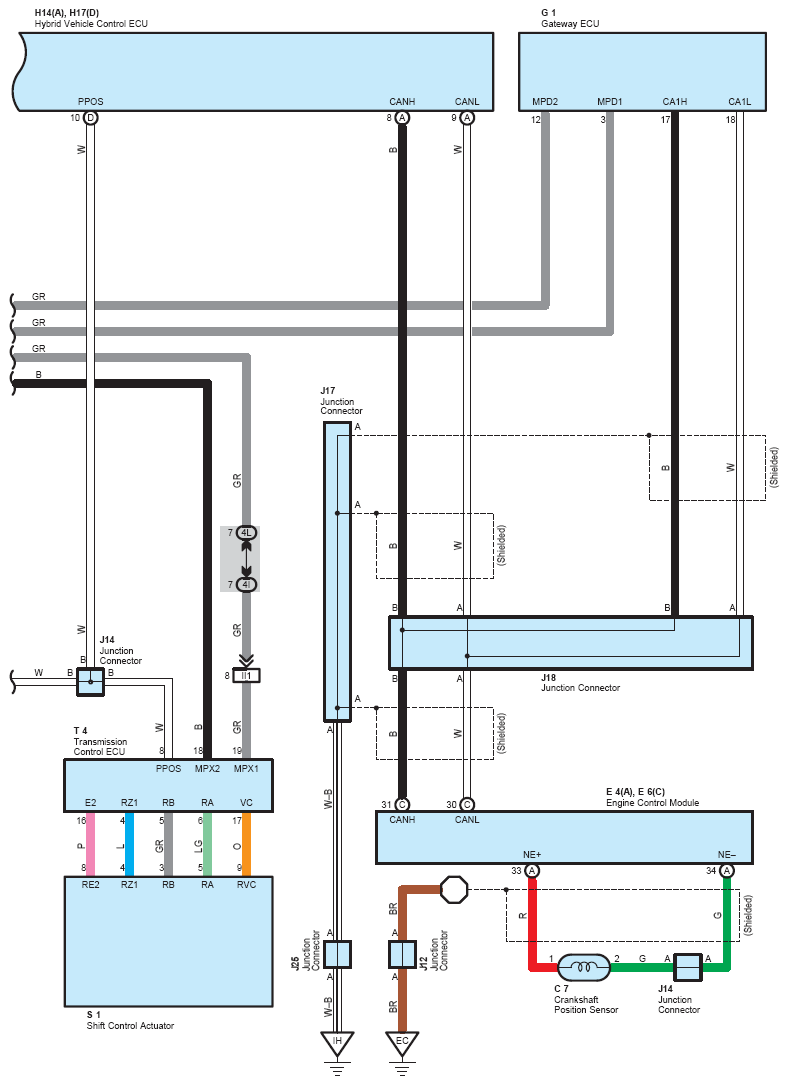

Fig 9: Smart Key System And Wireless Door Lock Control System Wiring Diagram (9 Of 13)

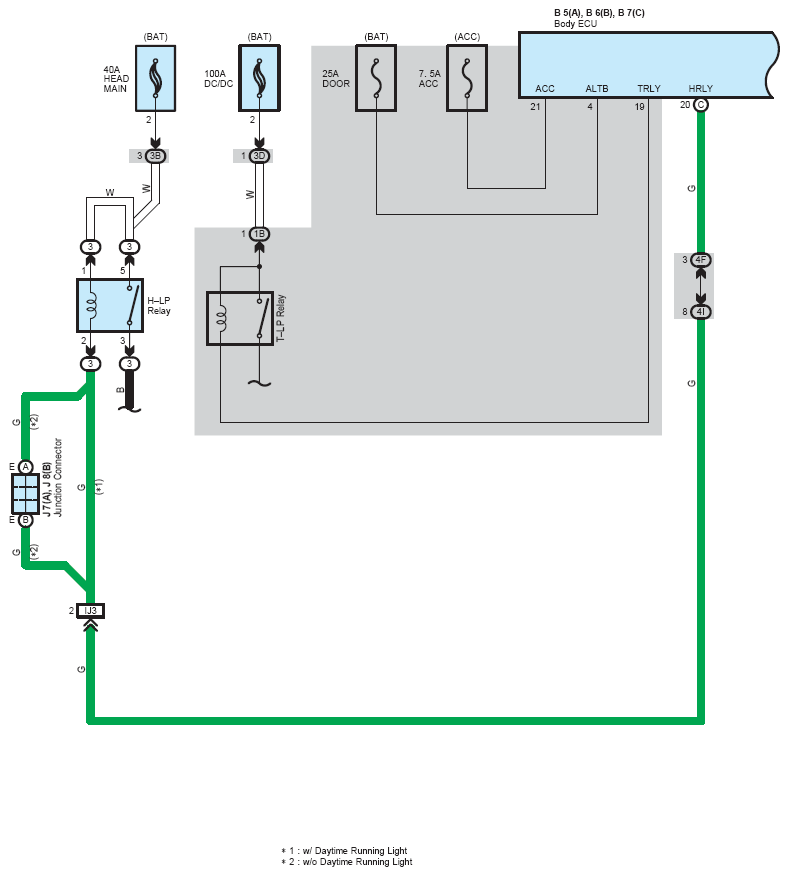

Fig 10: Smart Key System And Wireless Door Lock Control System Wiring Diagram (10 Of 13)

Fig 11: Smart Key System And Wireless Door Lock Control System Wiring Diagram (11 Of 13)

Fig 12: Smart Key System And Wireless Door Lock Control System Wiring Diagram (12 Of 13)

Fig 13: Smart Key System And Wireless Door Lock Control System Wiring Diagram (13 Of 13)
