System Diagram

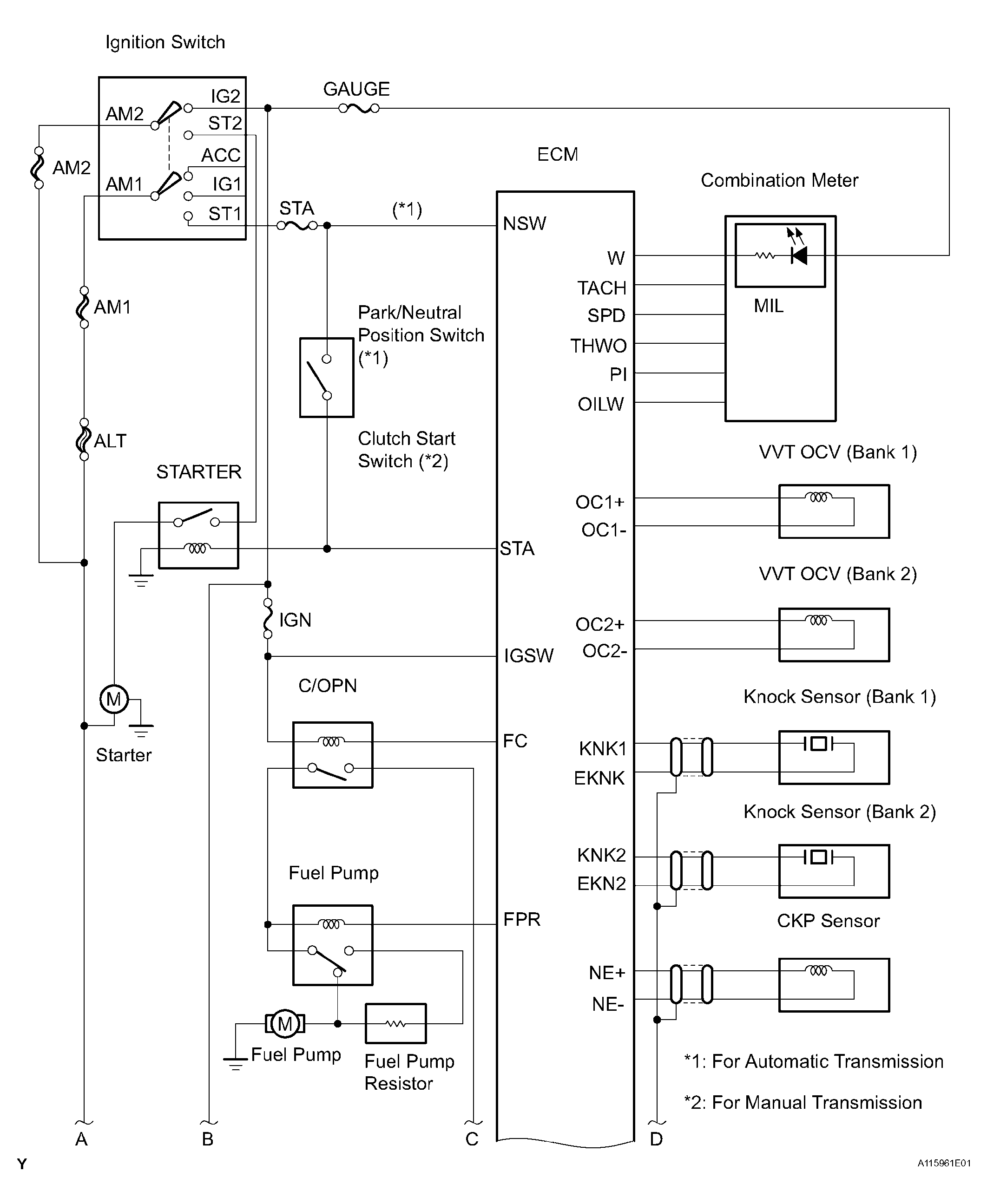

Fig 1: SFI System (1GR-FE) - System Diagram (1 Of 5)
G04407018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

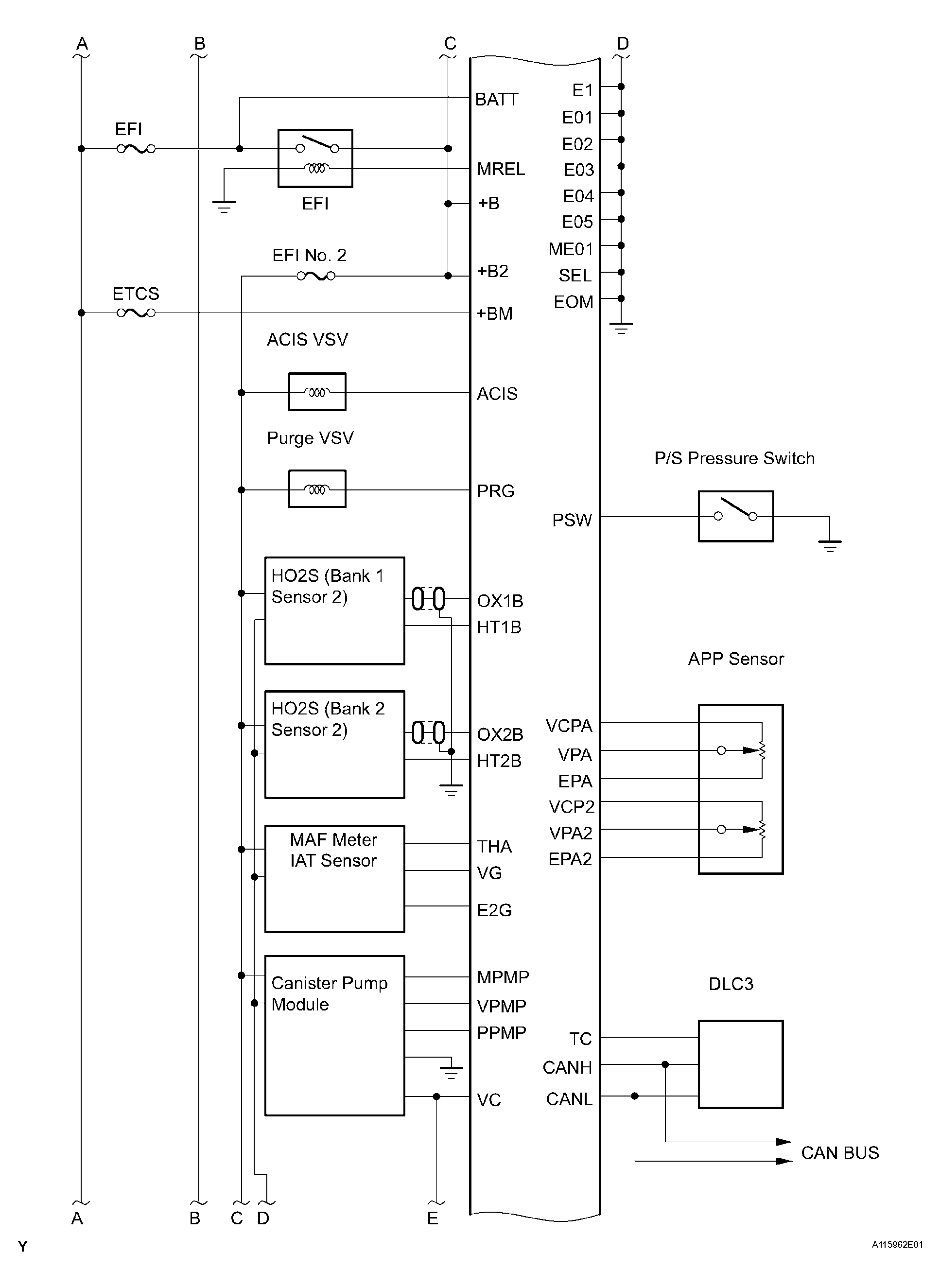

Fig 2: SFI System (1GR-FE) - System Diagram (2 Of 5)
G04407019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

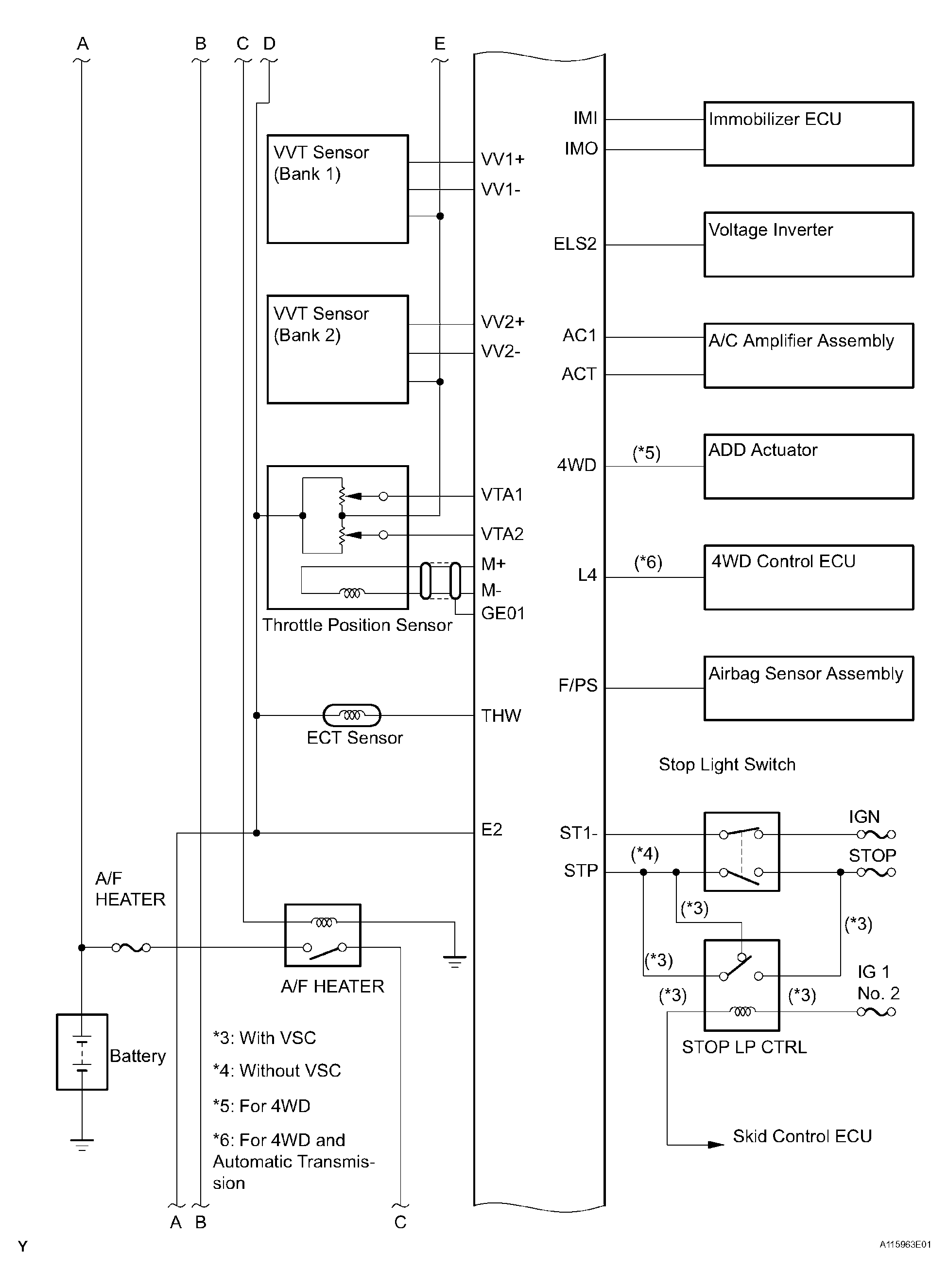

Fig 3: SFI System (1GR-FE) - System Diagram (3 Of 5)
G04407020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

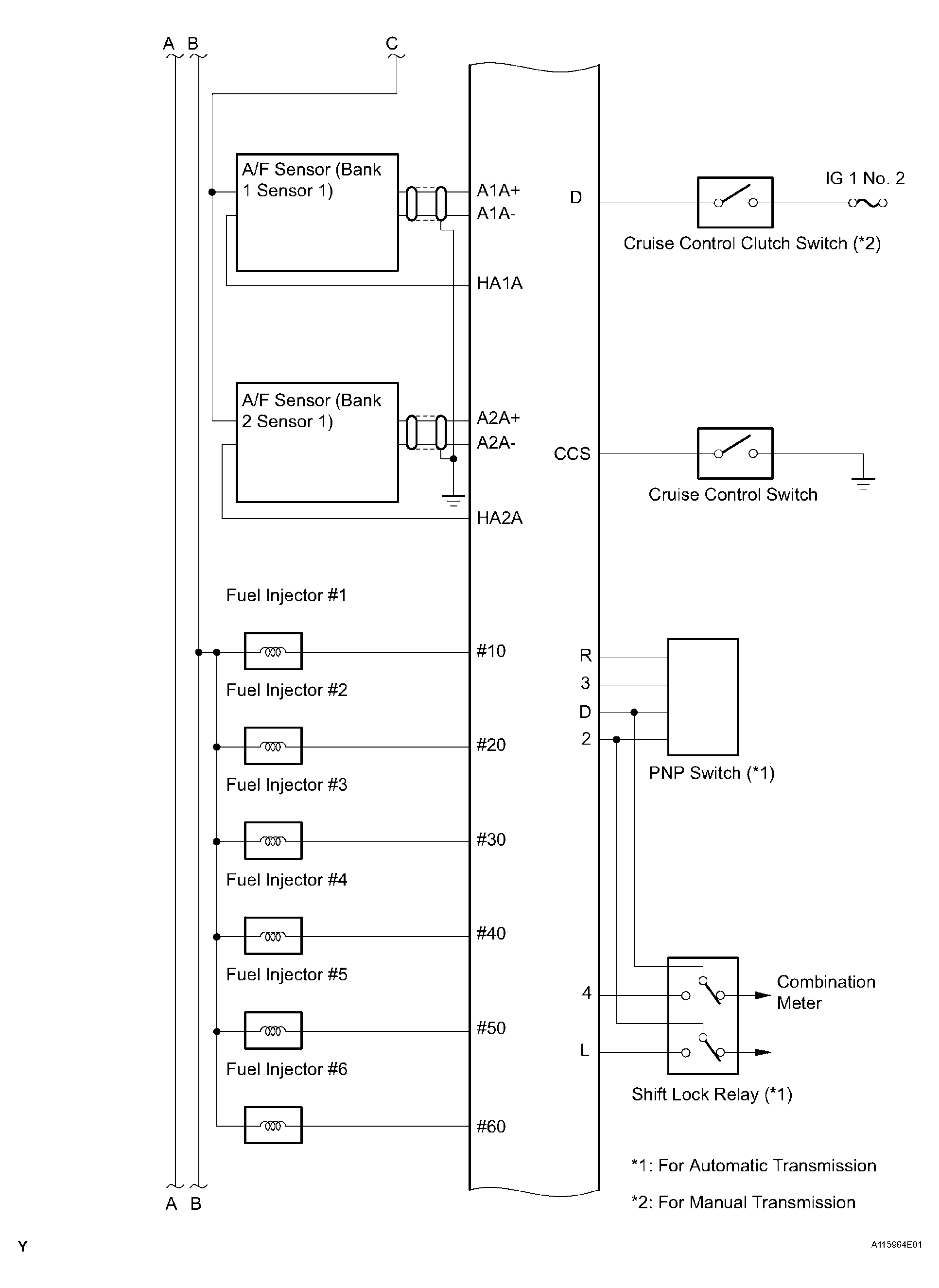

Fig 4: SFI System (1GR-FE) - System Diagram (4 Of 5)
G04407021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

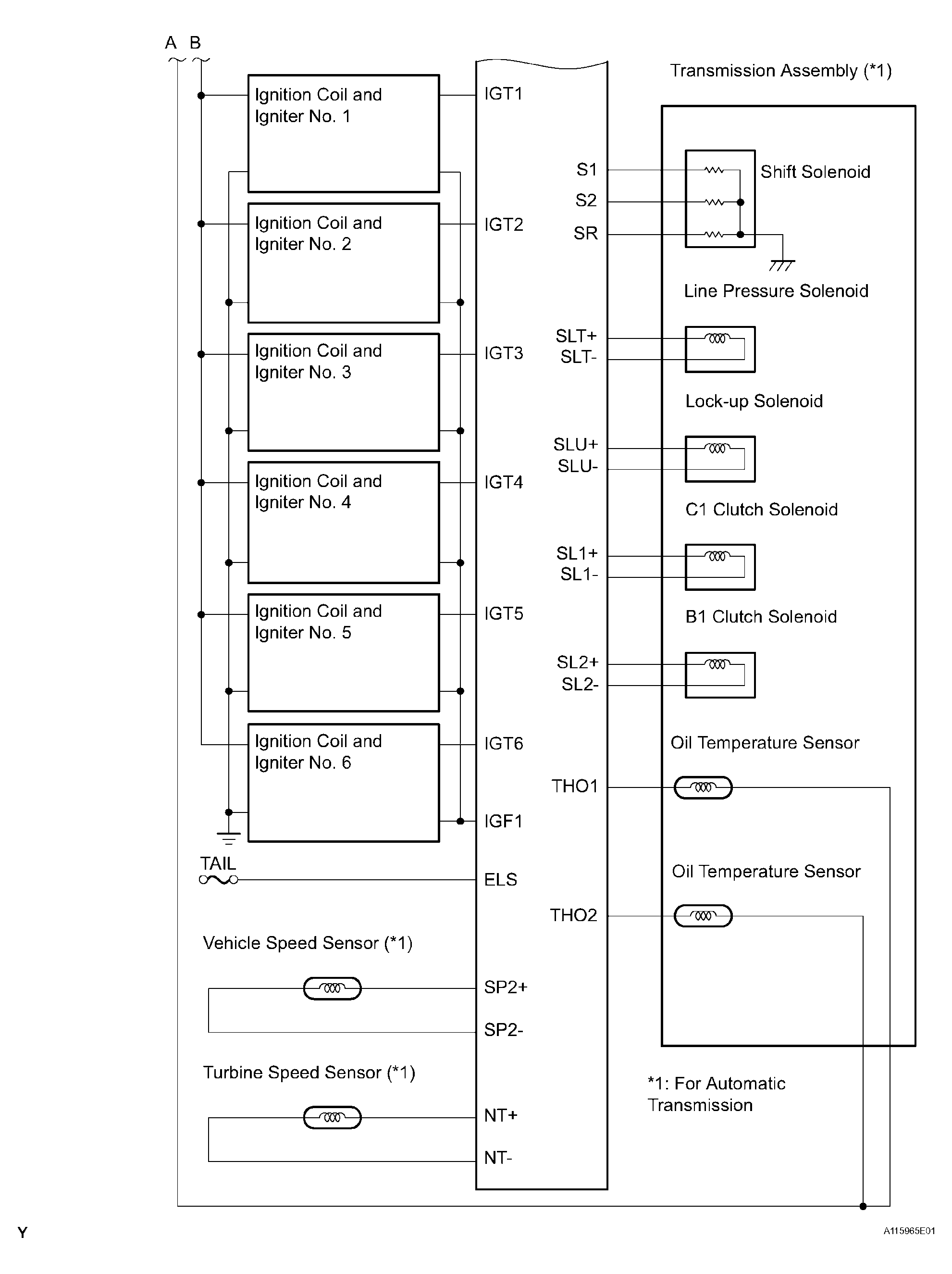

Fig 5: SFI System (1GR-FE) - System Diagram (5 Of 5)
G04407022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
