MIL Circuit: Wiring Diagram

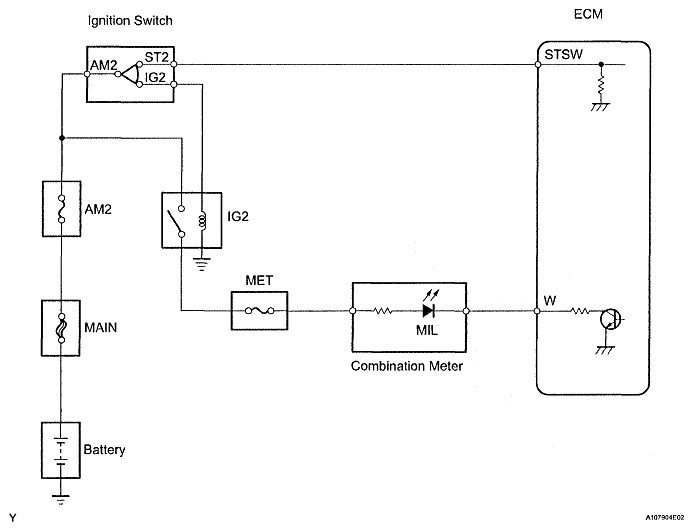

Fig 1: Identifying MIL Circuit Wiring Diagram

G04828359

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
