Data List

DATA LIST

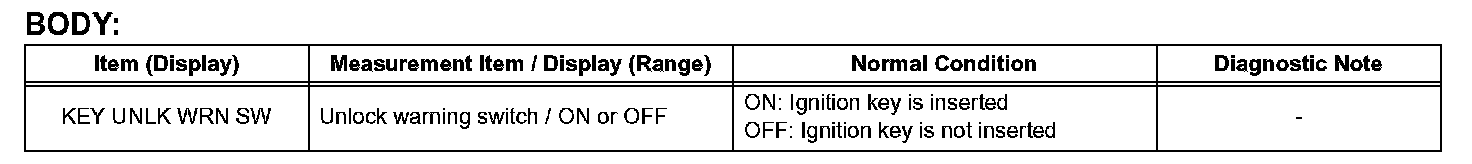

HINT: The wireless door lock control data list can be displayed while the intelligent tester is connected to the DLC3 with the ignition switch in the ON position. Follow the prompts on the tester screen to access the DATA LIST.

a. Connect the intelligent tester to the DLC3.
b. Turn the ignition switch ON.

c. Read the DATA LIST according to the display on the tester.
