Remote Up/Down Function does not Operate: Wiring Diagram

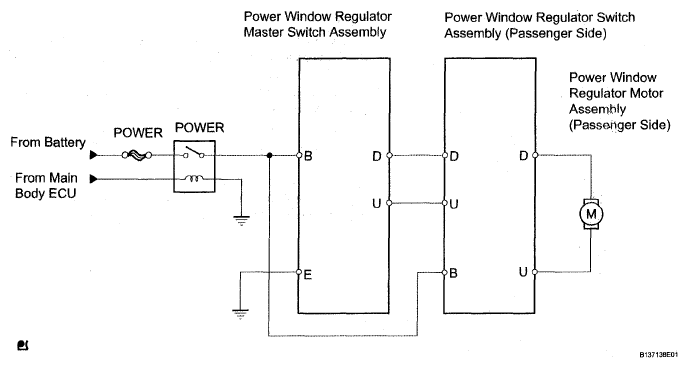

Fig 1: Identifying Remote Up/Down Function Does Not Operate - Wiring Diagram
G05114279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
