Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

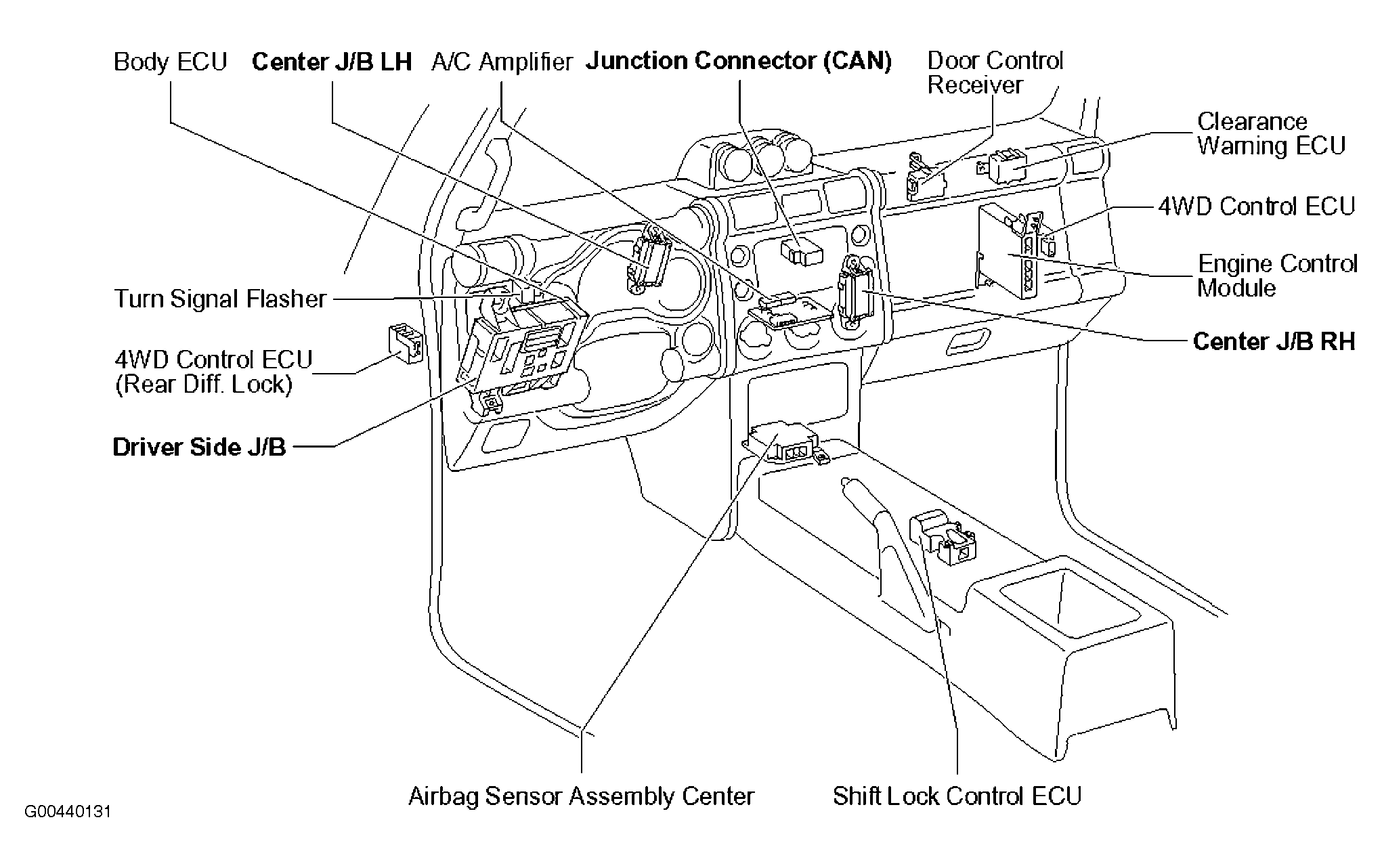

Center J/B (Left) Left side of dash. See Figure.
Center J/B RH Center of dash. See Figure.

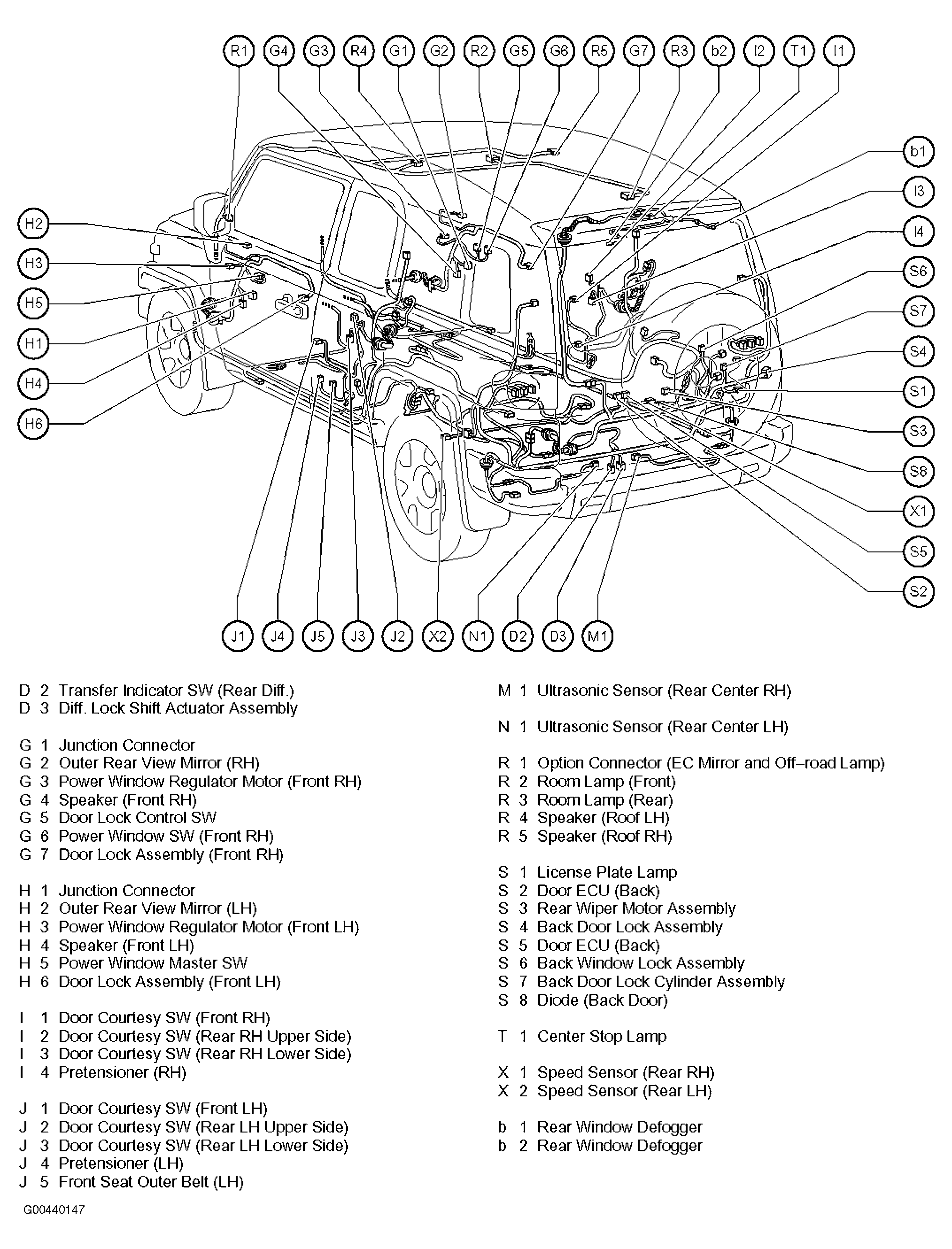

Diode (Back Door) In back door. See Figure.
Driver Side J/B Left side of dash. See Figure.

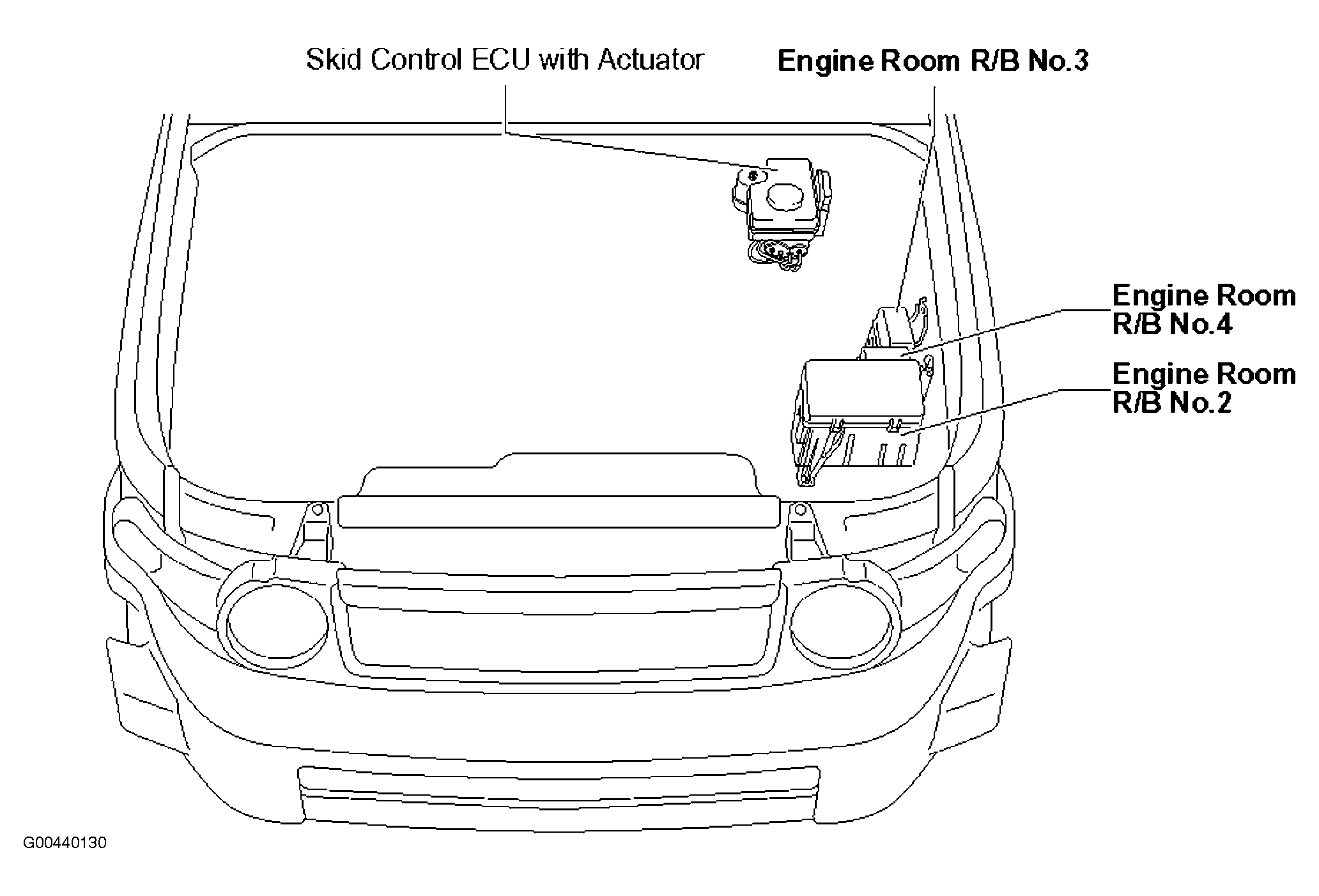

Engine Room R/B No.2 Left side of engine compartment. See Figure.
Engine Room R/B No.3 On left side of engine compartment. See Figure.
Engine Room R/B No.4 Left side of engine compartment. See Figure.

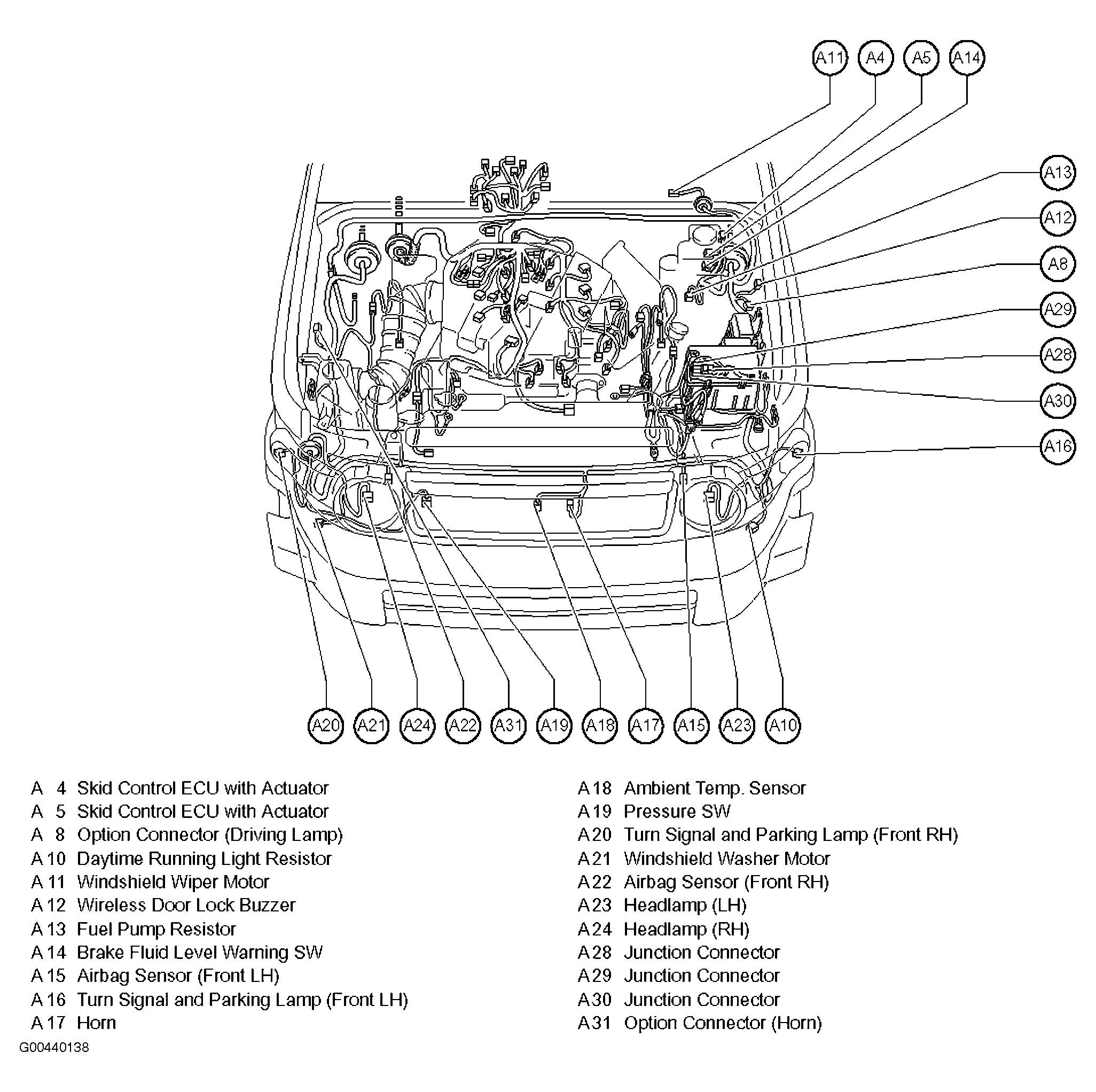

Fuel Pump Resistor Left rear of engine compartment. See Figure.

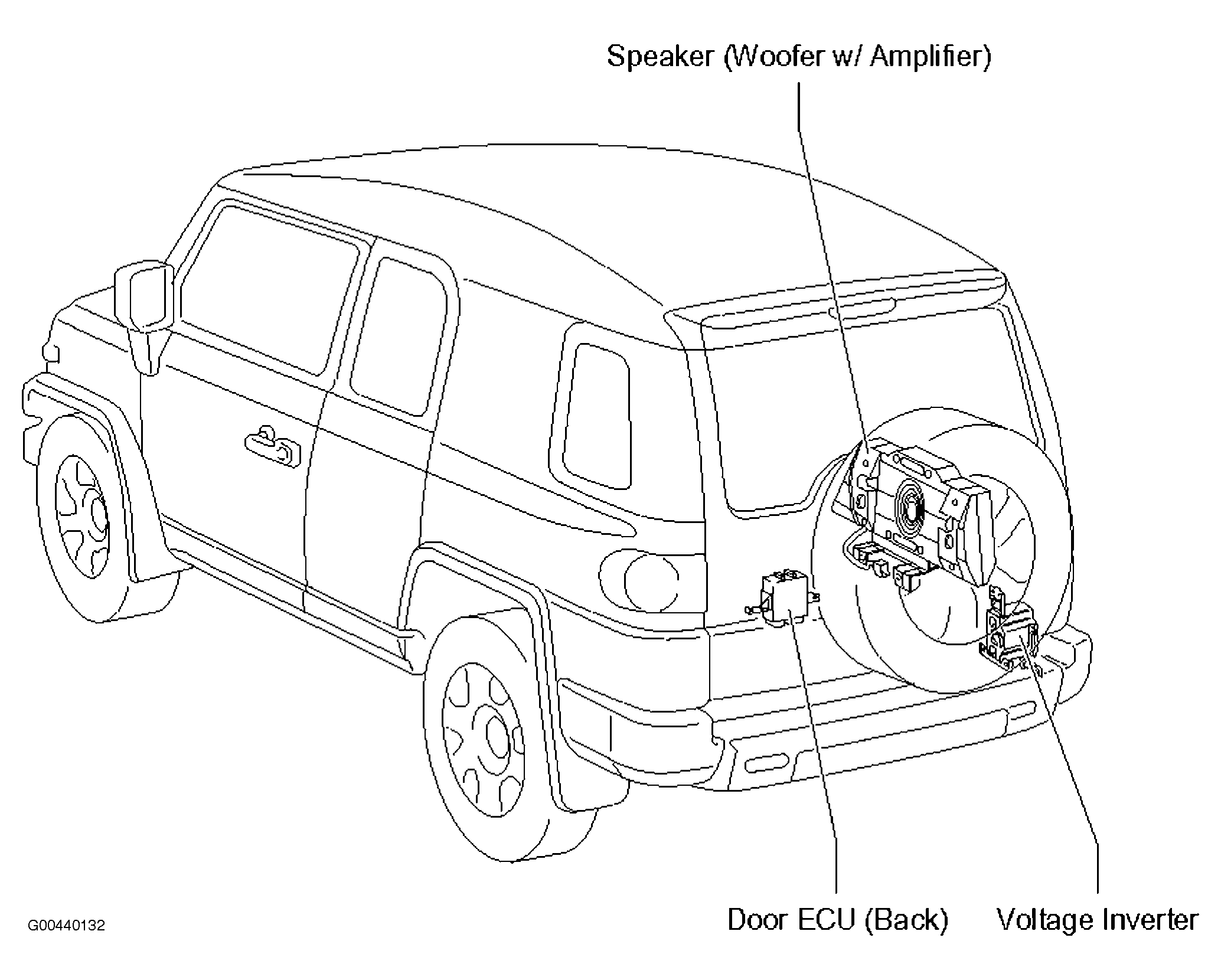

Voltage Inverter Right side of luggage area. See Figure.
