Parts Location

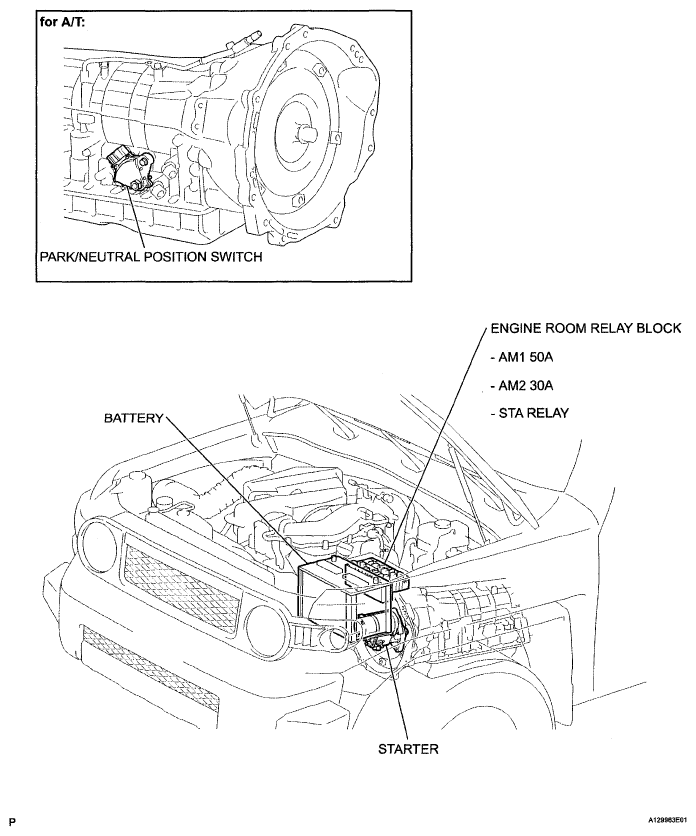

Fig 1: Identifying Starting System Components (1 Of 2)
G05109924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

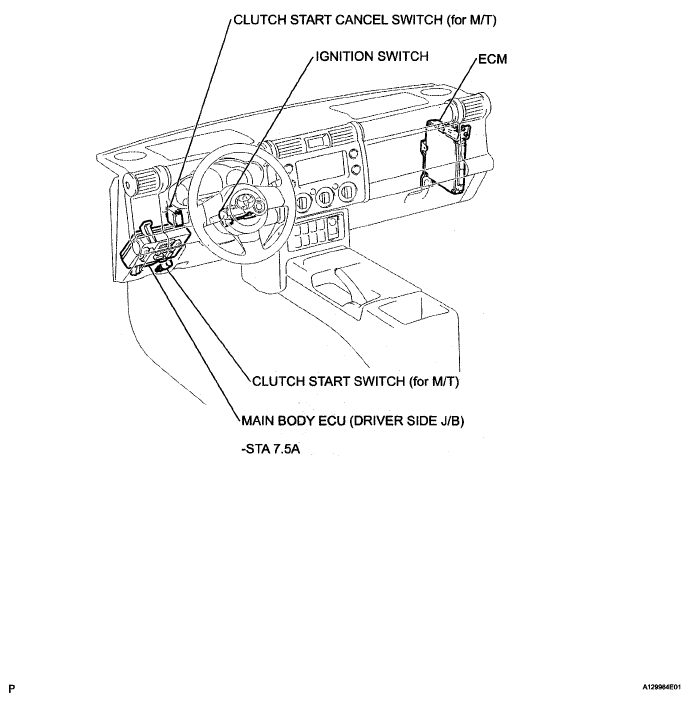

Fig 2: Identifying Starting System Components (2 Of 2)
G05109925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
