Back Door Glass: Installation

  1. INSTALL CLIP AND SPACER
    1. Remove the damaged clips and spacers.
    2. Cut off the old adhesive around the clips and spacers installation area.
      NOTE: Be careful not to damage the back door glass.
    3. Clean the installation area.
    4. Attach new clips and spacers to the glass, as shown in Fig 1 .

      Standard measurement

      CLIP AND SPACERS

      Area Measurement
      a 24.3 mm (0.957 in.)
      b 18.6 mm (0.732 in.)
      c 33.1 mm (1.303 in.)
      d 52.8 mm (2.079 in.)
      e 14.4 mm (0.567 in.)
      f 18 mm (0.71 in.)
      g 156.6 mm (6.165 in.)
      h 176.8 mm (6.961 in.)

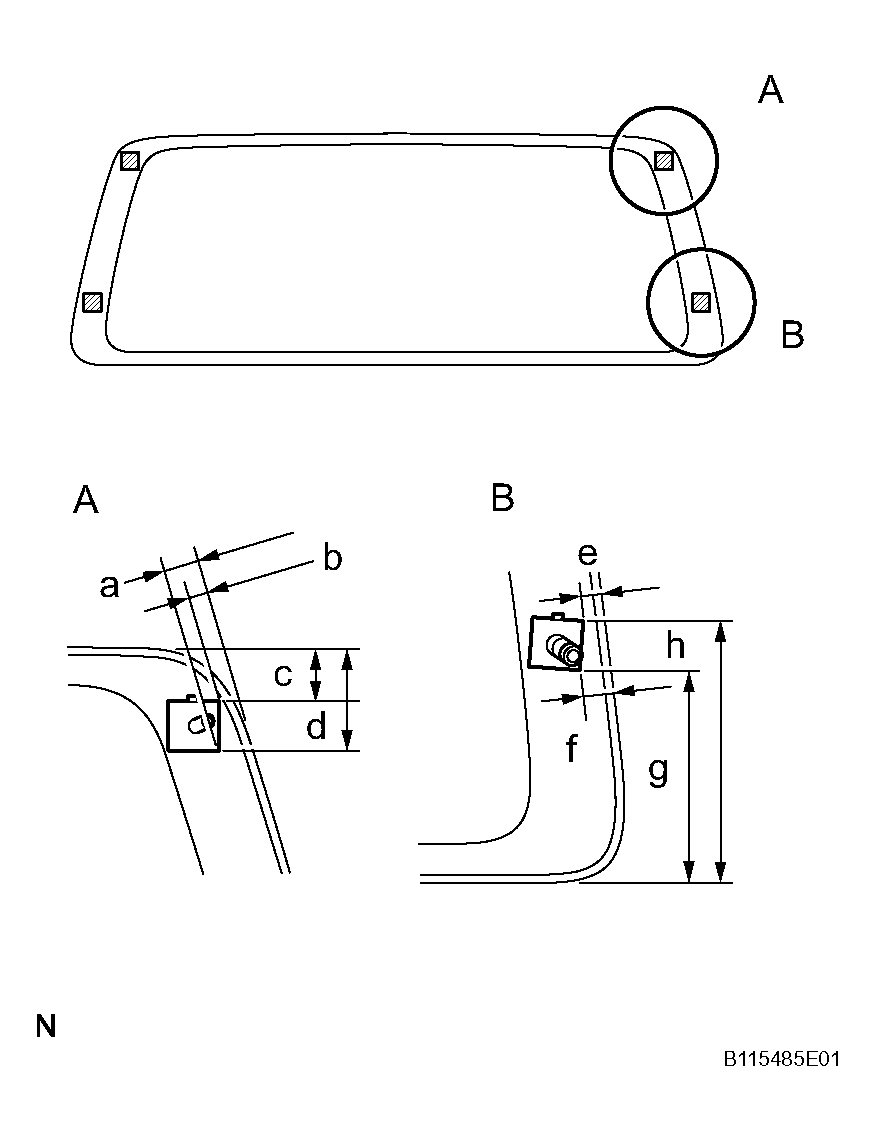

      Fig 1: Attaching Clips And Spacers To Glass
      G04443806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL BACK WINDOW OUTSIDE MOLDING
    1. Install a new back window molding as shown in Fig 2.
      NOTE: Do not touch the glass face after cleaning it.

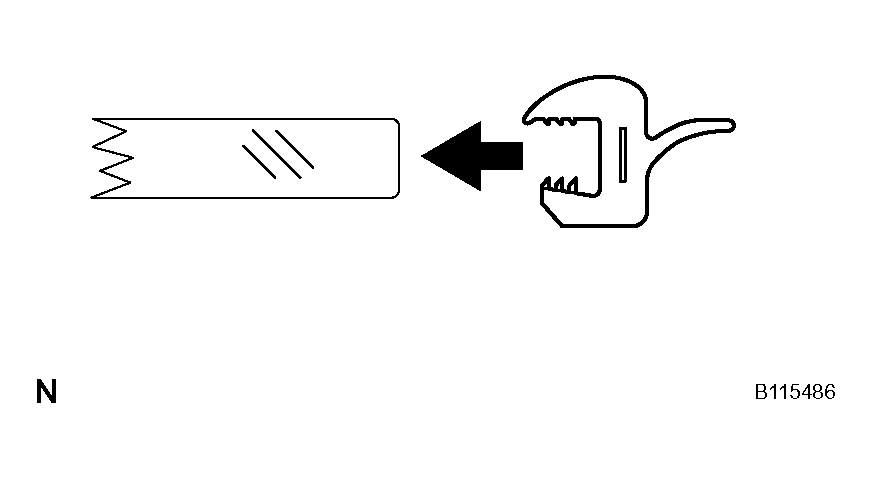

      Fig 2: Installing Back Window Molding
      G04443807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL BACK DOOR GLASS
    1. Using a brush, apply Primer M to the exposed part of the vehicle body.
      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Do not apply primer to the adhesive.
      • Throw away any leftover primer.
      • Do not apply too much primer.

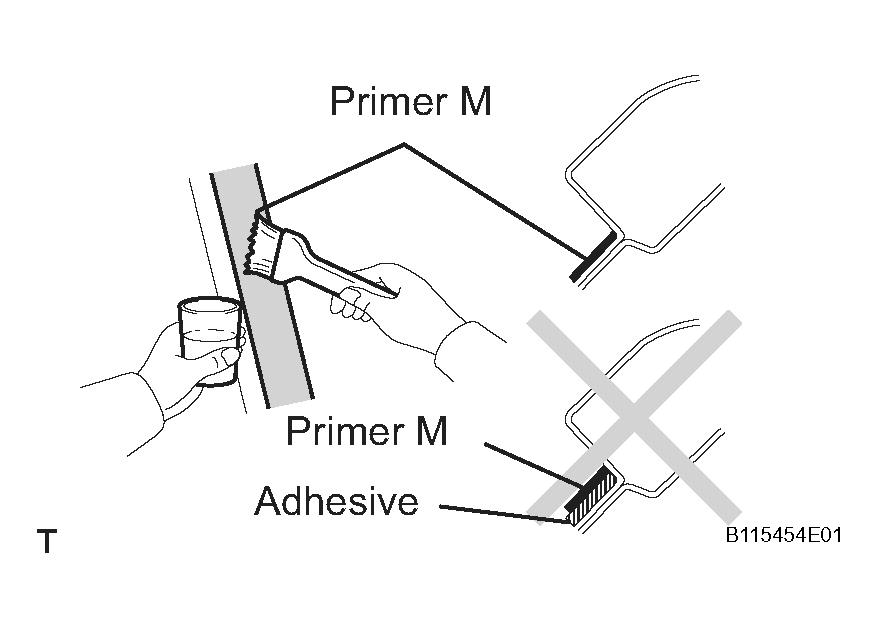

      Fig 3: Applying Primer M To Exposed Part Of Vehicle Body
      G04443808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a brush or sponge, apply Primer G to the contact surface of the glass.

      HINT:

      If the primer is applied to an area that is not specified, apply white gasoline to a clean cloth and wipe off the excess primer.

      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.
      • Do not apply too much primer.

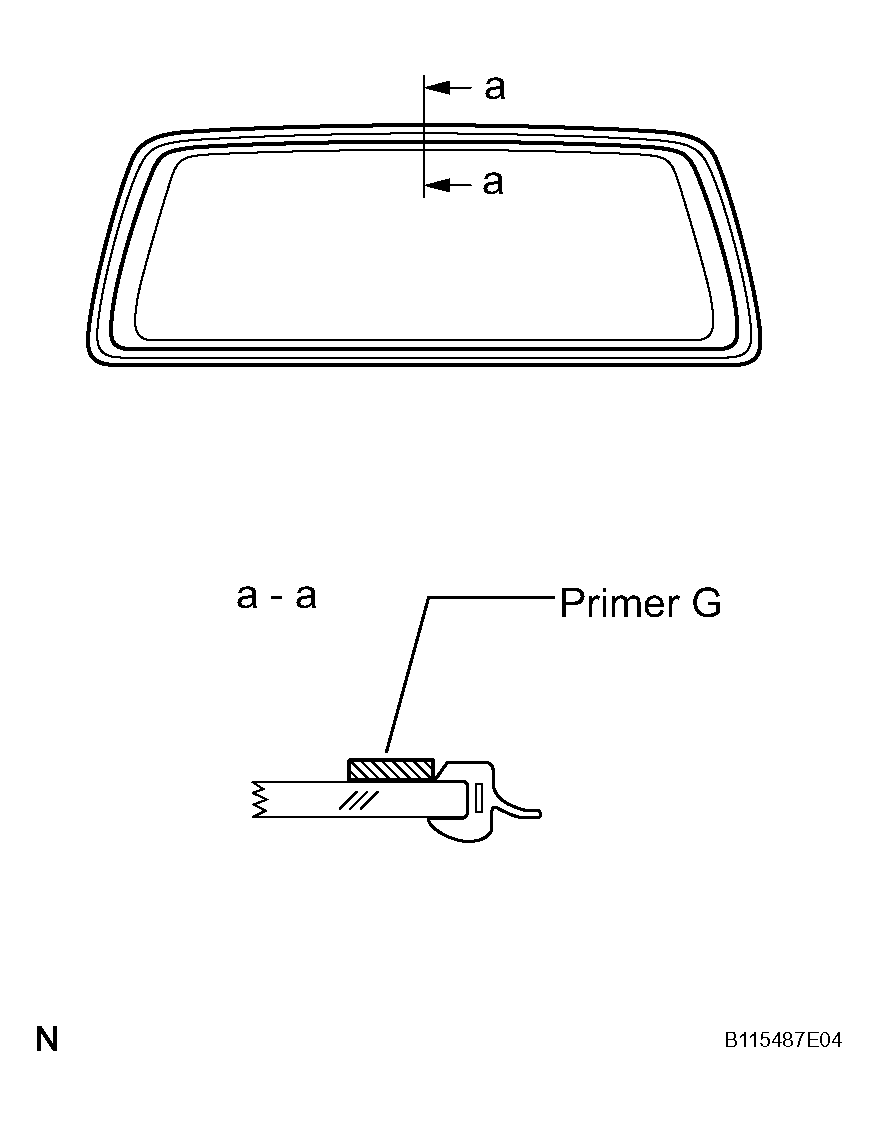

      Fig 4: Applying Primer G To Contact Surface Of Glass
      G04443809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Apply adhesive to the glass.

      Adhesive: Part No. 08850-00801 or equivalent

      1. Cut off the tip of the cartridge nozzle as shown in Fig 5 .

        HINT:

        After cutting off the tip, use all adhesive within the time written in TEMPERATURE SPECIFICATIONS  .

        Usage time frame

        USAGE TIME FRAME

        Temperature Usage Time Frame
        35°C (95°F) 15 minutes
        20°C (68°F) 1 hour 40 minutes
        5°C (41°F) 8 hours
      2. Load the sealer gun with the cartridge.
      3. Apply adhesive to the glass as shown in Fig 5 .

        Standard measurement

        STANDARD MEASUREMENT

        Area Measurement
        a 8.0 mm (0.315 in.)
        b 12.0 mm (0.472 in.)

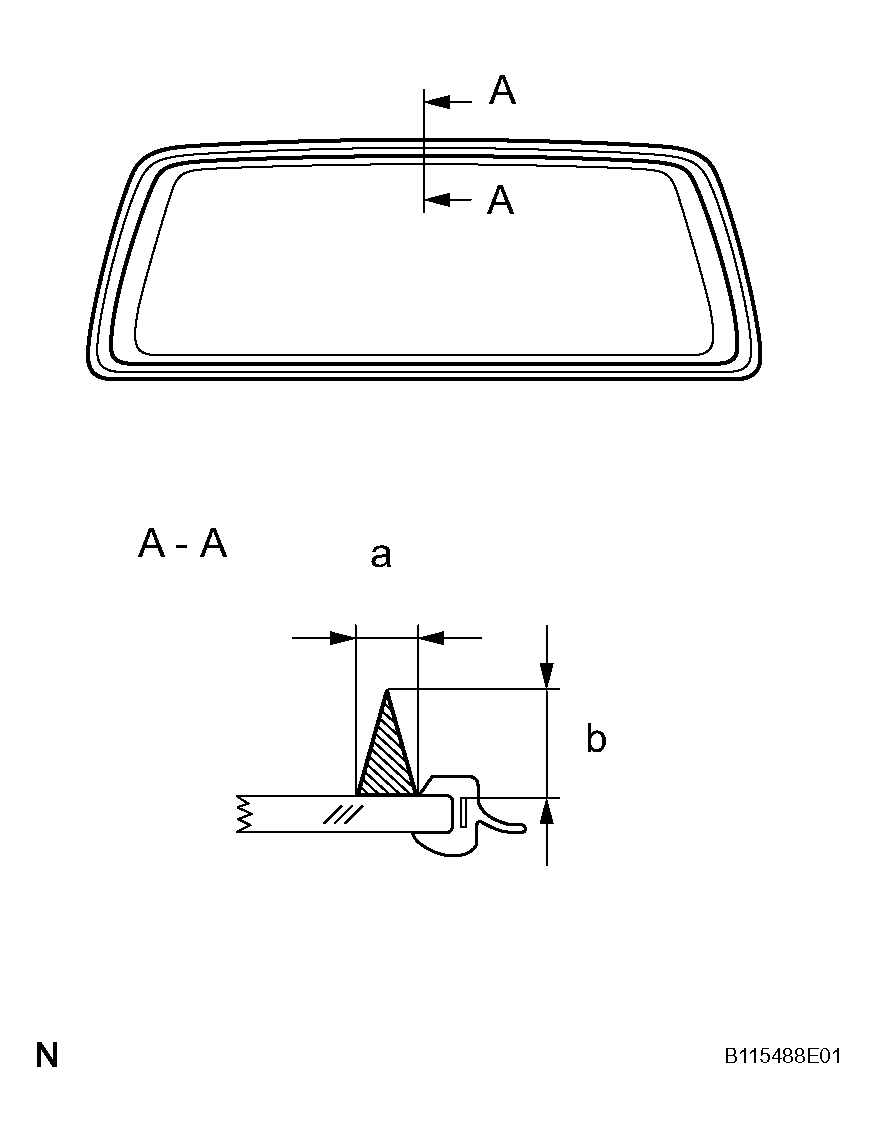

        Fig 5: Applying Adhesive To Glass
        G04443810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the glass to the vehicle body.
      1. Using suction cups, position the glass so that the matchmarks are aligned. Press it in gently along the rim.
      2. Lightly press the front surface of the glass to ensure that it is securely fit to the vehicle body.
        NOTE:
        • Check that the spacers are attached to the vehicle body correctly.
        • Check that the vehicle body and glass have a small gap between them.
      3. Hold the glass in place securely with protective tape or equivalent until the adhesive hardens.
        NOTE: Do not drive the vehicle for the amount of time written in MINIMUM TIME  .

        Minimum time

        MINIMUM TIME

        Temperature Minimum time prior to driving vehicle
        35°C (95°F) 1 hour 30 minutes
        20°C (68°F) 5 hours
        5°C (41°F) 24 hours
  4. INSTALL REAR WIPER ARM
  5. INSTALL BACK DOOR GARNISH
  6. INSTALL BACK DOOR GARNISH CENTER
  7. INSTALL BACK DOOR INSIDE HANDLE BEZEL
  8. INSTALL ASSIST GRIP
  9. INSTALL ASSIST GRIP PLUG
  10. CHECK FOR LEAKS AND REPAIR
    1. Conduct a leak test after the adhesive has completely hardened.
    2. Seal any leaks with auto glass sealer.

      Sealant: Part No. 08833-00030 or equivalent

  11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  12. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
