TVIP System: Notes

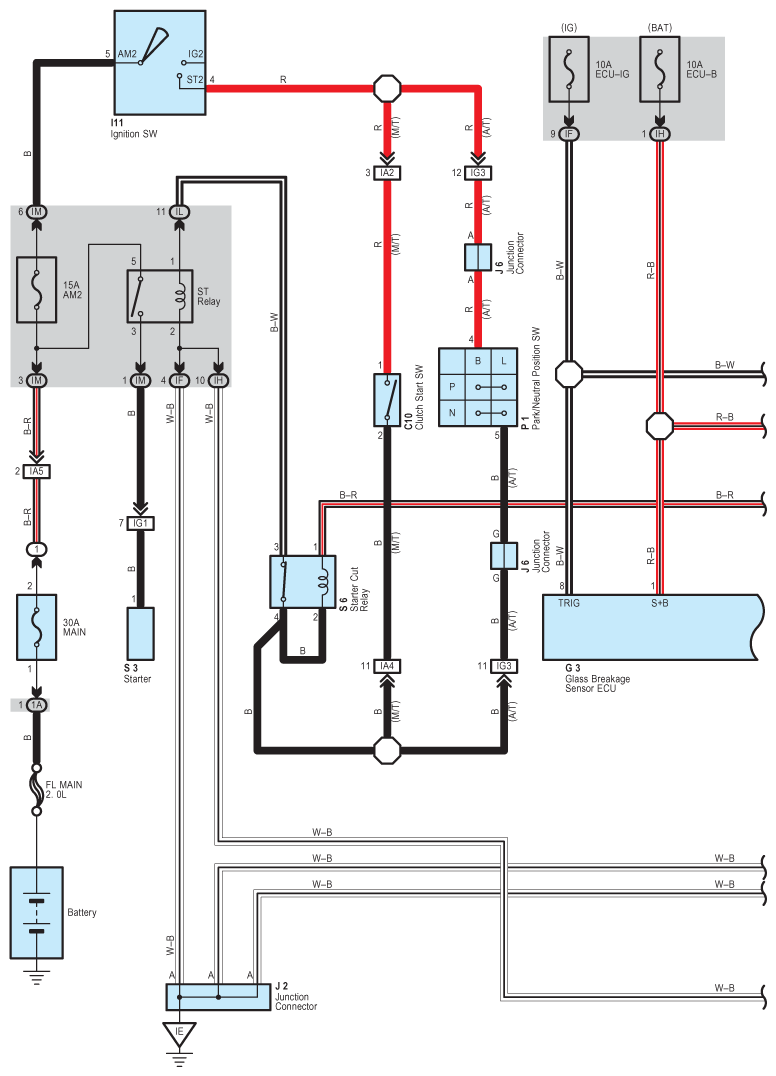

Fig 1: TVIP System Wiring Diagram (1 Of 5)
G08790410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

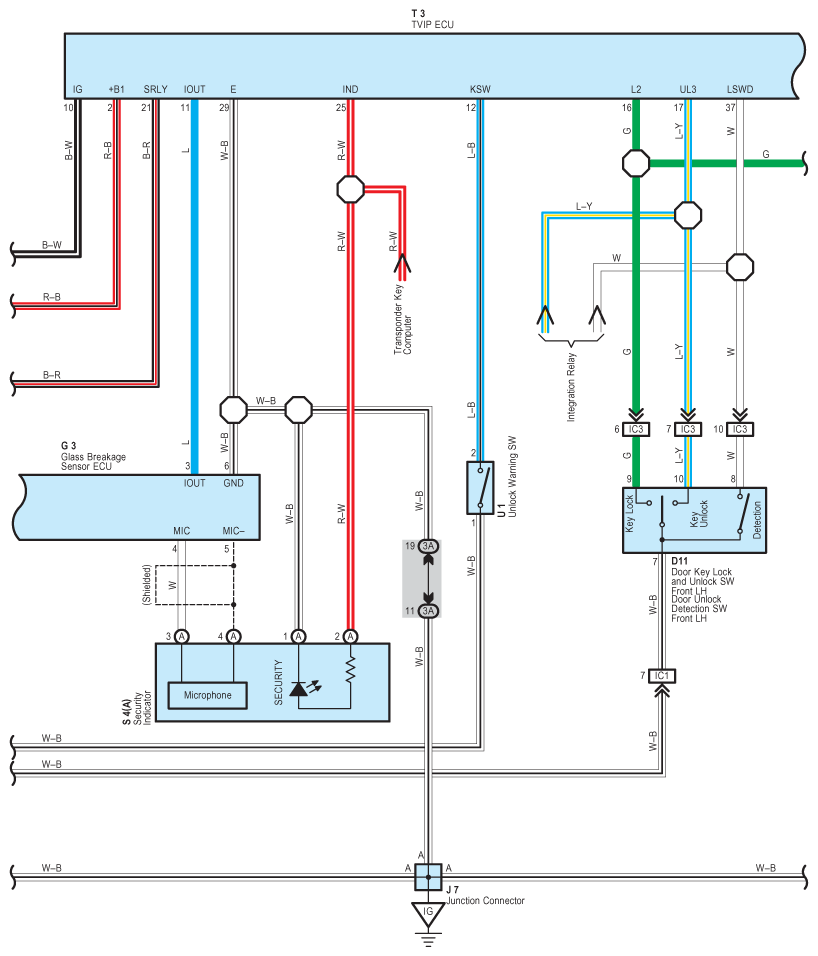

Fig 2: TVIP System Wiring Diagram (2 Of 5)
G08790411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

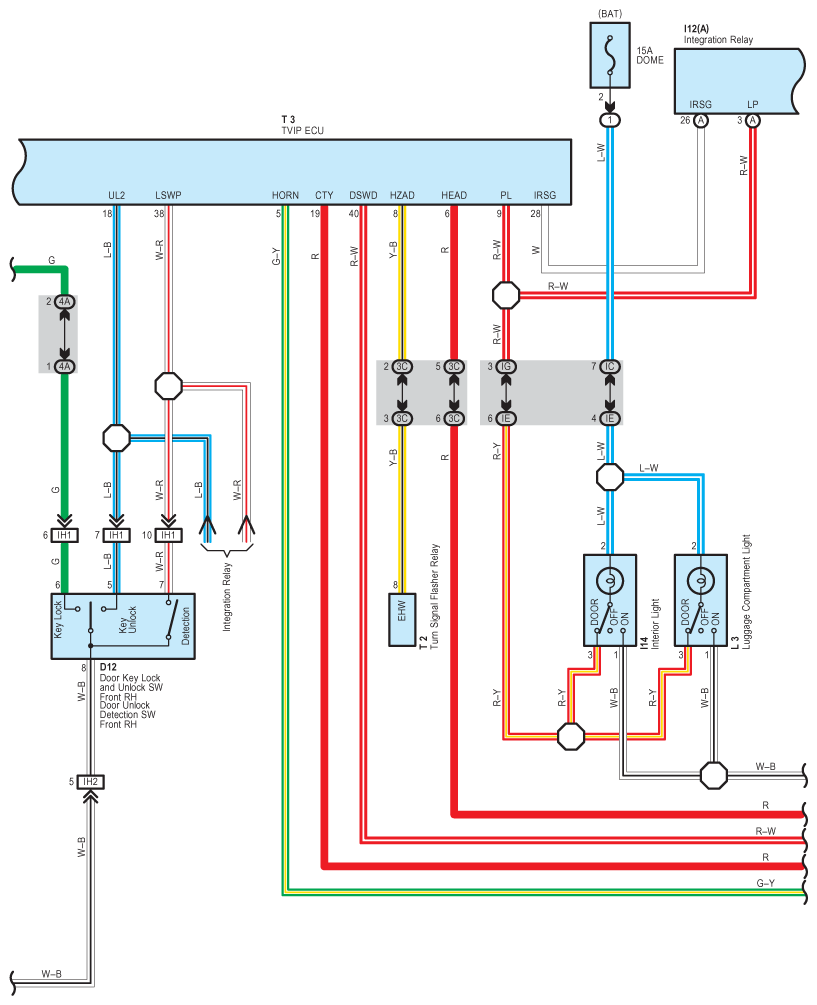

Fig 3: TVIP System Wiring Diagram (3 Of 5)
G08790412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

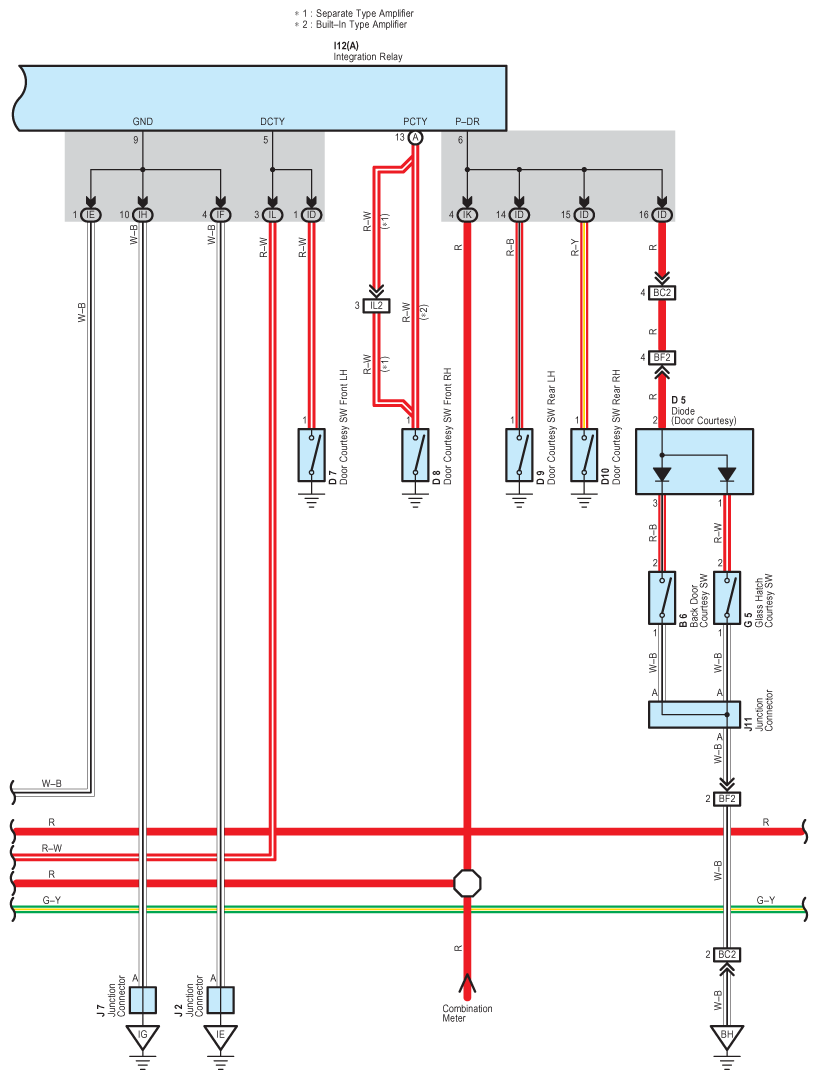

Fig 4: TVIP System Wiring Diagram (4 Of 5)
G08790413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

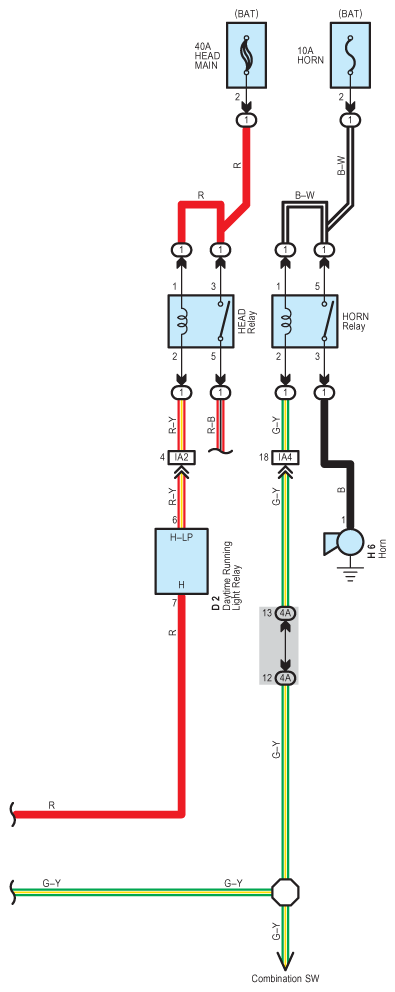

Fig 5: TVIP System Wiring Diagram (5 Of 5)
G08790414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
