2007
>>
Matrix Base, Standard
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Engine Immobilizer
>>
Engine Immobiliser System
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

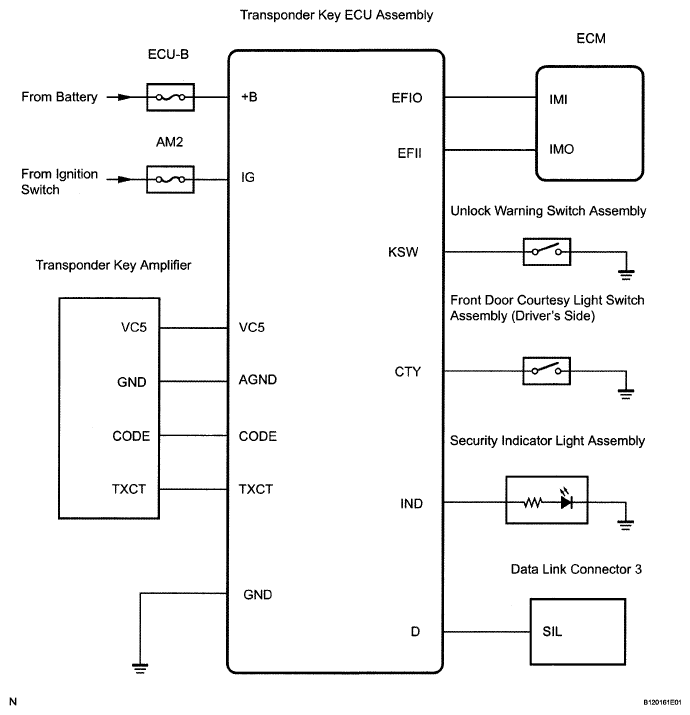

Fig 1: Engine Immobilizer System Diagram
