Front Shock Absorber With Coil Spring: Inspection
- INSPECT FRONT SHOCK ABSORBER ASSEMBLY LH

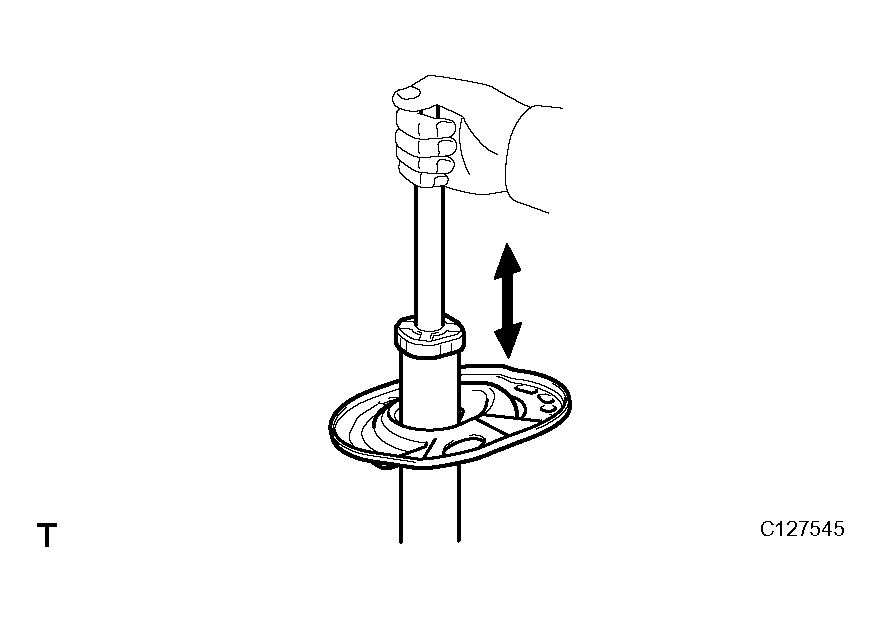

- Compress and extend the shock absorber rod 4 times or more. Check that there is no abnormal resistance or unusual sound during the operation. If there is any abnormality, replace the shock absorber assembly with a new one.
NOTE:
When disposing of the shock absorber, see DISPOSAL .
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
