Steering Angle Sensor: Components

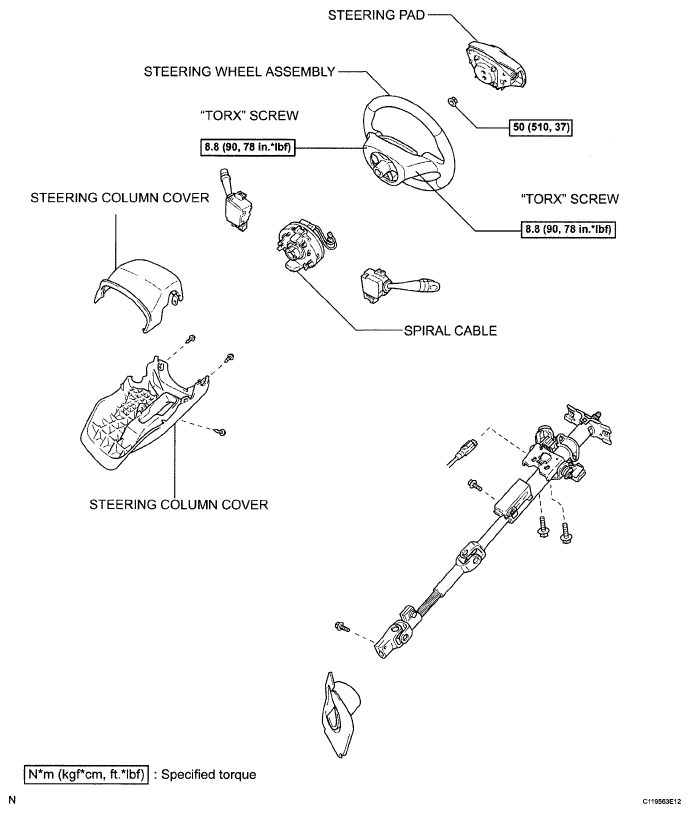

Fig 1: Steering Angle Sensor Replacement Components With Torque Specifications
G05195007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

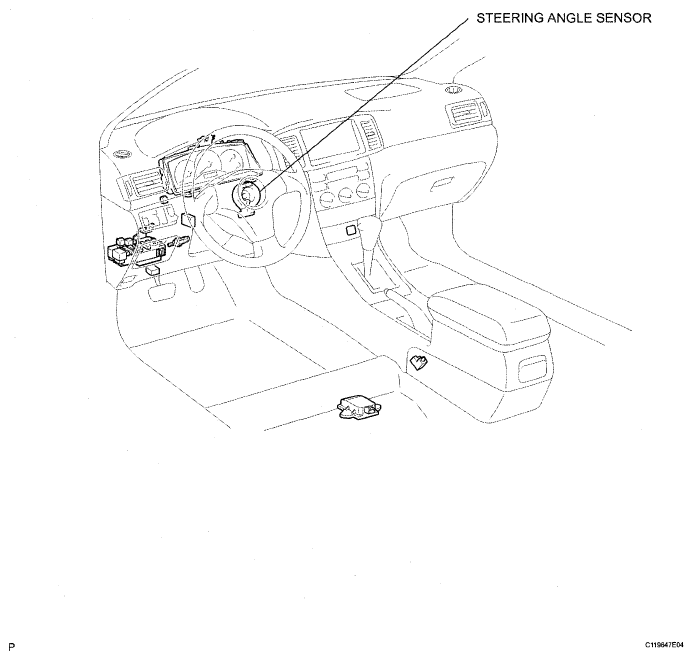

Fig 2: Identifying Steering Angle Sensor
G05195008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
