Cruise Control System: Notes

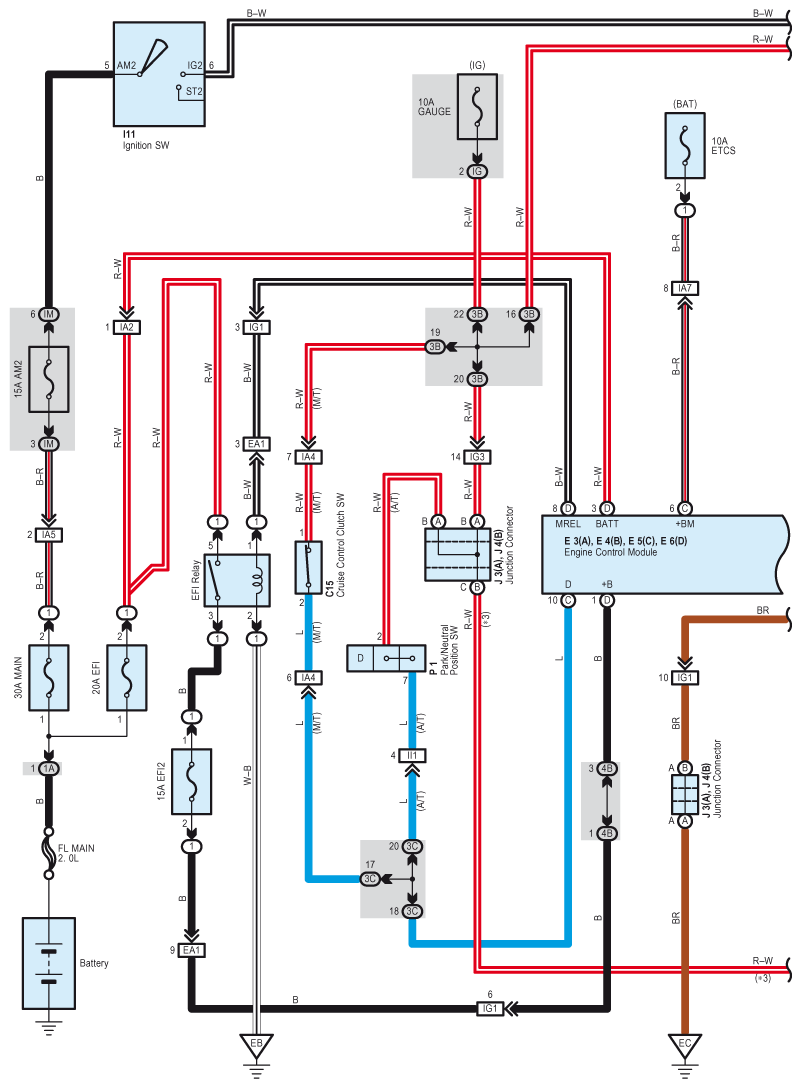

Fig 1: Cruise Control - Circuit Diagram (1 Of 4)
G07599199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

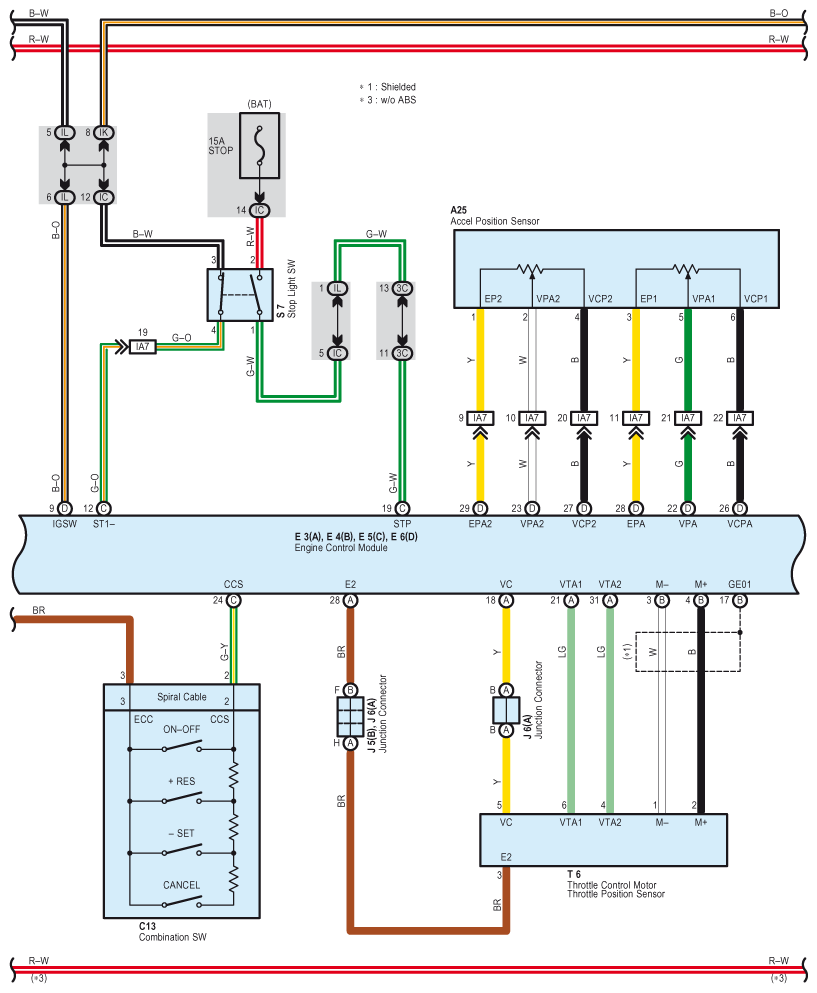

Fig 2: Cruise Control - Circuit Diagram (2 Of 4)
G07599200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

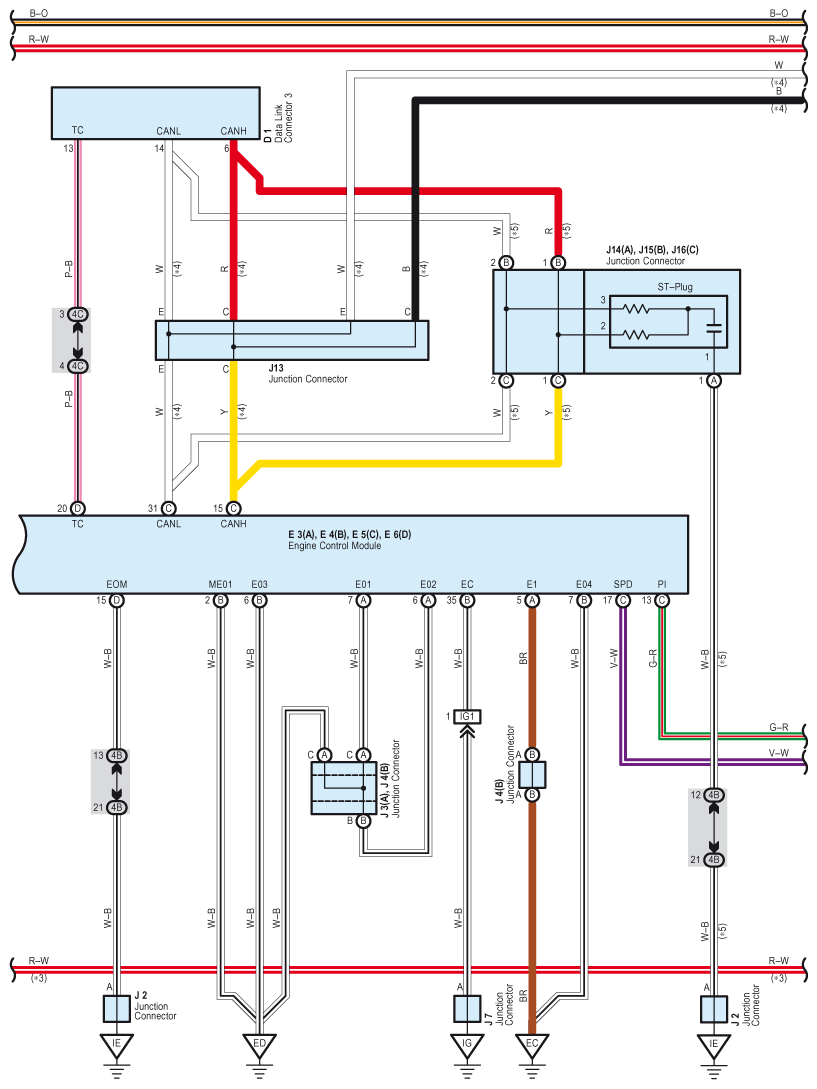

Fig 3: Cruise Control - Circuit Diagram (3 Of 4)
G07599201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

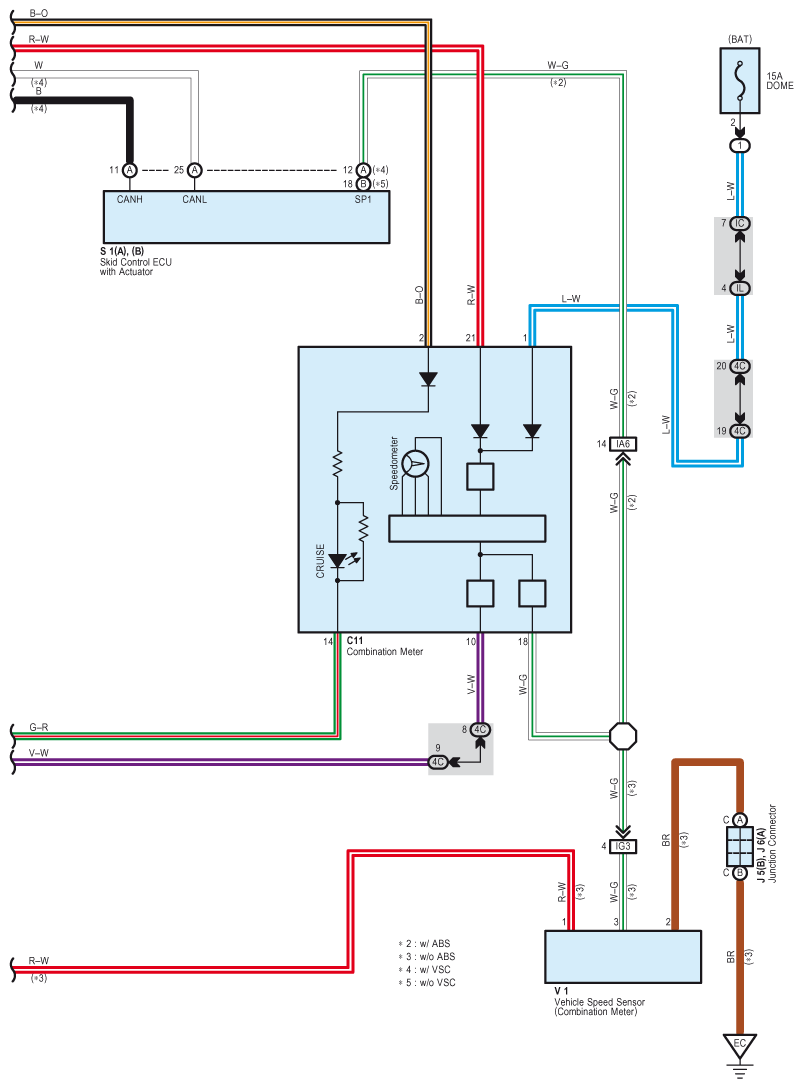

Fig 4: Cruise Control - Circuit Diagram (4 Of 4)
G07599202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
