How To Proceed With Troubleshooting

HINT:

This is a flow chart for vehicle pull.

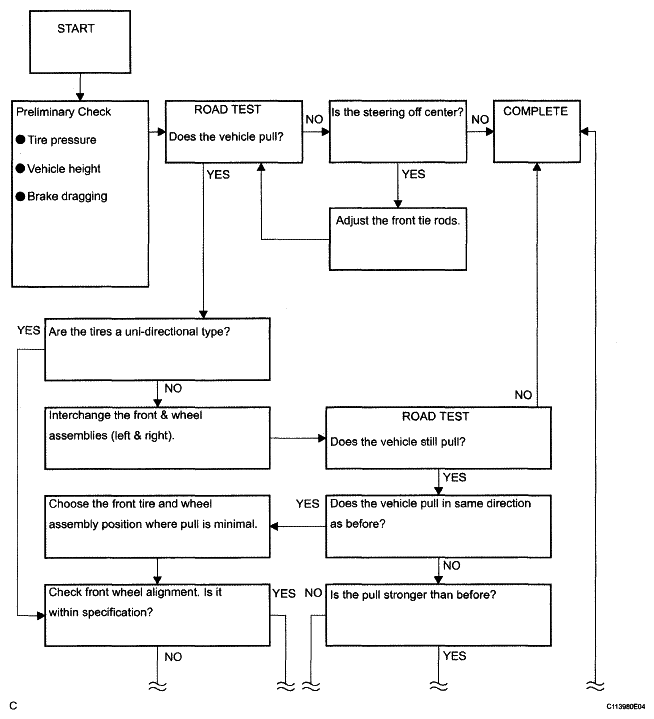

Fig 1: Suspension System Troubleshooting Flow Chart (1 Of 2)
G04964547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

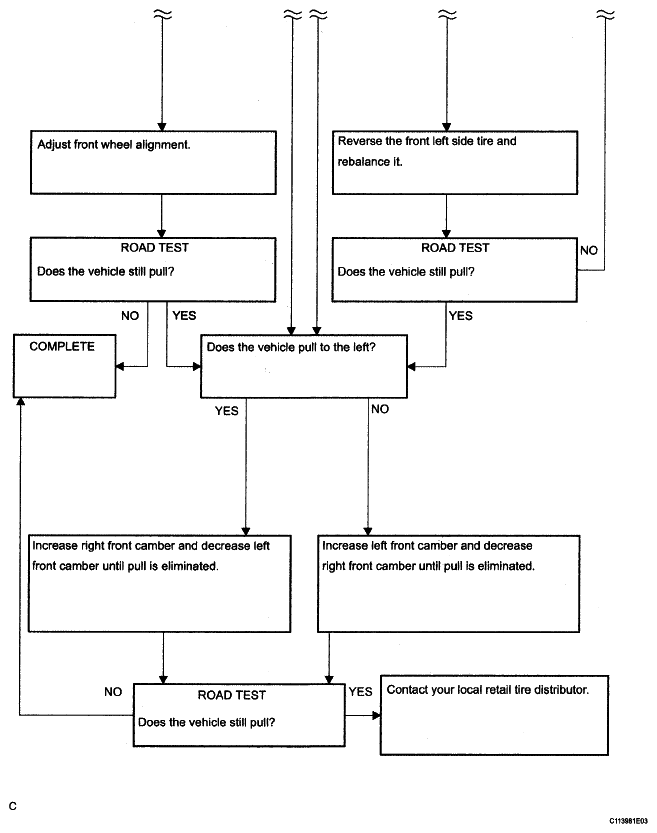

Fig 2: Suspension System Troubleshooting Flow Chart (2 Of 2)
G04964548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
