Combination Meter: Notes

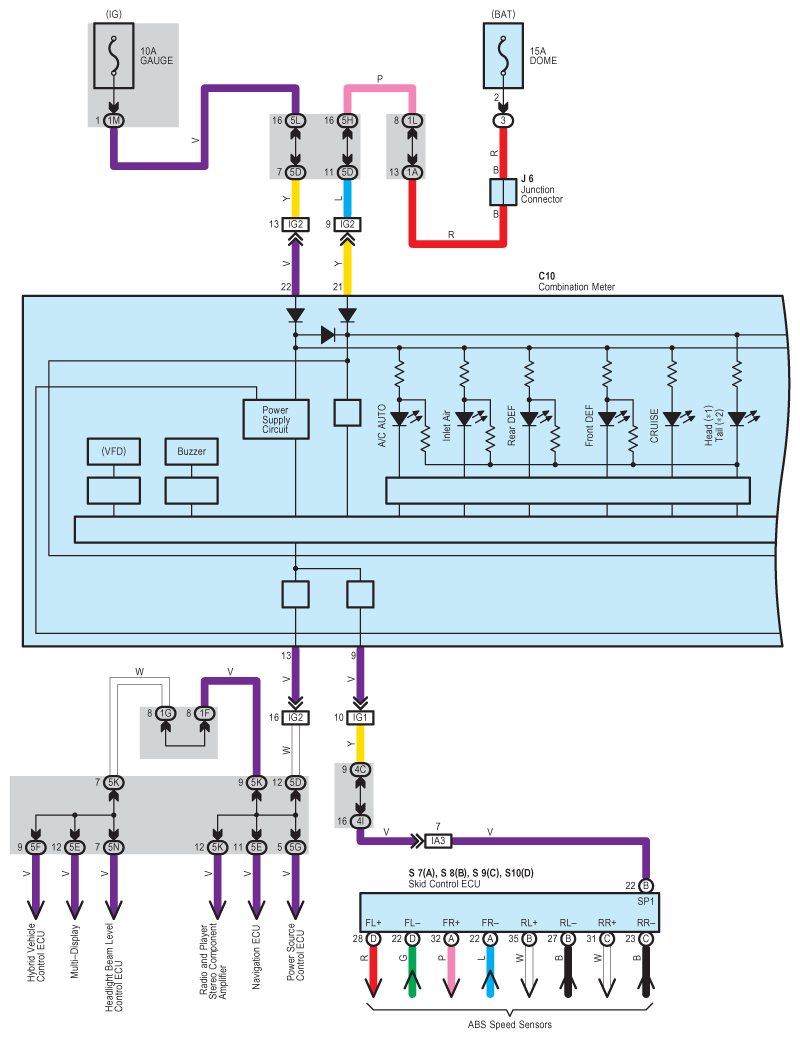

Fig 1: Combination Meter - Circuit Diagram (1 Of 4)
G07577127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

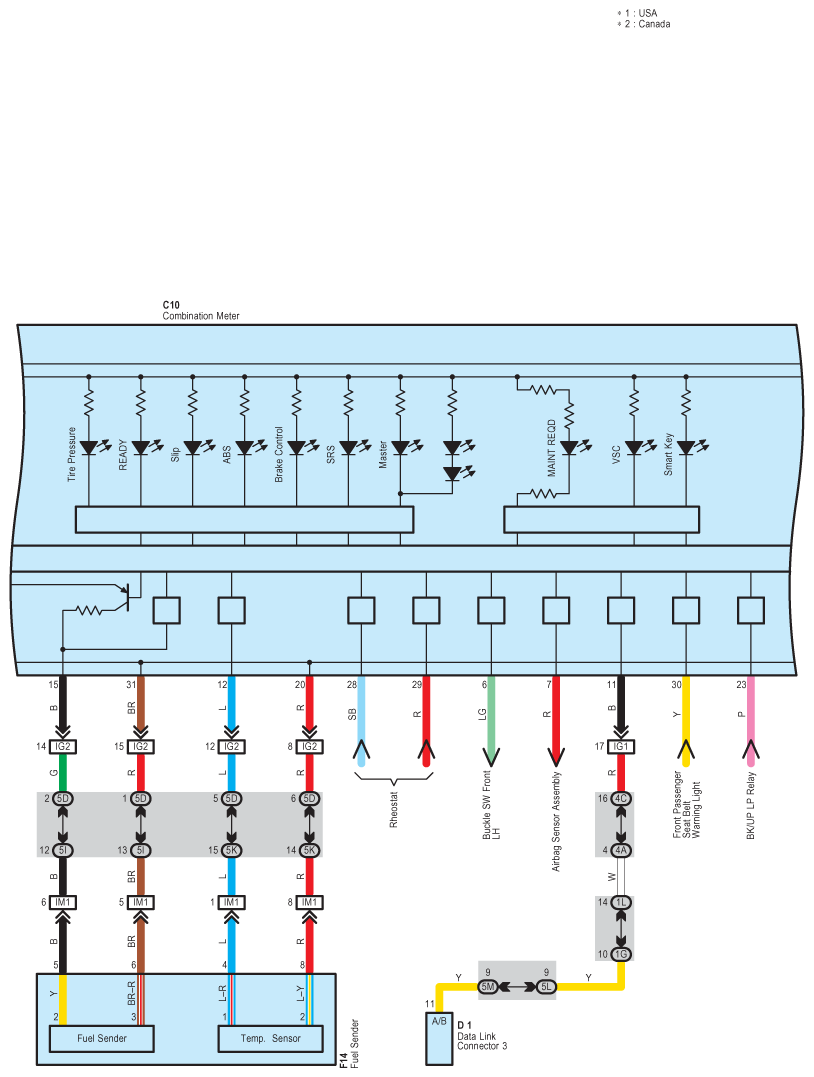

Fig 2: Combination Meter - Circuit Diagram (2 Of 4)
G07577128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

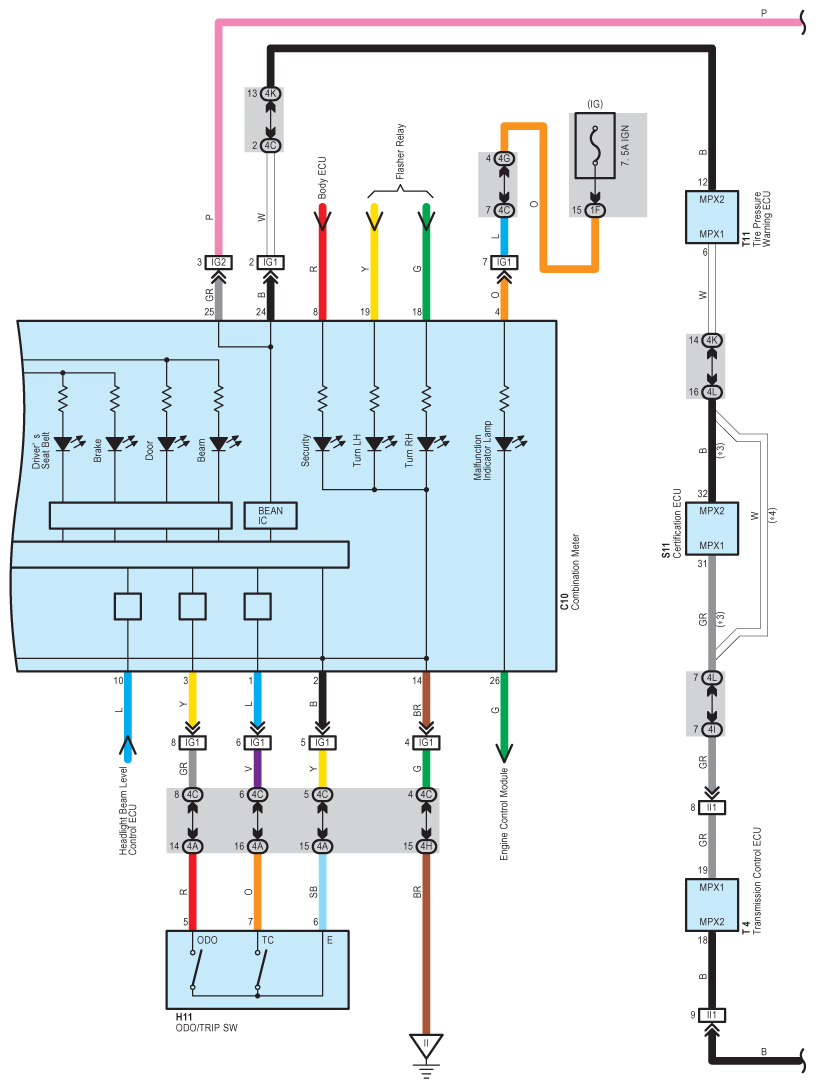

Fig 3: Combination Meter - Circuit Diagram (3 Of 4)
G07577129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

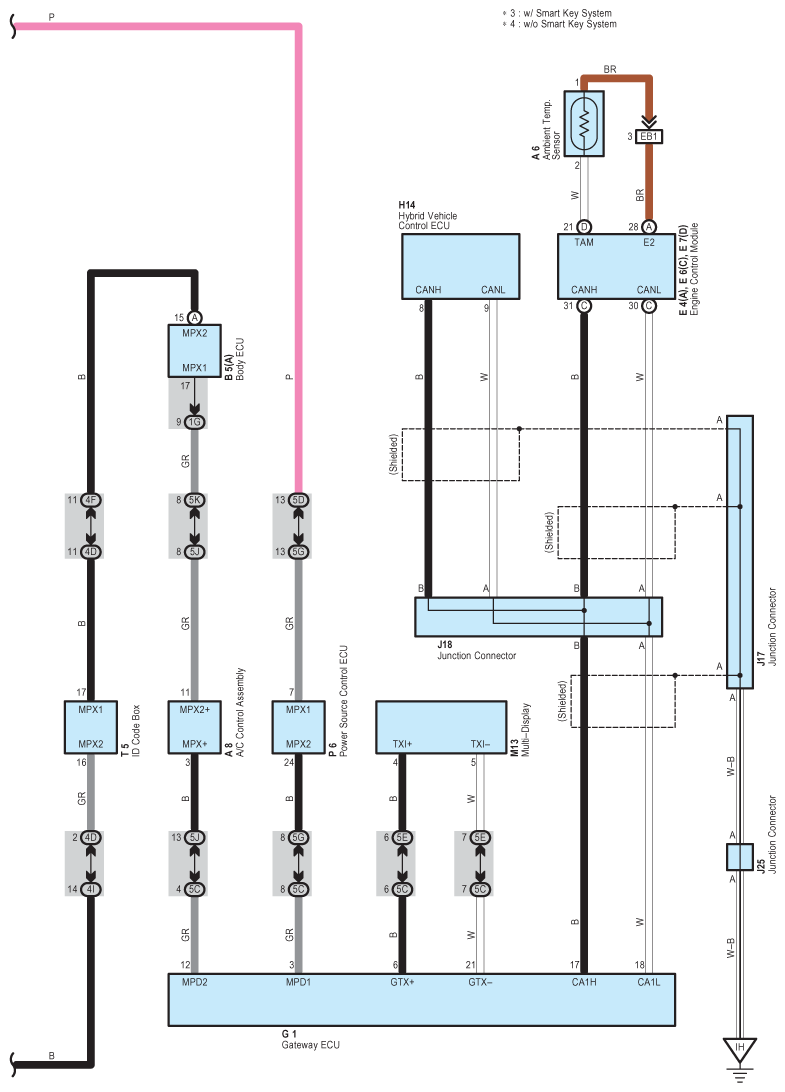

Fig 4: Combination Meter - Circuit Diagram (4 Of 4)
G07577130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
