Horn System: Notes

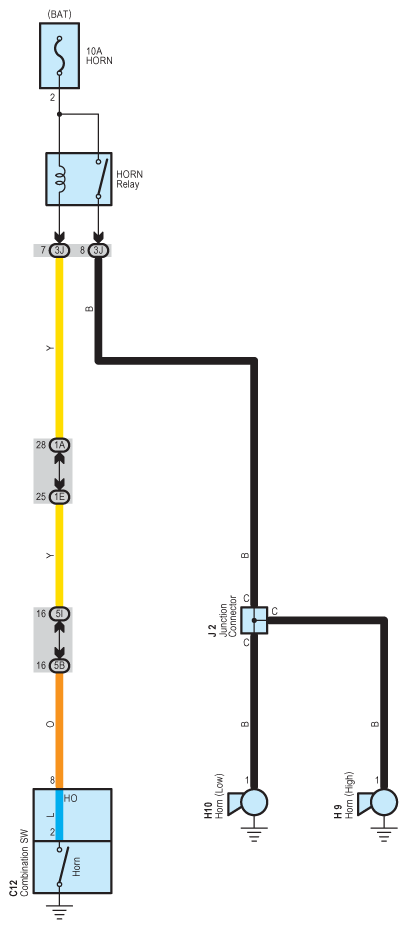

Fig 1: Horn - Circuit Diagram

G07577107

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
