Multi-Display and Audio System for Separate Amplifier: Notes

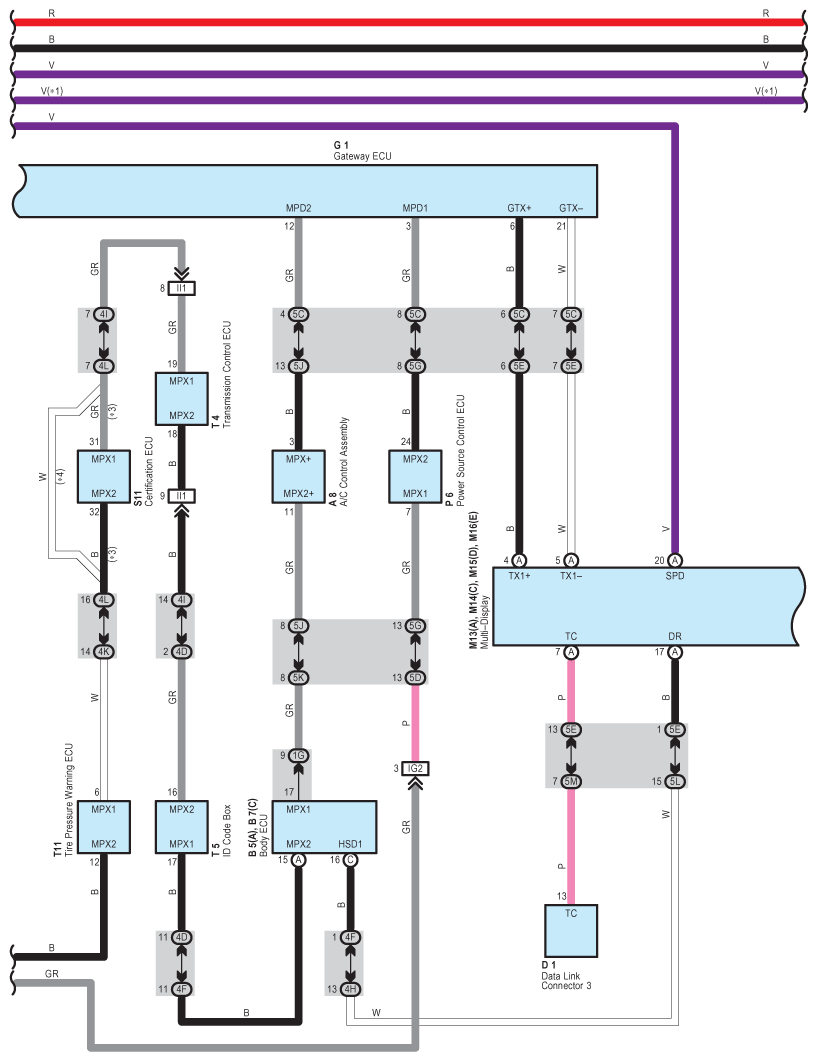

Fig 1: Multi-Display And Audio System For Separate Amplifier - Circuit Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

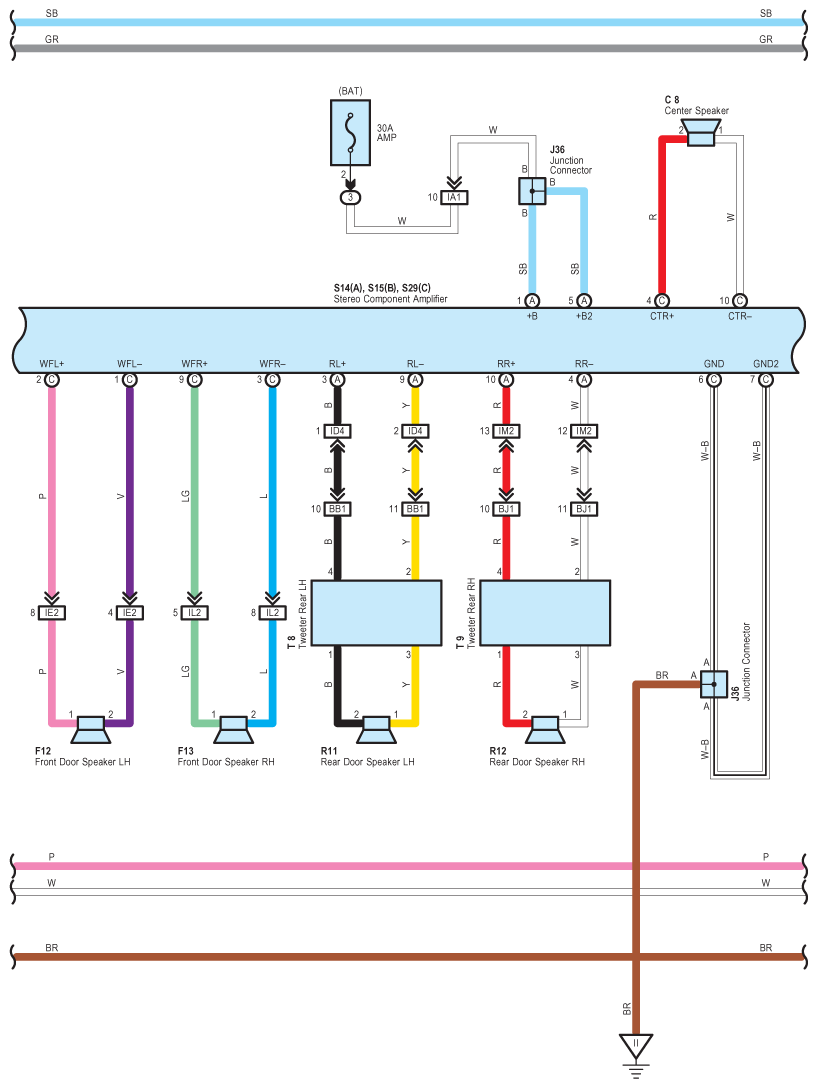

Fig 2: Multi-Display And Audio System For Separate Amplifier - Circuit Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

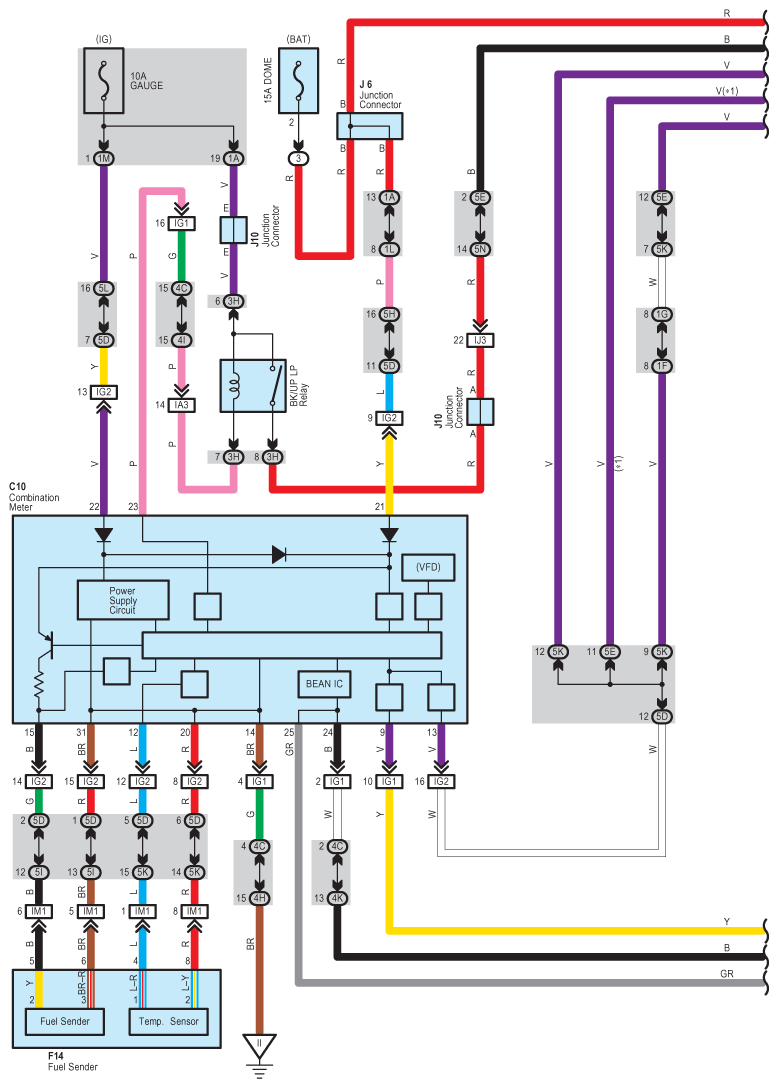

Fig 3: Multi-Display And Audio System For Separate Amplifier - Circuit Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

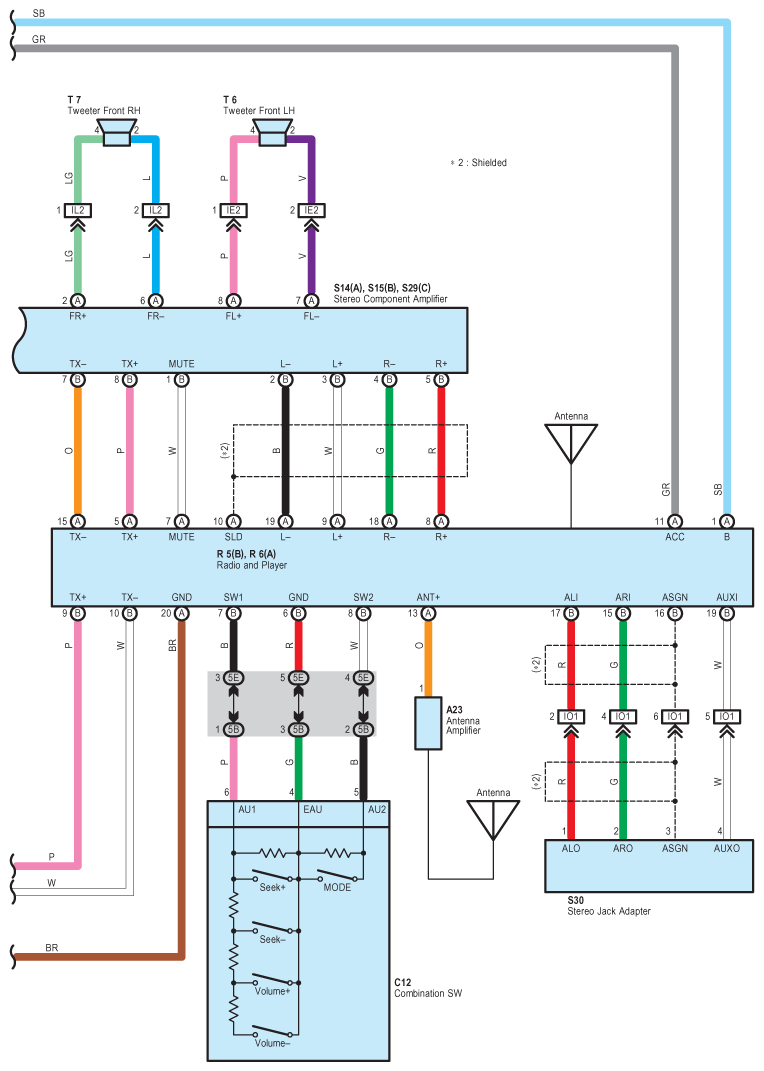

Fig 4: Multi-Display And Audio System For Separate Amplifier - Circuit Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

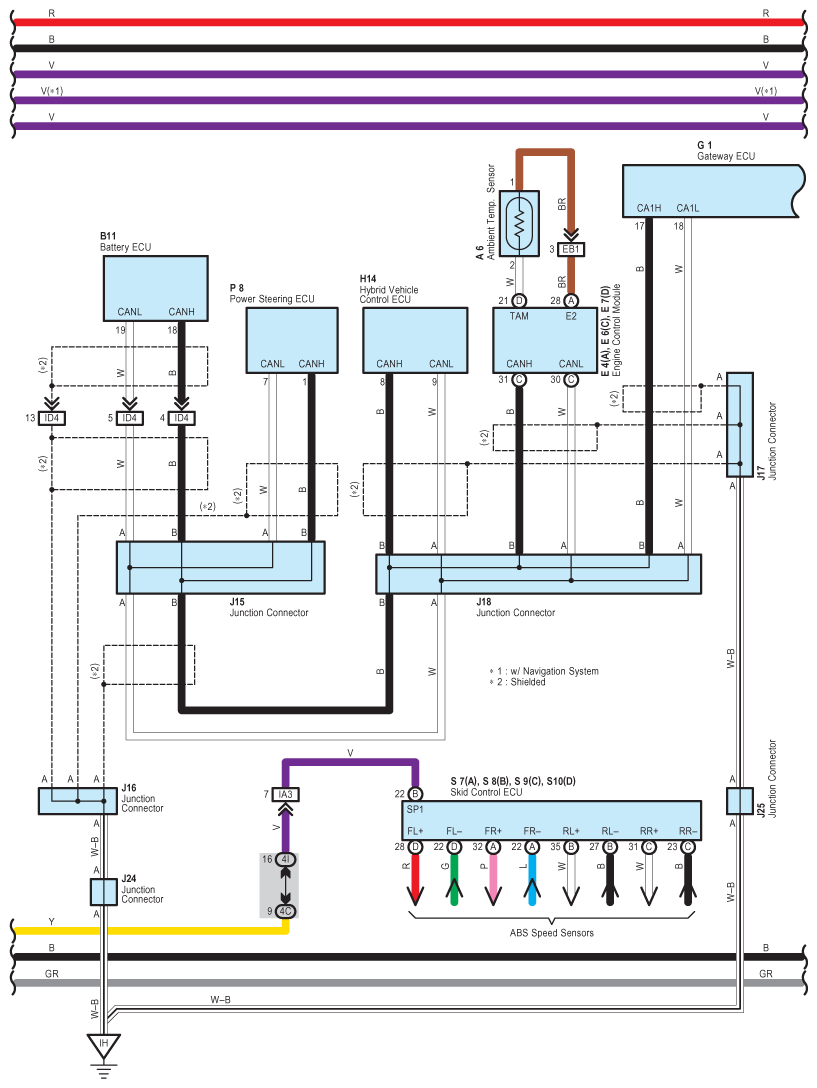

Fig 5: Multi-Display And Audio System For Separate Amplifier - Circuit Diagram (5 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

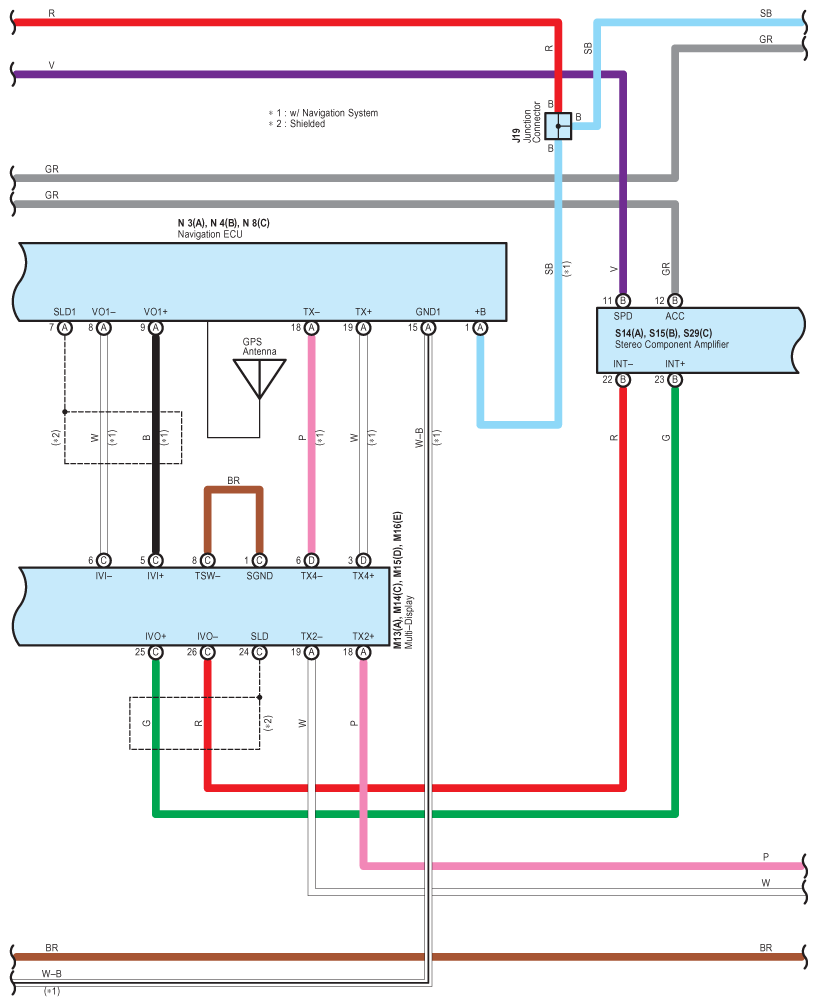

Fig 6: Multi-Display And Audio System For Separate Amplifier - Circuit Diagram (6 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

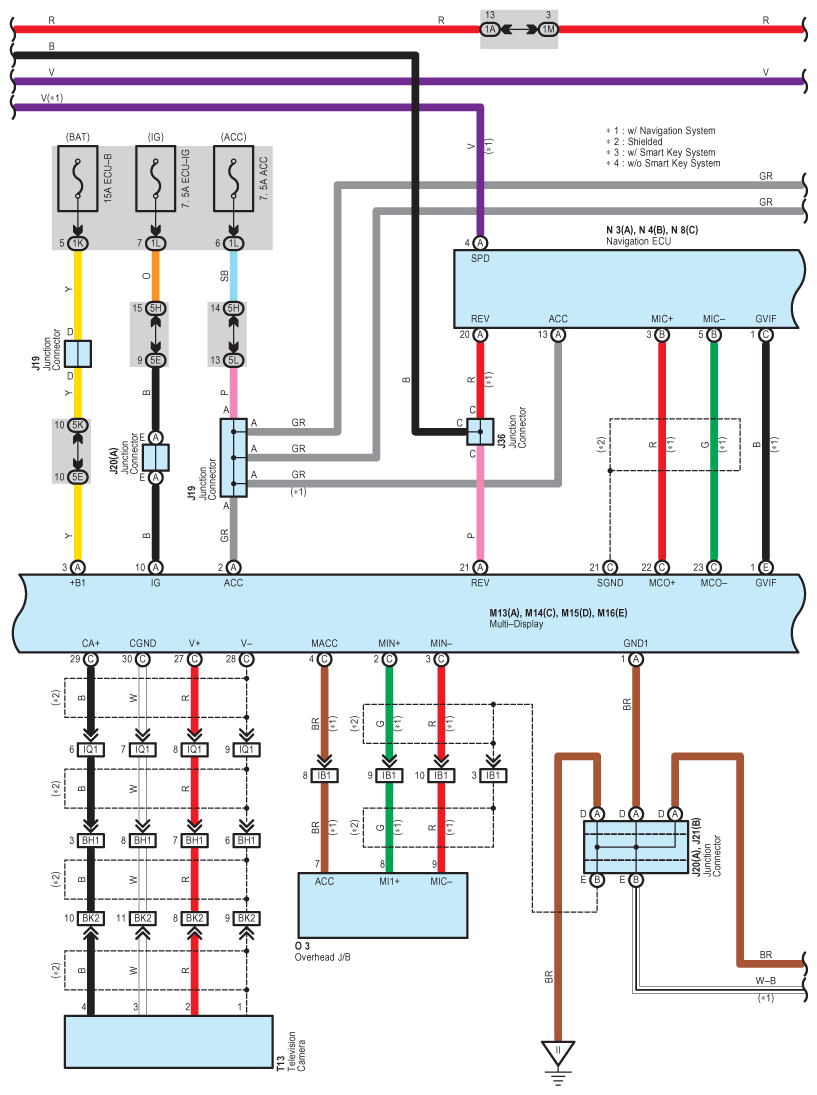

Fig 7: Multi-Display And Audio System For Separate Amplifier - Circuit Diagram (7 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
