Power Source System: Notes

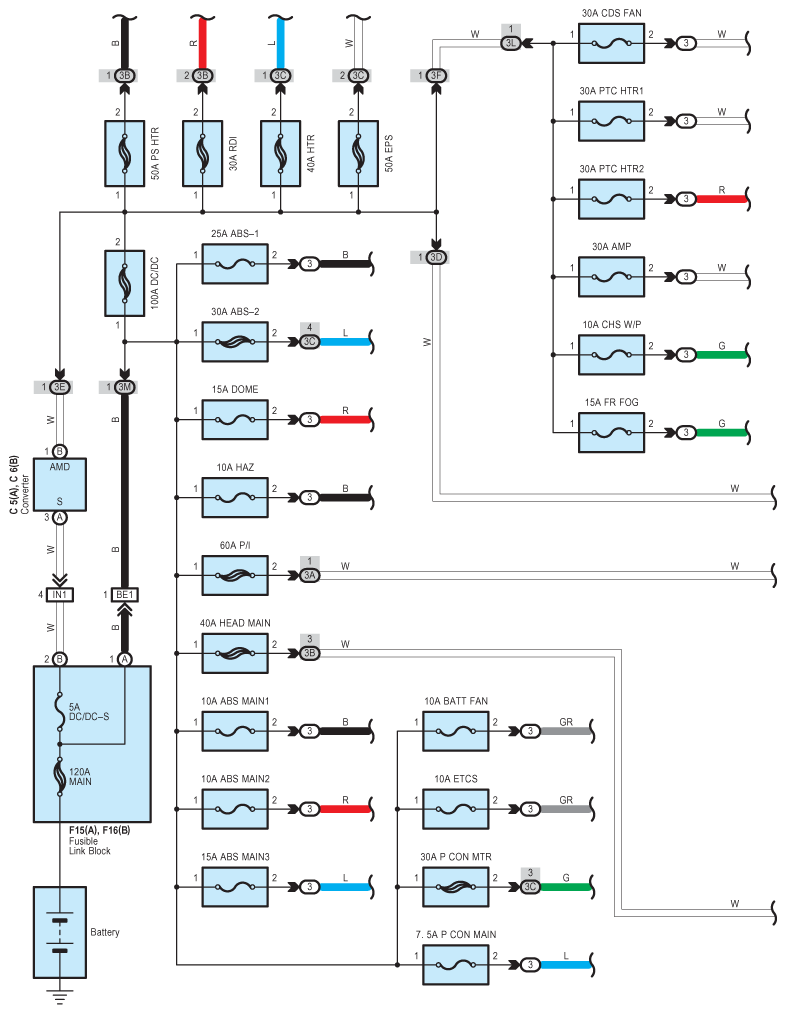

Fig 1: Power Source - Circuit Diagram (1 Of 3)
G07576945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

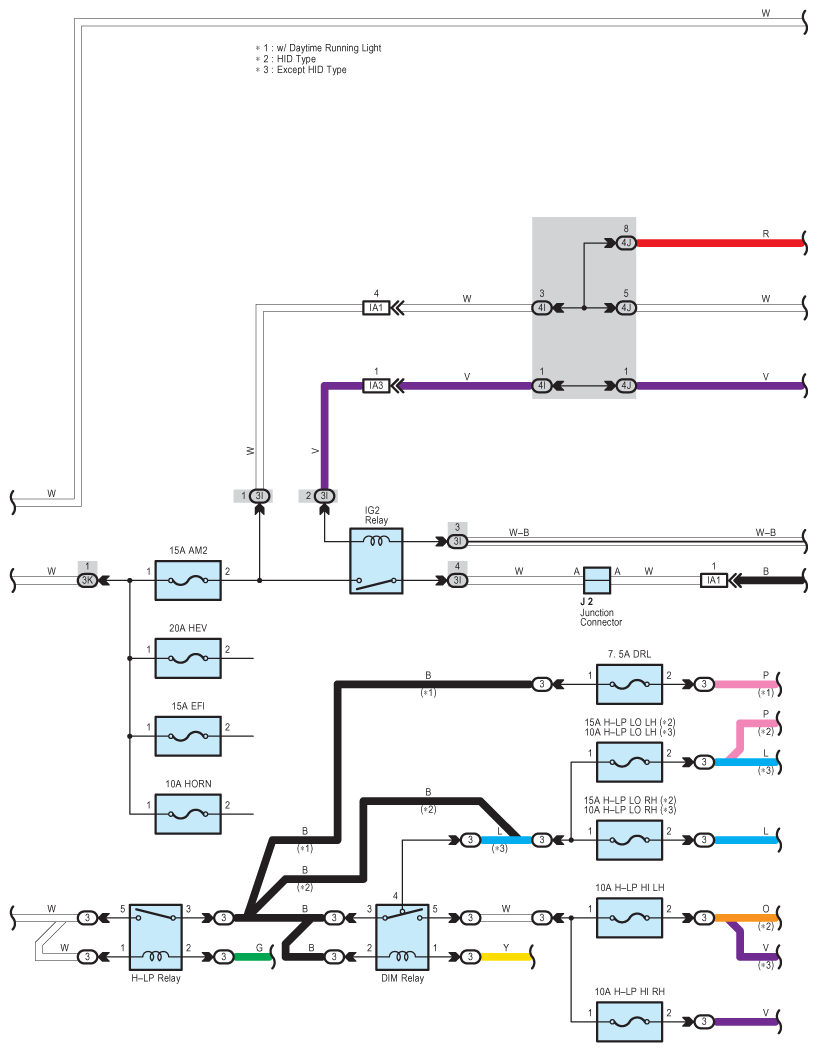

Fig 2: Power Source - Circuit Diagram (2 Of 3)
G07576946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

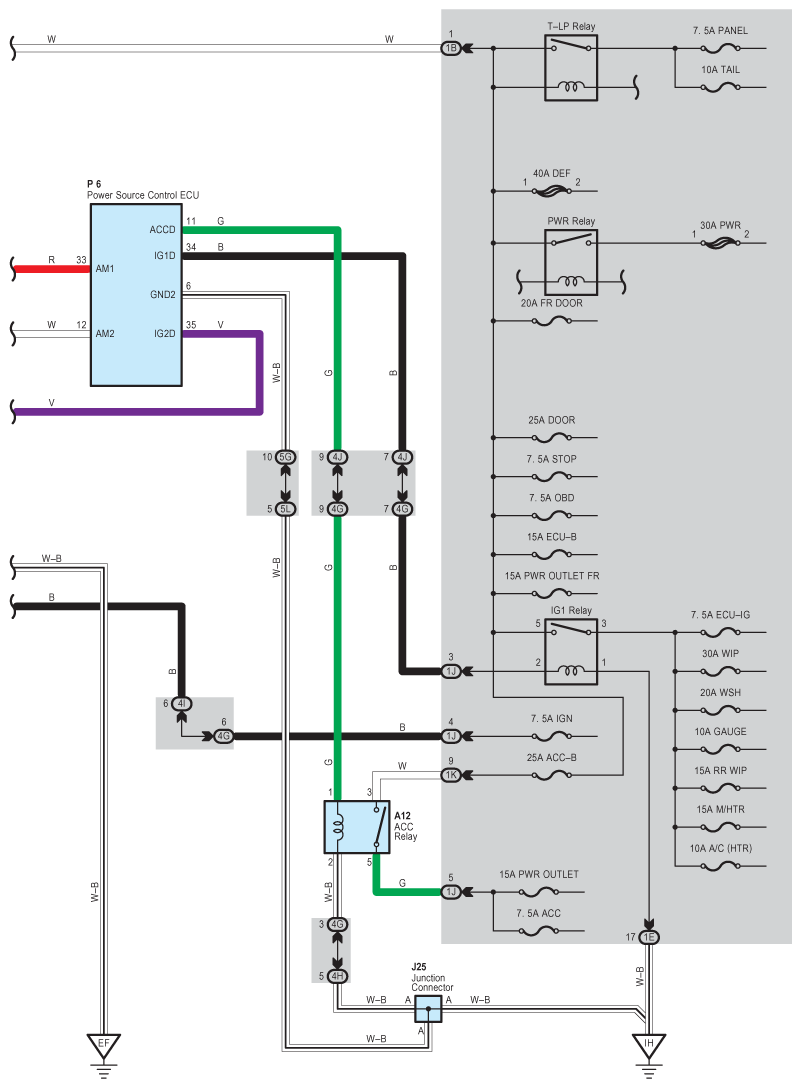

Fig 3: Power Source - Circuit Diagram (3 Of 3)
G07576947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
