TOYOTA Hybrid System: Notes

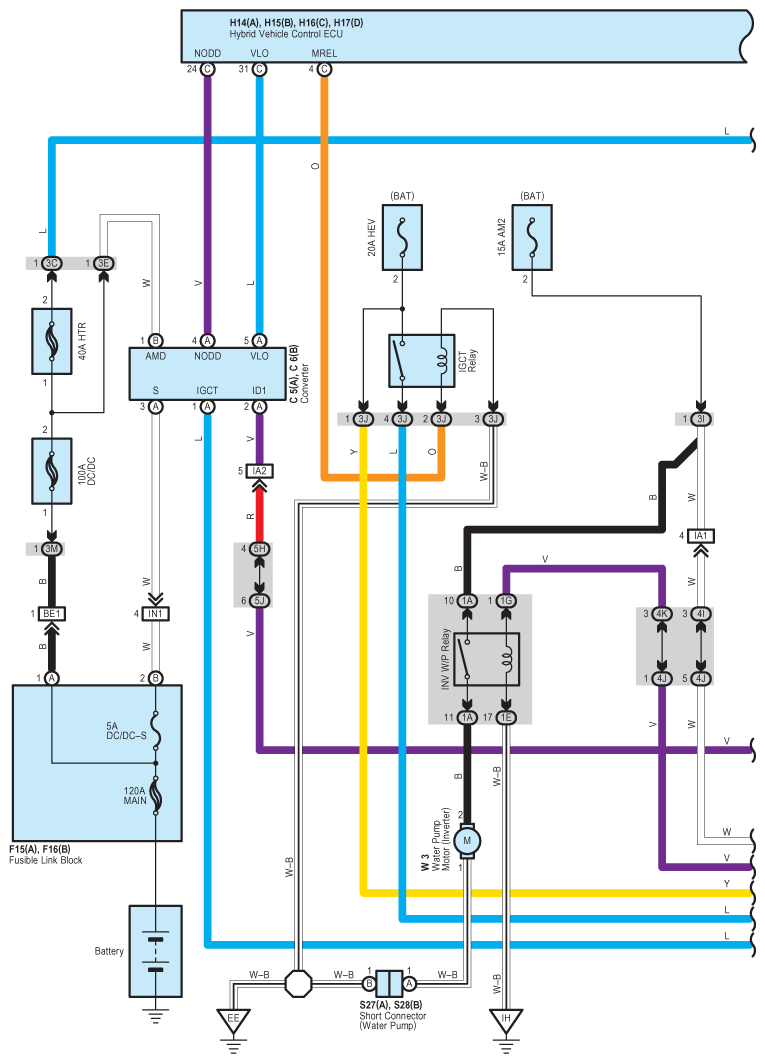

Fig 1: Toyota Hybrid System - Circuit Diagram (1 Of 27)

G07576963

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

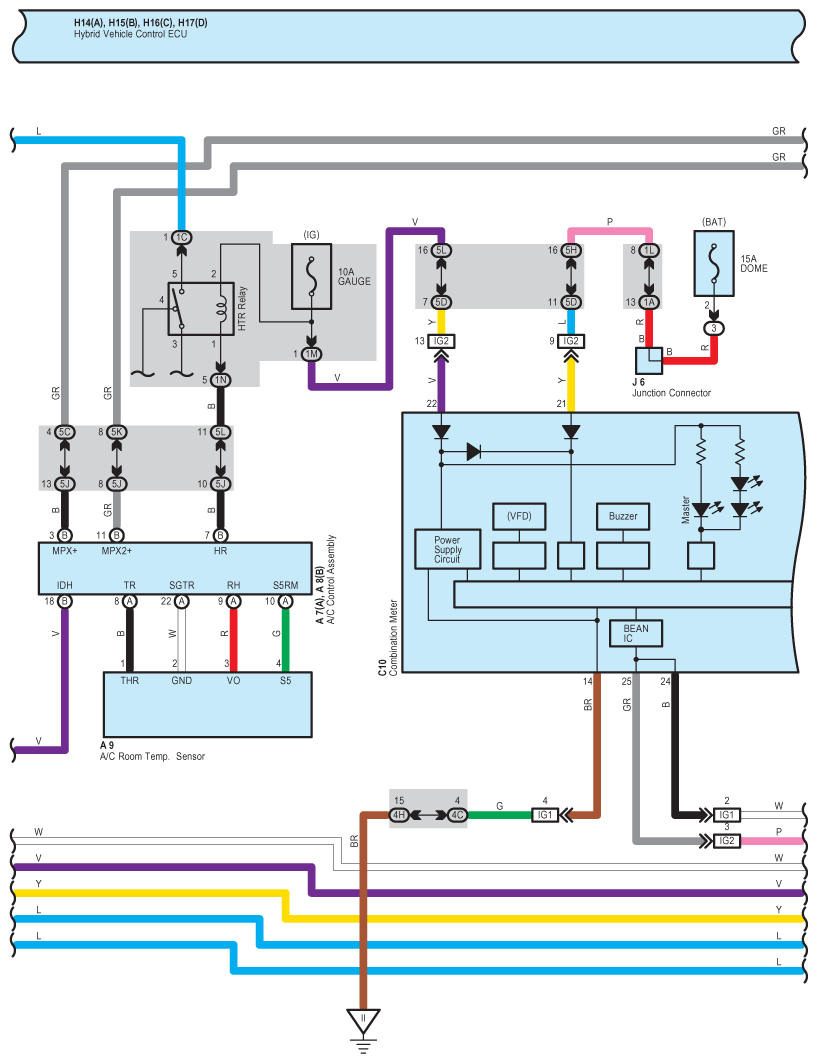

Fig 2: Toyota Hybrid System - Circuit Diagram (2 Of 27)

G07576964

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

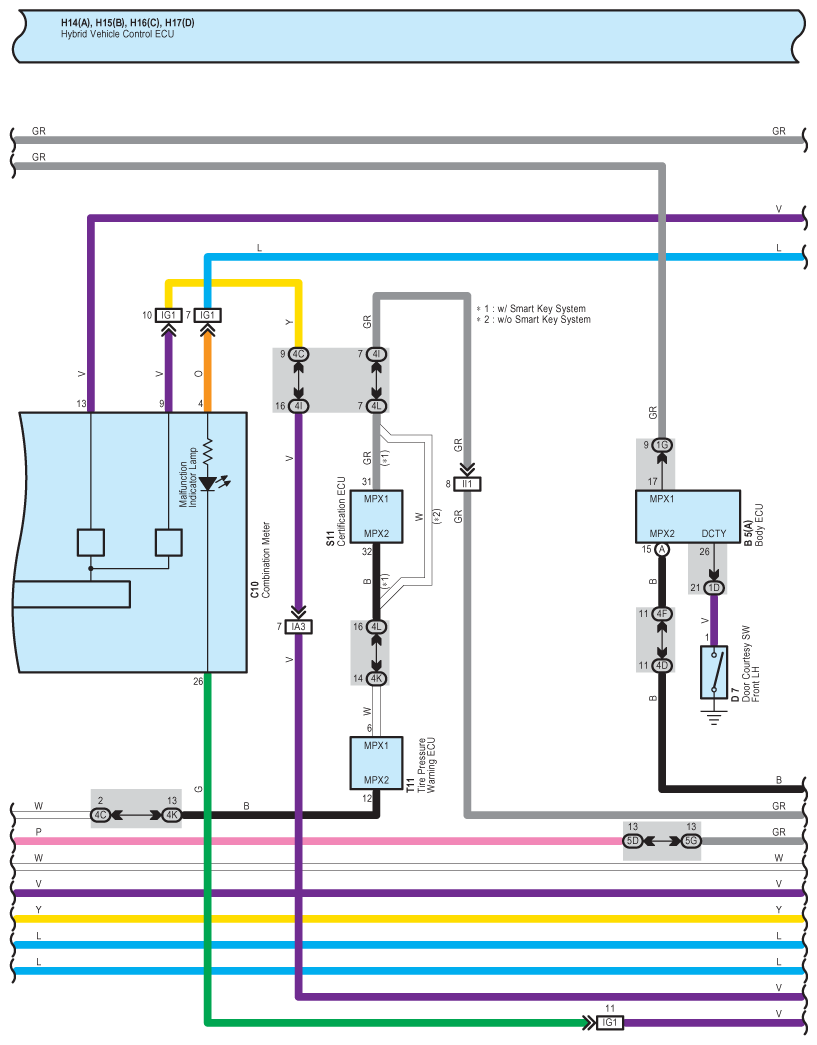

Fig 3: Toyota Hybrid System - Circuit Diagram (3 Of 27)

G07576965

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

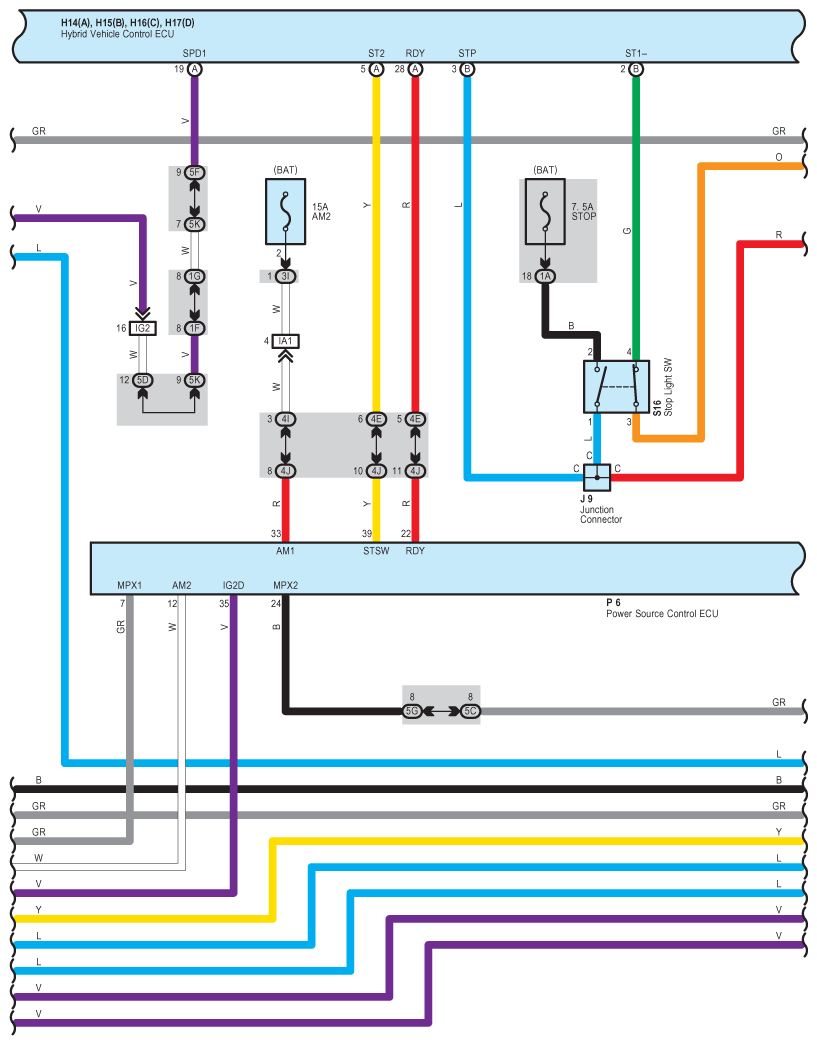

Fig 4: Toyota Hybrid System - Circuit Diagram (4 Of 27)

G07576966

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

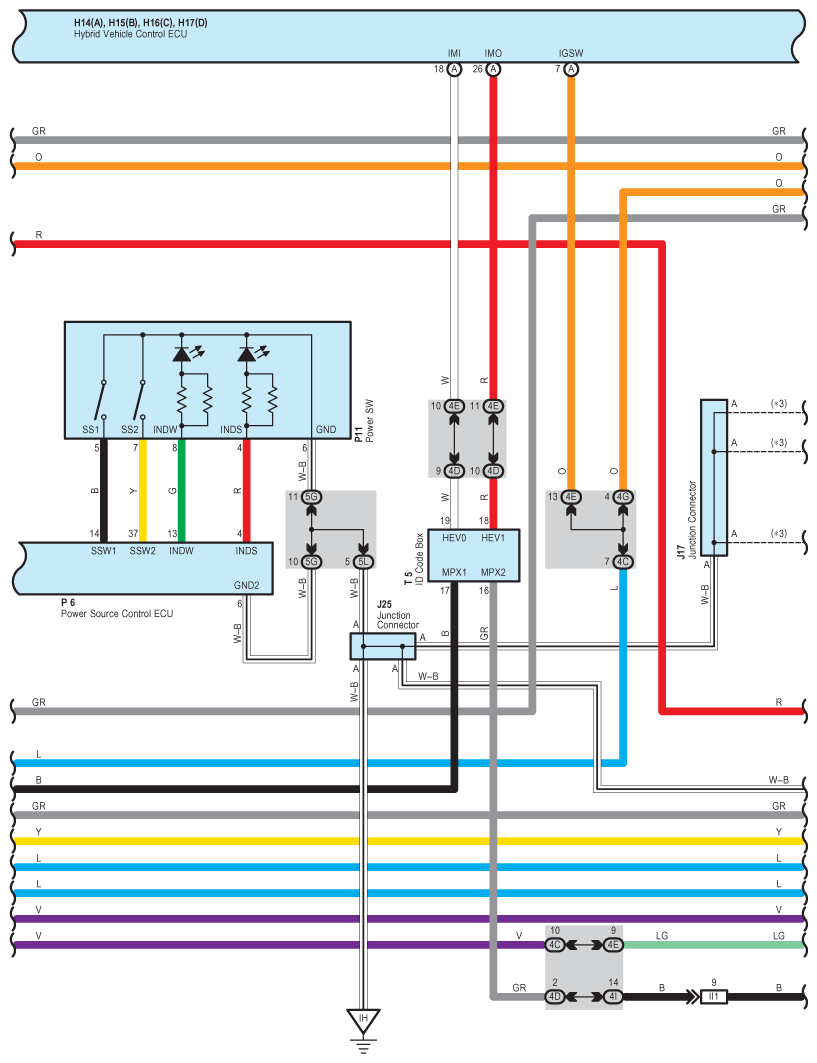

Fig 5: Toyota Hybrid System - Circuit Diagram (5 Of 27)

G07576967

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

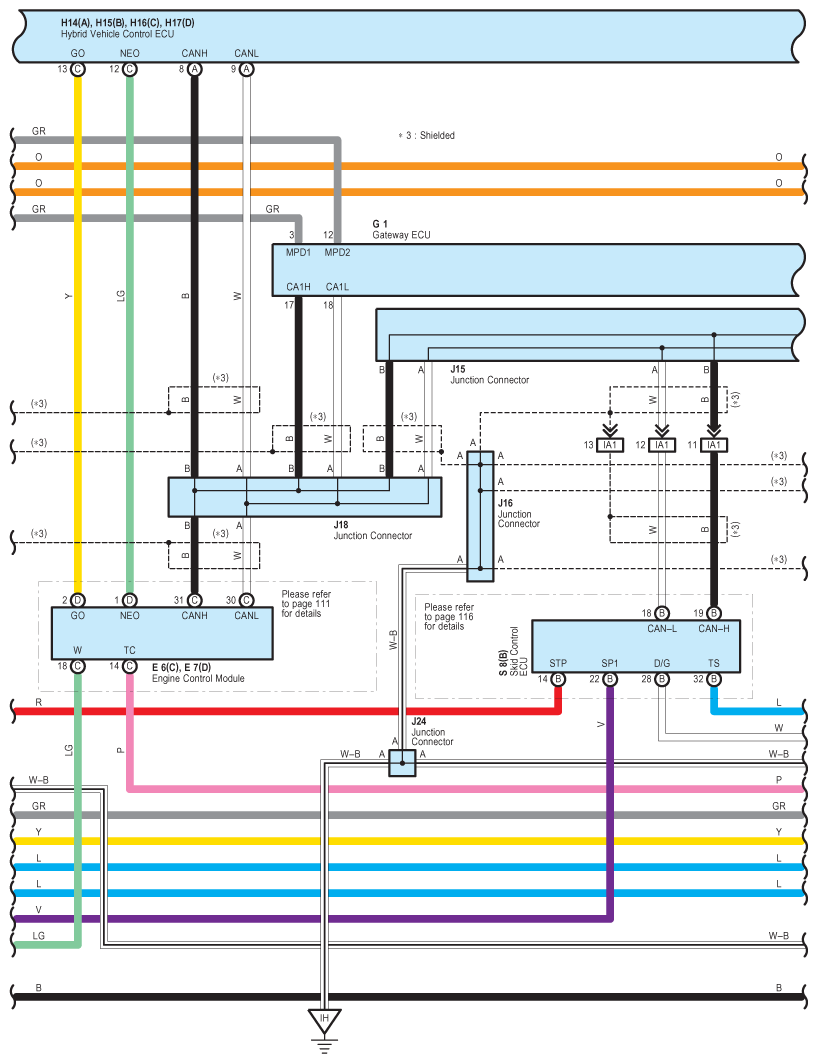

Fig 6: Toyota Hybrid System - Circuit Diagram (6 Of 27)

G07576968

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

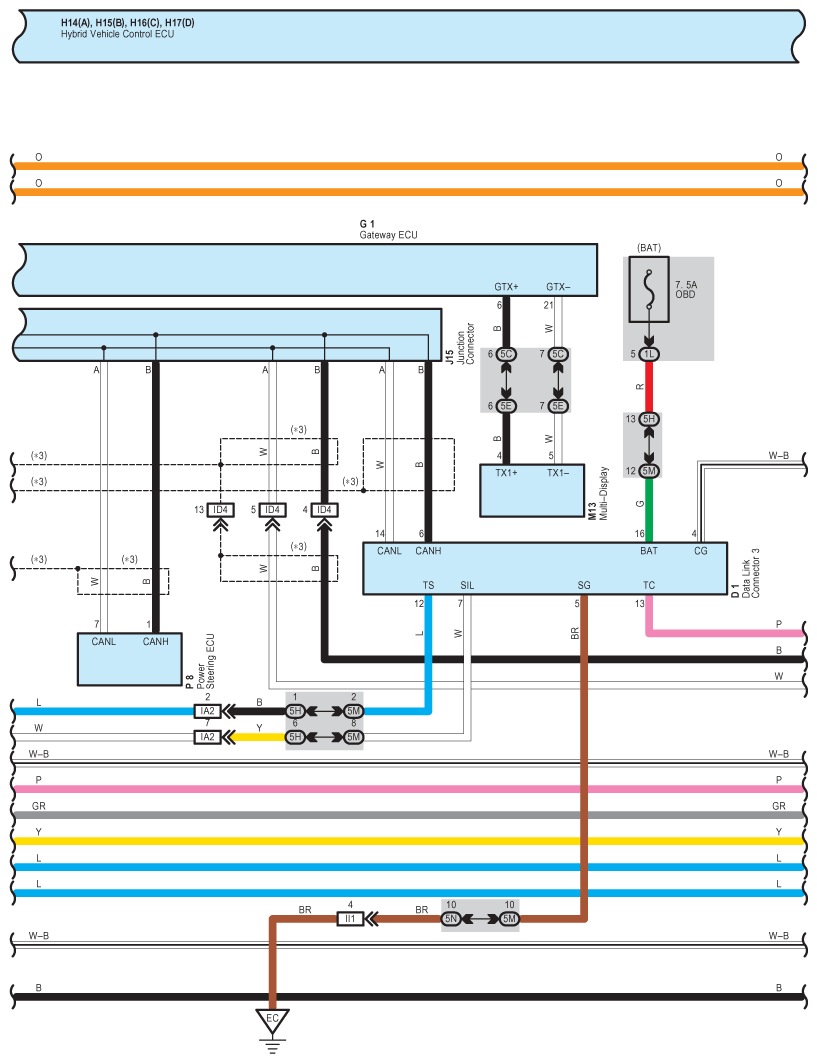

Fig 7: Toyota Hybrid System - Circuit Diagram (7 Of 27)

G07576969

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

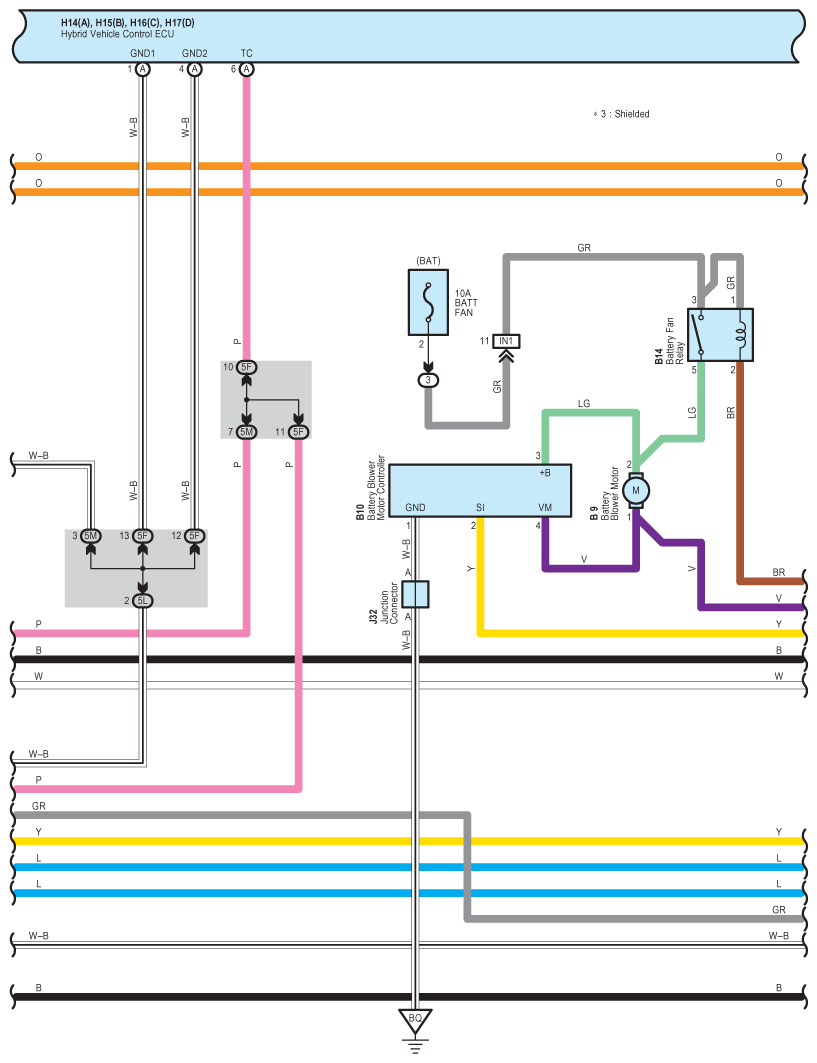

Fig 8: Toyota Hybrid System - Circuit Diagram (8 Of 27)

G07576970

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

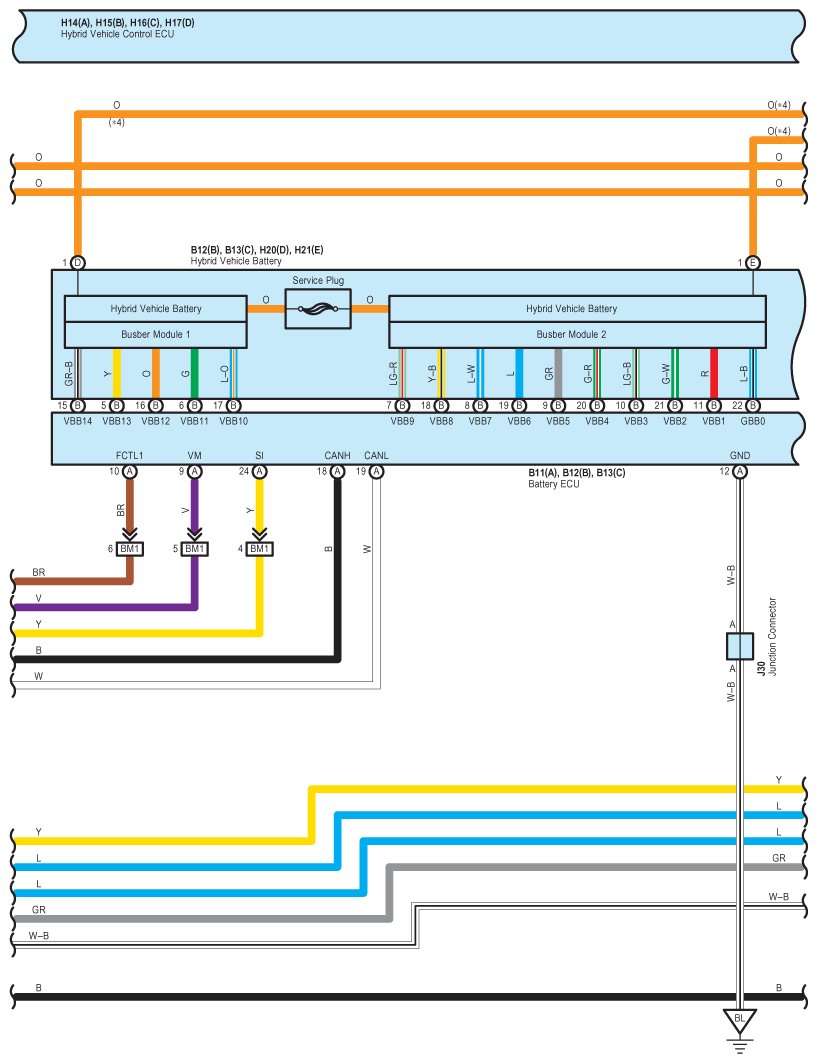

Fig 9: Toyota Hybrid System - Circuit Diagram (9 Of 27)

G07576971

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

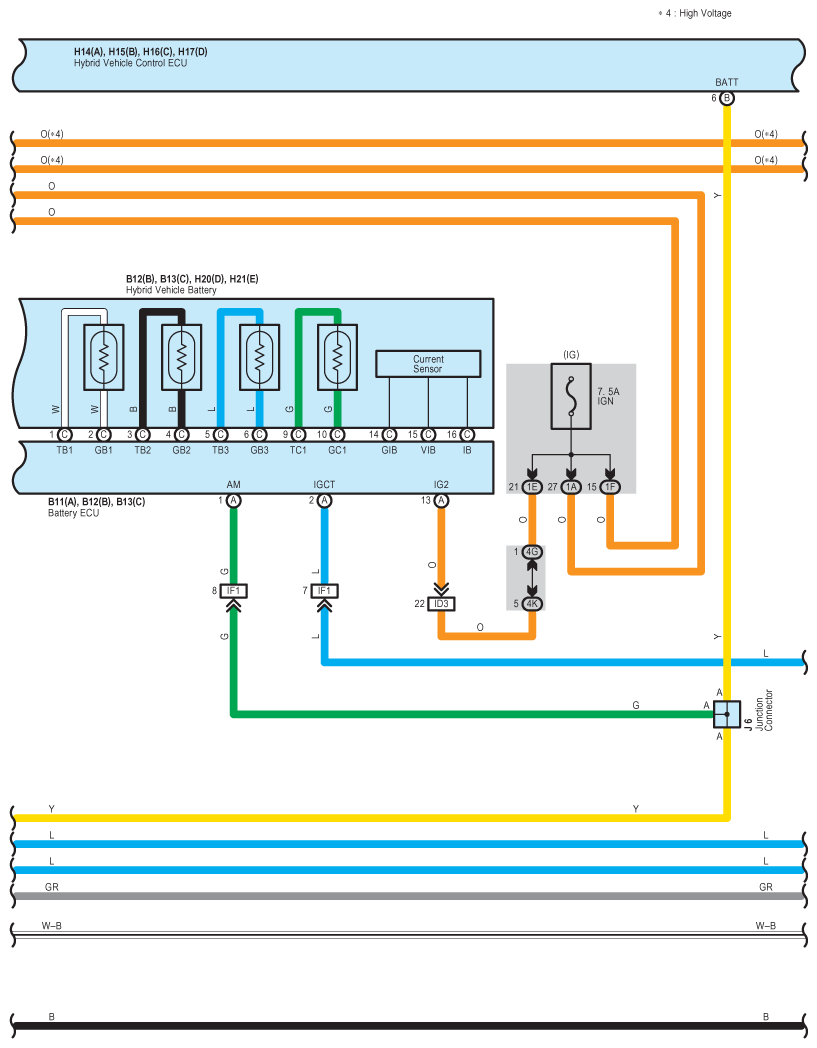

Fig 10: Toyota Hybrid System - Circuit Diagram (10 Of 27)

G07576972

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

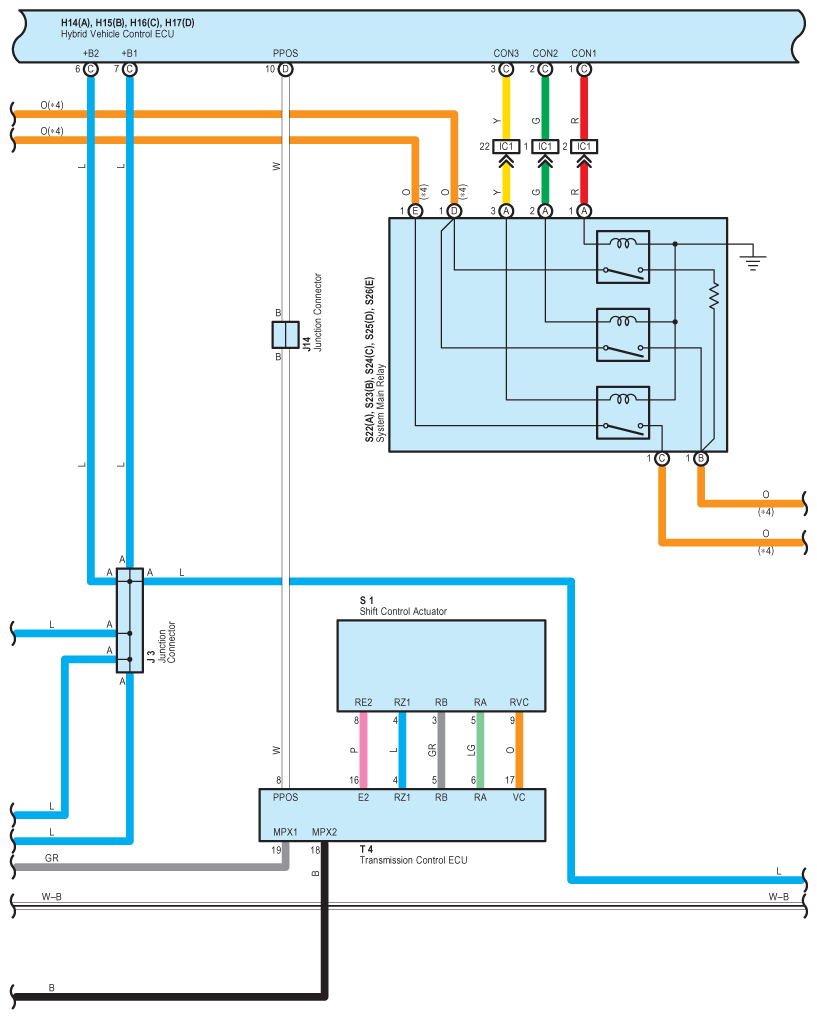

Fig 11: Toyota Hybrid System - Circuit Diagram (11 Of 27)

G07576973

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

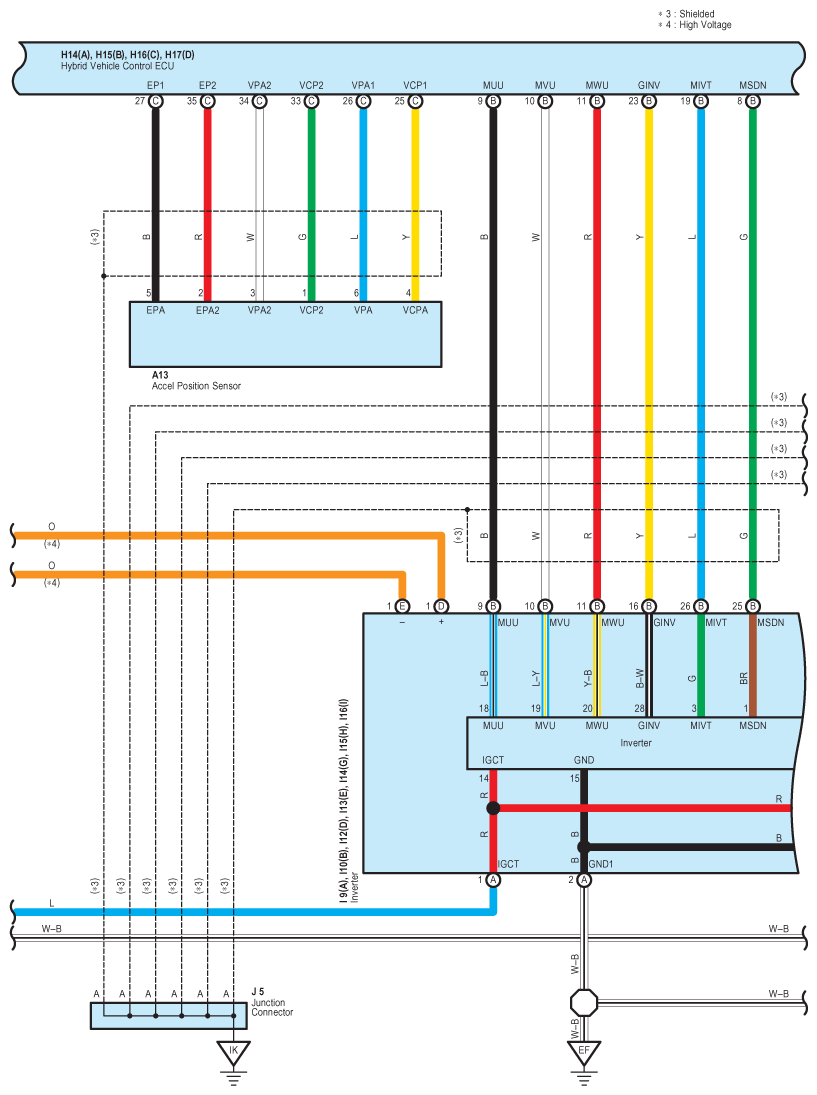

Fig 12: Toyota Hybrid System - Circuit Diagram (12 Of 27)

G07576974

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

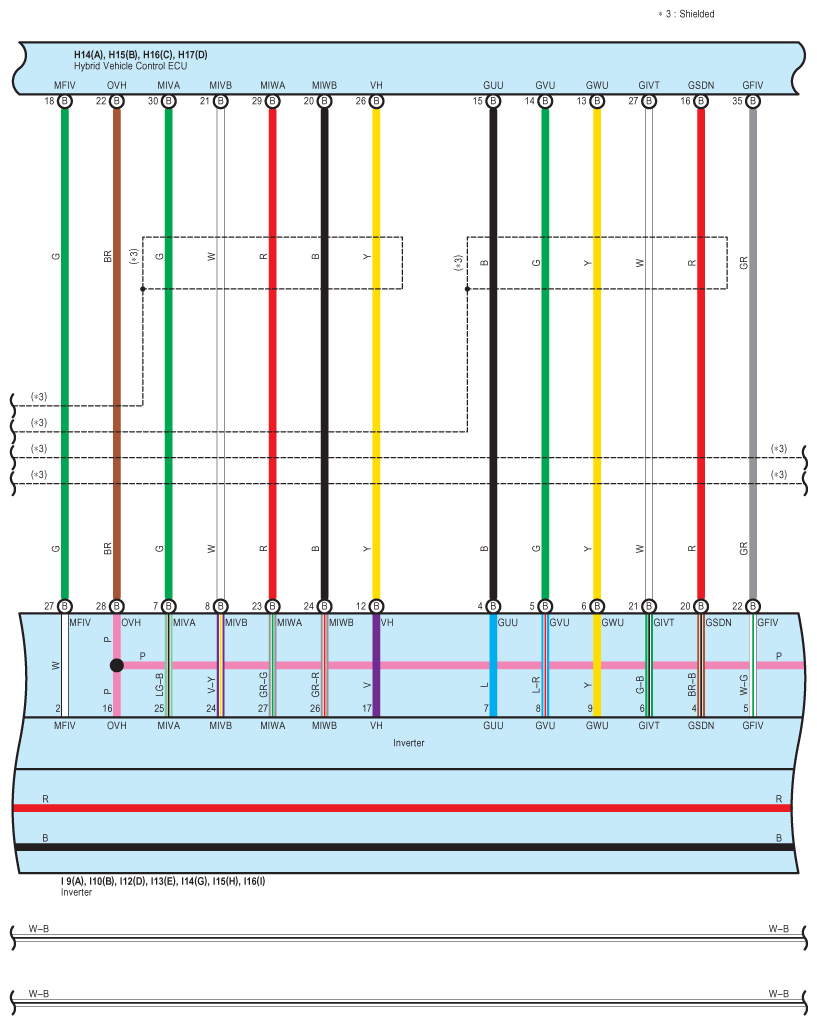

Fig 13: Toyota Hybrid System - Circuit Diagram (13 Of 27)

G07576975

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

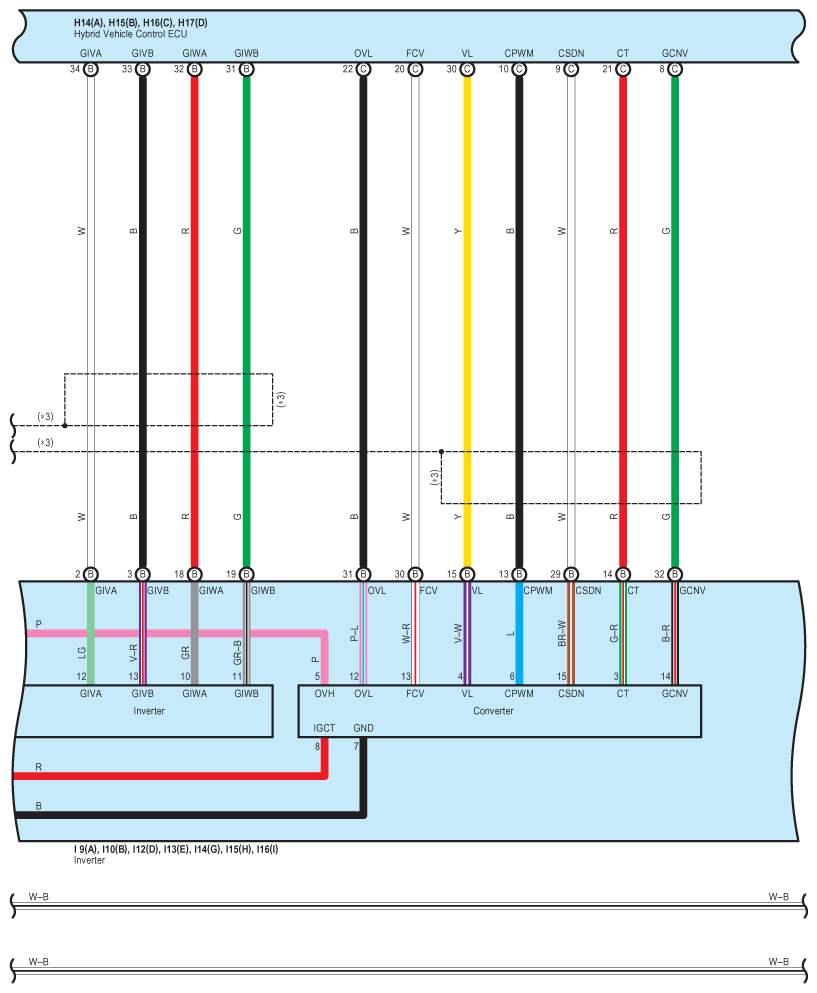

Fig 14: Toyota Hybrid System - Circuit Diagram (14 Of 27)

G07576976

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

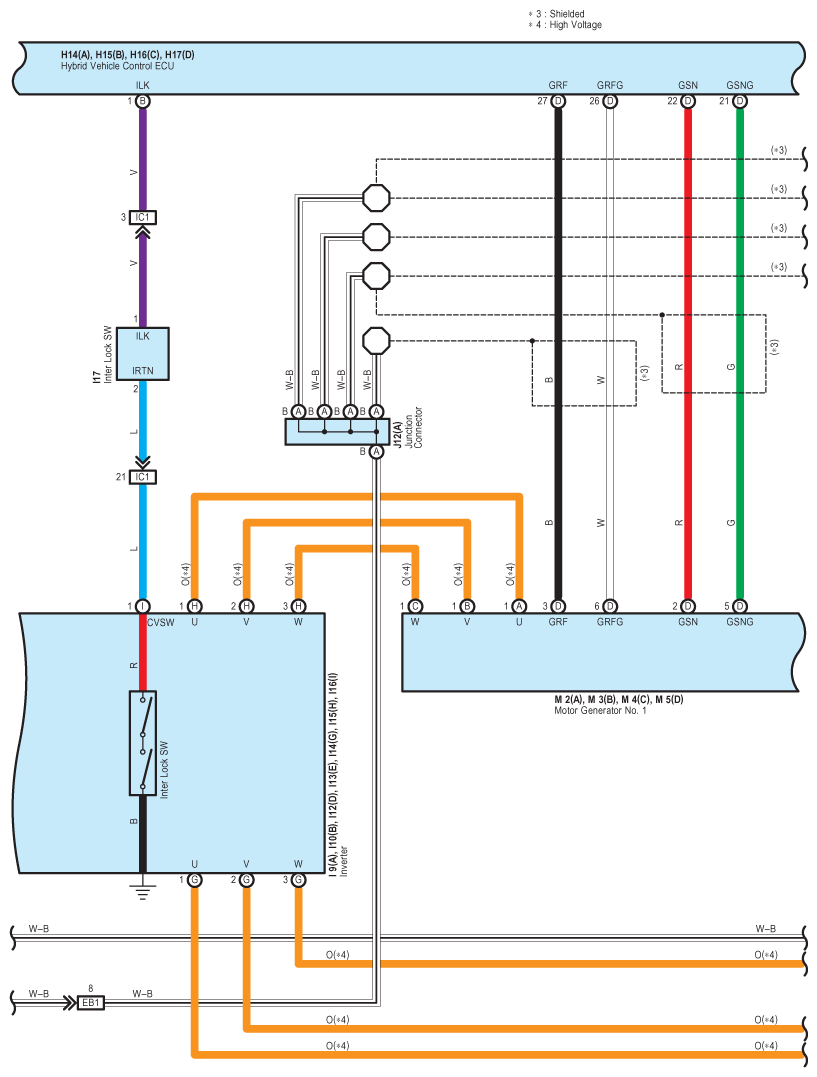

Fig 15: Toyota Hybrid System - Circuit Diagram (15 Of 27)

G07576977

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

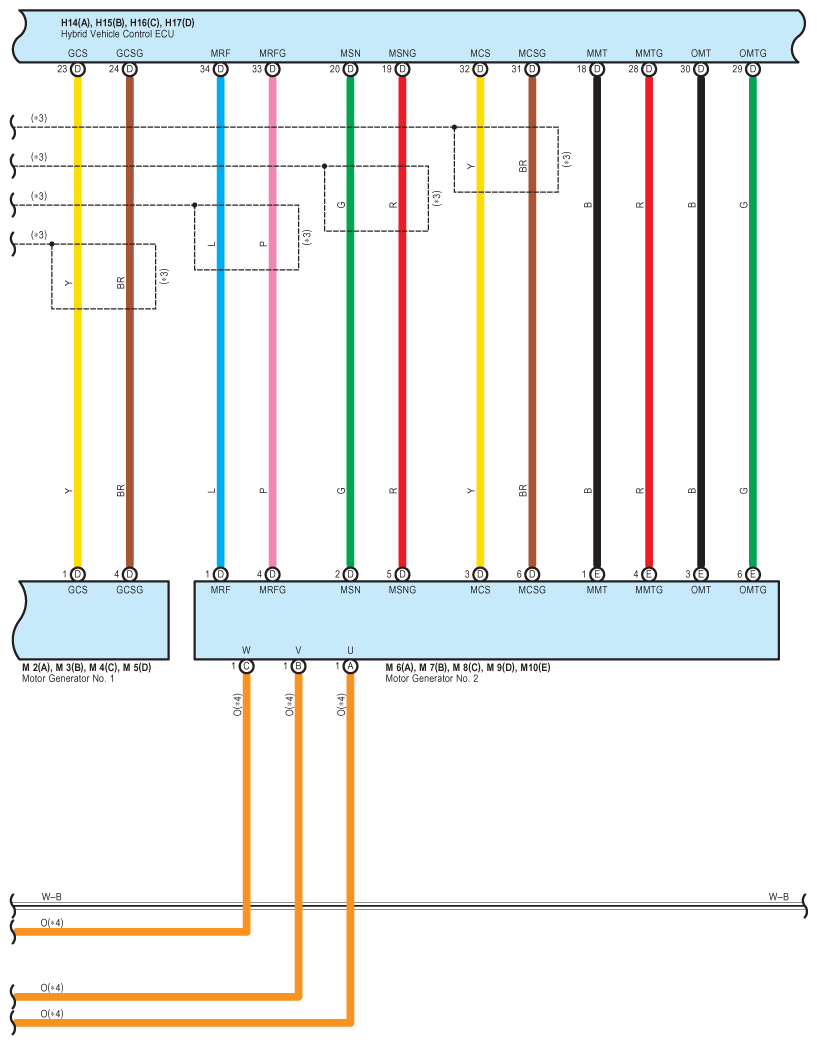

Fig 16: Toyota Hybrid System - Circuit Diagram (16 Of 27)

G07576978

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Toyota Hybrid System - Circuit Diagram (17 Of 27)

G07576979

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

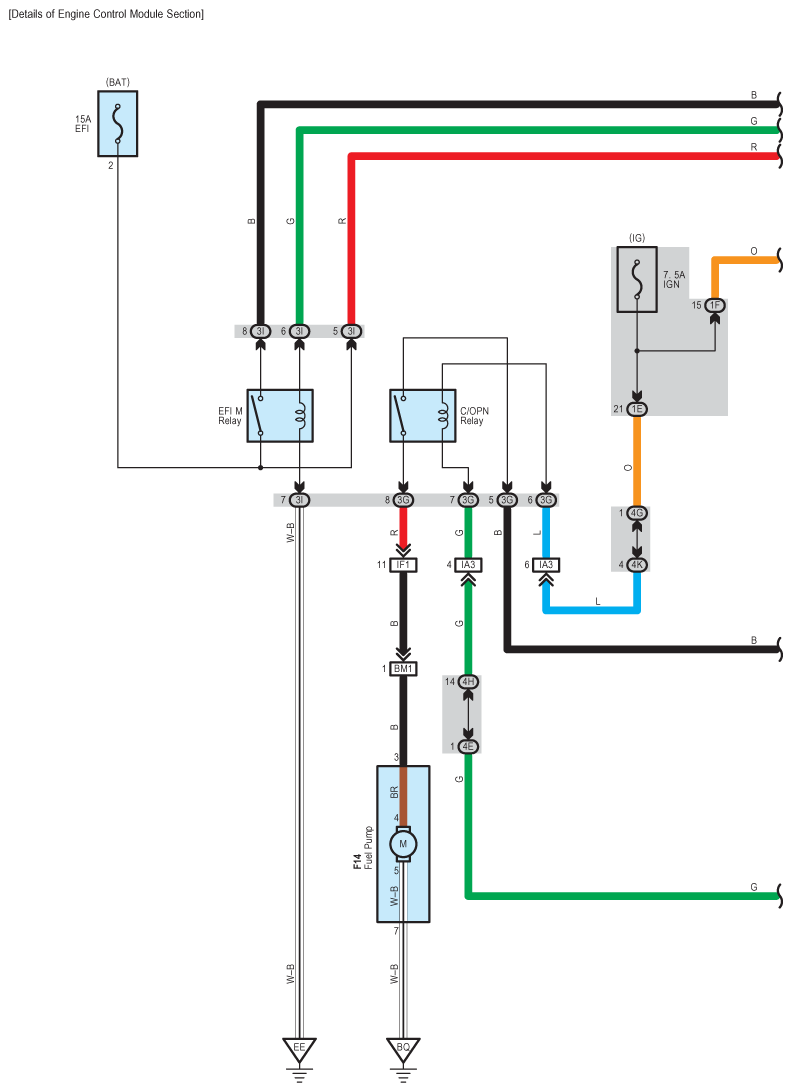

Fig 18: Toyota Hybrid System - Circuit Diagram (18 Of 27)

G07576980

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

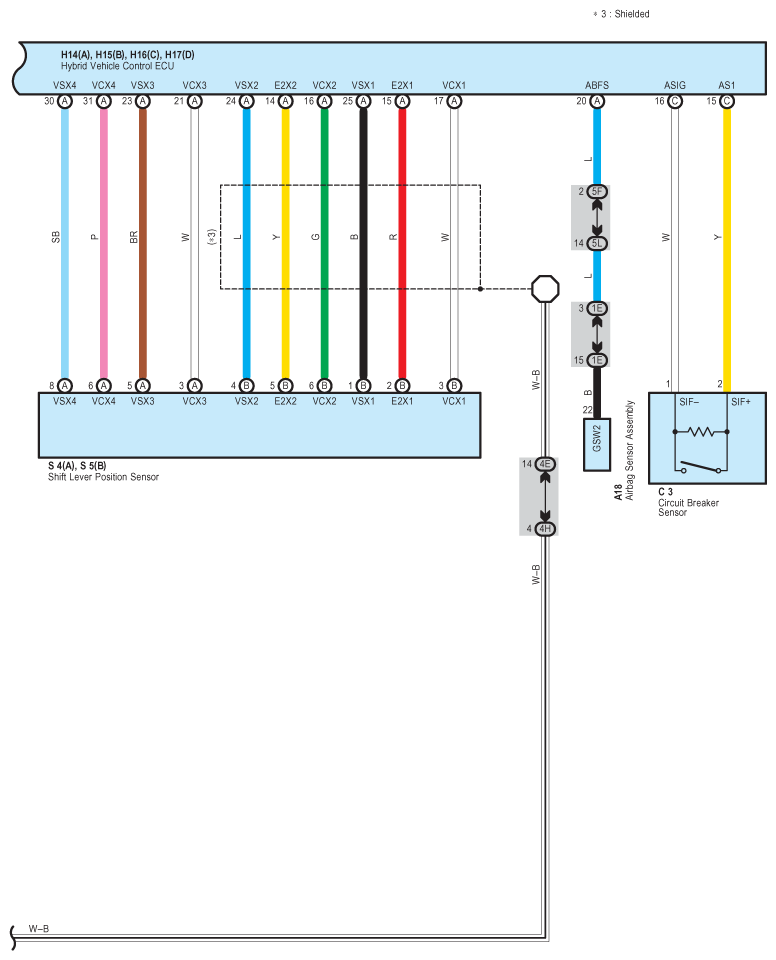

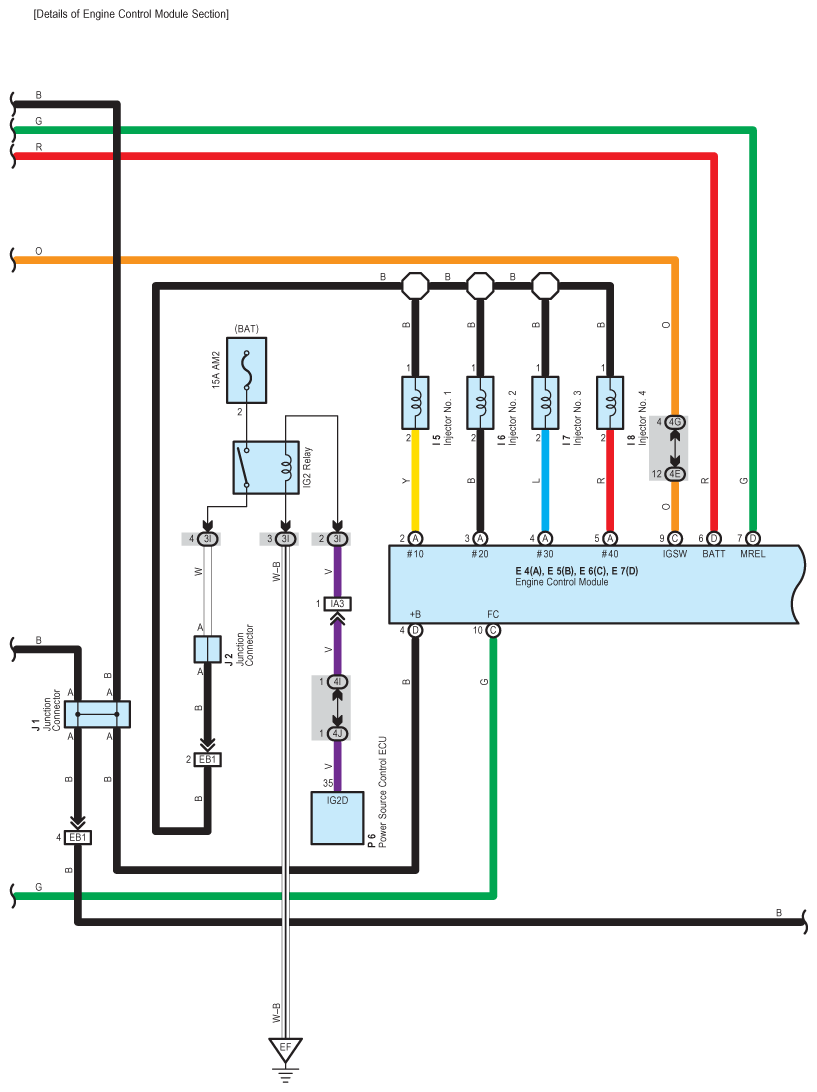

Fig 19: Toyota Hybrid System - Circuit Diagram (19 Of 27)

G07576981

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: Toyota Hybrid System - Circuit Diagram (20 Of 27)

G07576982

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Toyota Hybrid System - Circuit Diagram (21 Of 27)

G07576983

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: Toyota Hybrid System - Circuit Diagram (22 Of 27)

G07576984

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

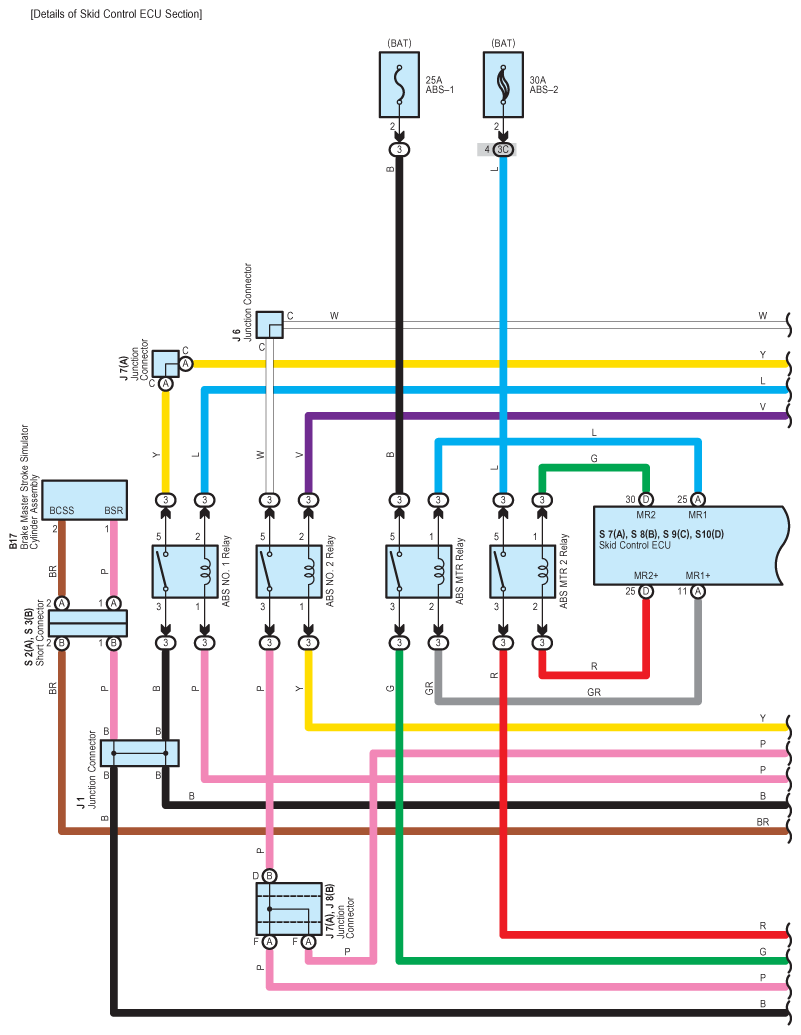

Fig 23: Toyota Hybrid System - Circuit Diagram (23 Of 27)

G07576985

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

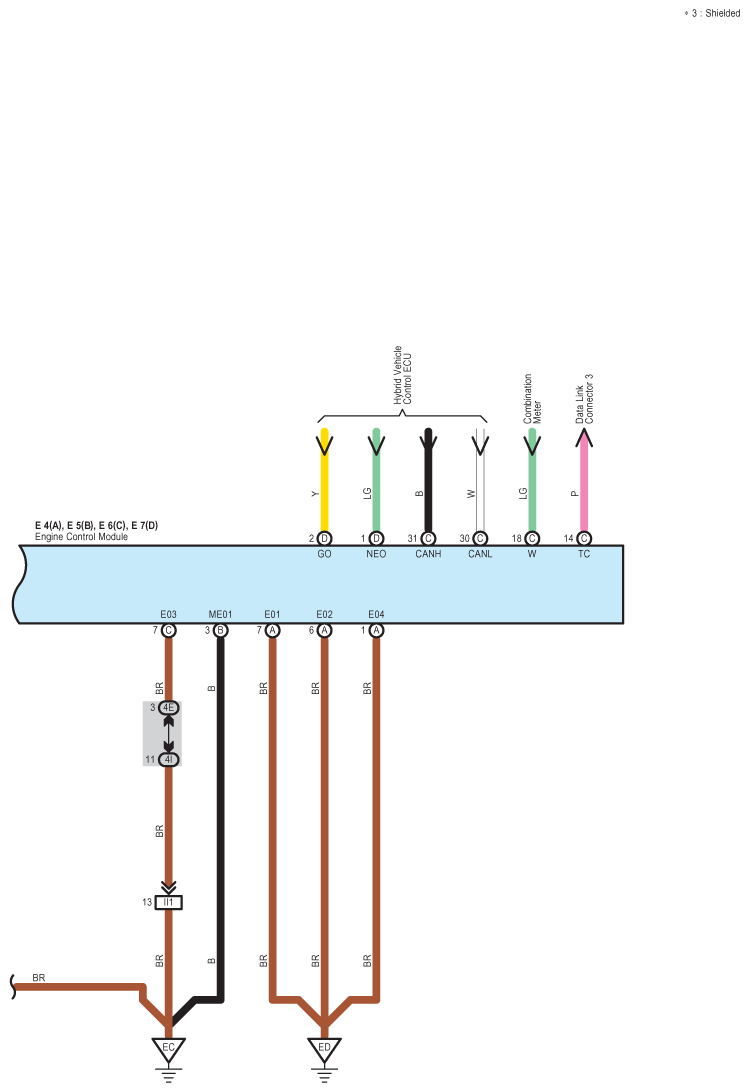

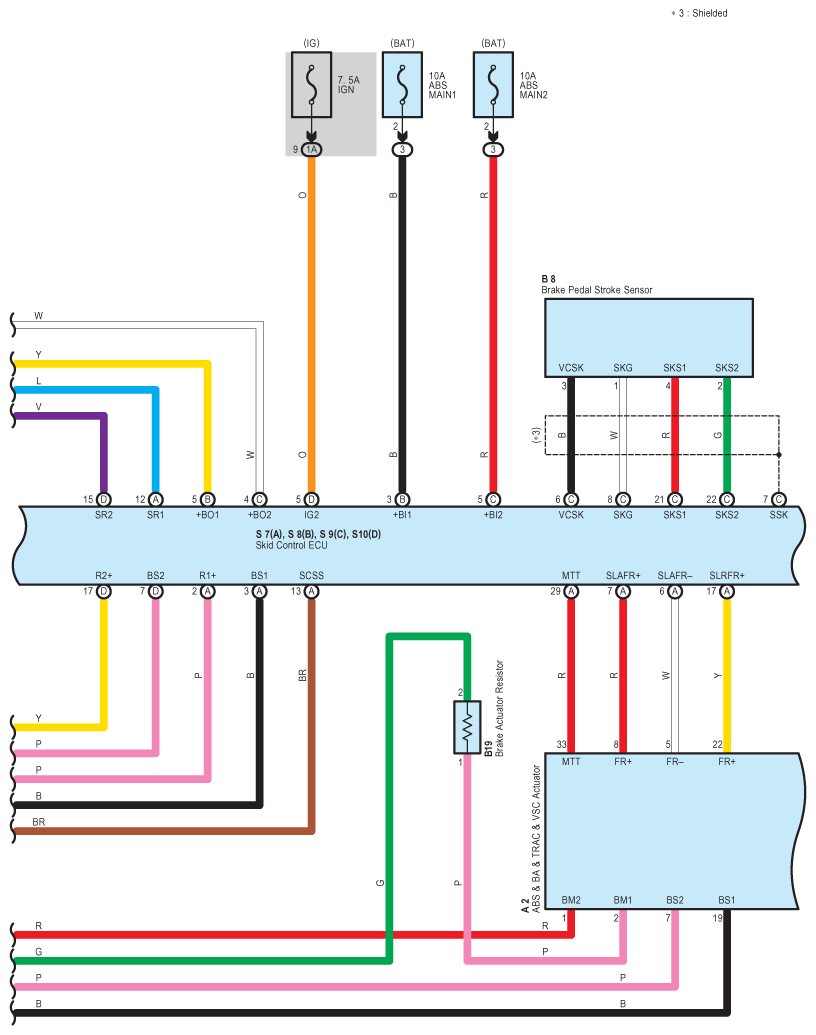

Fig 24: Toyota Hybrid System - Circuit Diagram (24 Of 27)

G07576986

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

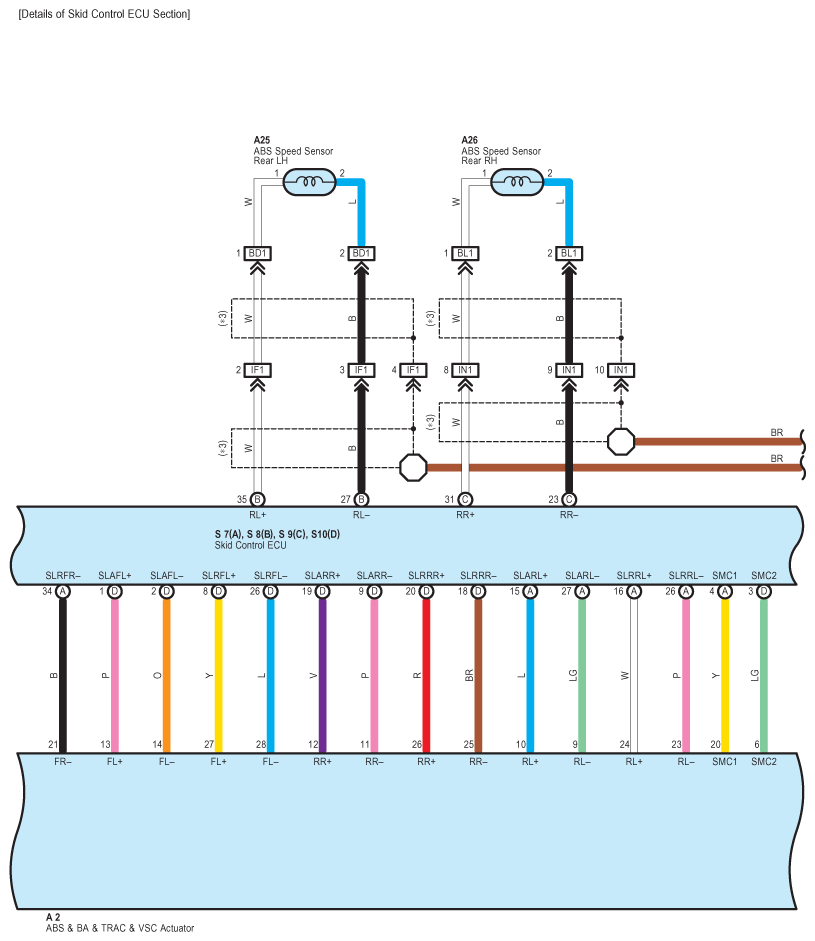

Fig 25: Toyota Hybrid System - Circuit Diagram (25 Of 27)

G07576987

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

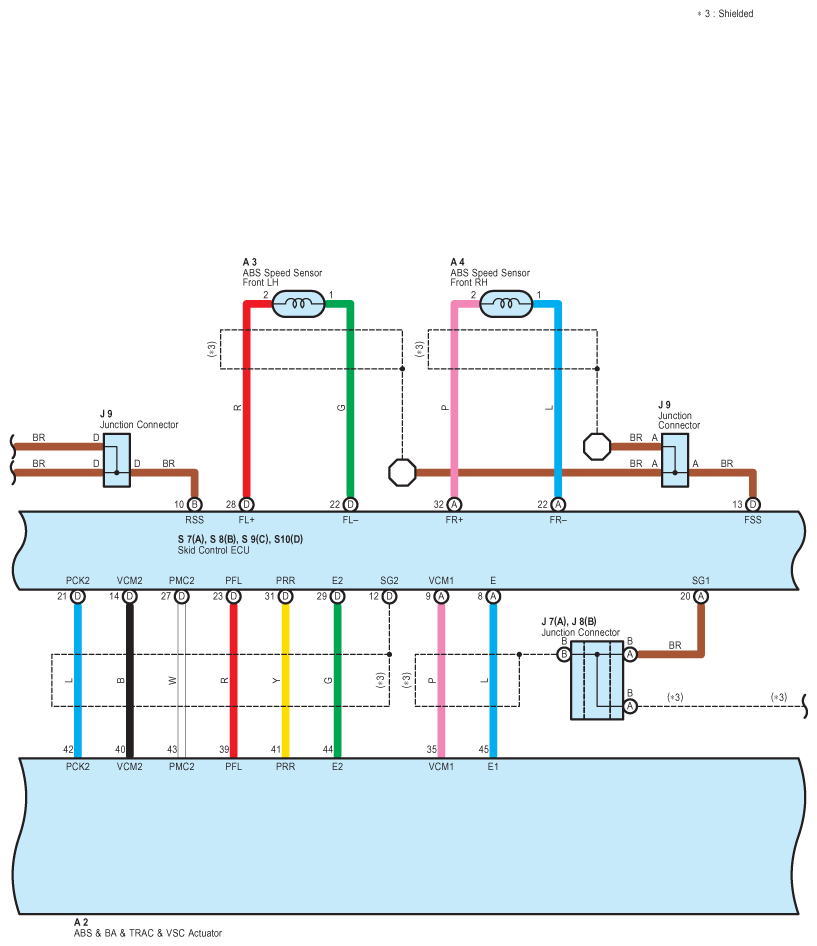

Fig 26: Toyota Hybrid System - Circuit Diagram (26 Of 27)

G07576988

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

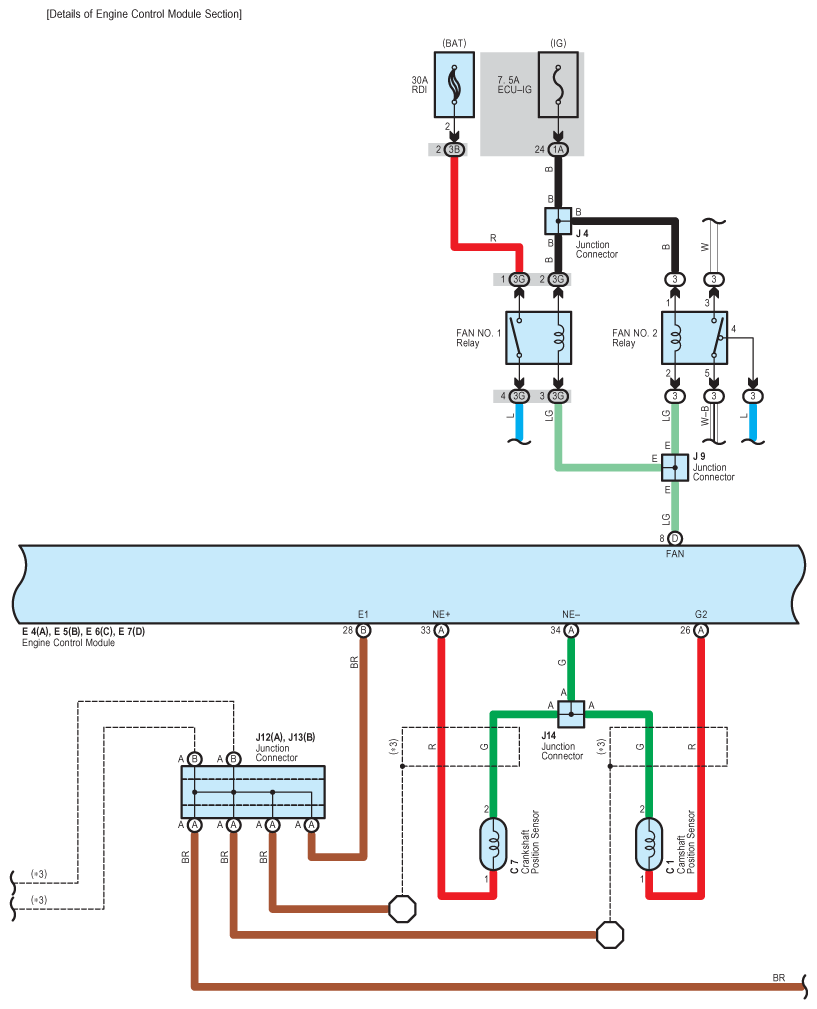

Fig 27: Toyota Hybrid System - Circuit Diagram (27 Of 27)

G07576989

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
